2 Front/10 Rear NEMA 5-15R, 1U, 120V AC, 50/60Hz
Description

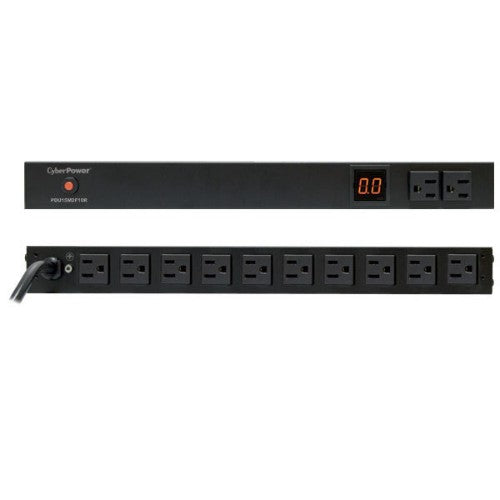

The CyberPower 12-outlet (2 Front and 10 Rear) rack mount metered power distribution unit (PDU15M2F10R) provides 120V 15A output. It distributes power to 12 NEMA 5-15R receptacles from a single NEMA 5-15P input, with unfiltered electrical pass-through. The current draw for connected equipment is displayed in amps on the front LCD for real-time load monitoring. Designed for datacenters and other electrically demanding applications, this unit has a rugged, industrial-grade metal housing and a 15-foot AC power cord. It can be mounted either horizontally or vertically, includes a cord retention tray and is ETL/RoHS certified. A lifetime warranty ensures that this PDU is free of defects in design, assembly, material or workmanship.
- 12 NEMA 5-15R (2 Front/10 Rear) output receptacles
- 15-amp electrical capacity with circuit breaker
- 120V AC - 50/60Hz
- 1U rack mount
- Front LCD for real-time load monitoring
- 15-ft. power cord
Specifications
| Design |
|---|
| PDU types |
Metered |
| Mounting |
Horizontal/Vertical |
| Display |
LCD |
| Product colour |
Black |
| Certification |
UL1363 ETL, CSA C22.2 |
| Rack capacity |
1U |
| Ports & interfaces |
|---|
| AC outlets quantity |
12 AC outlet(s) |
| AC outlet types |
NEMA 5–15R |
| Power plug |
NEMA 5–15P |
| Features |
|---|
| Cable length |
179.9" (4.57 m) |
| Certification |
UL1363 ETL, CSA C22.2 |
| Management features |
|---|
| Monitoring |
Current |
| Ergonomics |
|---|
| Cable length |
179.9" (4.57 m) |
| Display |
LCD |
| Power |
|---|
| Nominal input voltage |
120 V |
| Nominal output voltage |
120 V |
| Power protection features |
Overload |
| Maximum current |
15 A |
| AC input frequency |
50 - 60 Hz |
| Certificates |
|---|
| Certification |
UL1363 ETL, CSA C22.2 |
| Compliance certificates |
RoHS |
| Operational conditions |
|---|
| Operating temperature (T-T) |
0 - 35 °C |
| Storage temperature (T-T) |
-15 - 45 °C |
| Operating relative humidity (H-H) |
0 - 95% |
| Operating altitude |
0 - 118110.2" (0 - 3000 m) |
| Non-operating altitude |
0 - 590551.2" (0 - 15000 m) |
| Weight & dimensions |
|---|
| Weight (imperial) |
4 lbs |
| Dimensions (W x D x H) (imperial) |
17.5 x 2.25 x 1.75" |
| Technical details |
|---|
| Compliance certificates |
RoHS |
