CyberPower Smart App Intelligent LCD uninterruptible power supply (UPS) 2.19 kVA 1650 W 8 AC outlet(s)

2190VA, 1650W, 2060 J, 8 x NEMA 5-20R, 1 x USB, 2 x Serial, LCD Display, RJ11 / RJ45 / RG6, SNMP / HTTP, EMI/RFI, 2U Rackmount/Tower

Description

The CyberPower Smart App Intelligent LCD OR2200LCDRTXL2U uninterruptible power supply (UPS) safeguards internetworking hardware, telecom equipment, workstations and home entertainment systems that do not have active PFC power supplies. Its full automatic voltage regulation (AVR) boost/buck topology delivers a consistent and clean AC power, protecting connected equipment and preventing costly business interruptions.

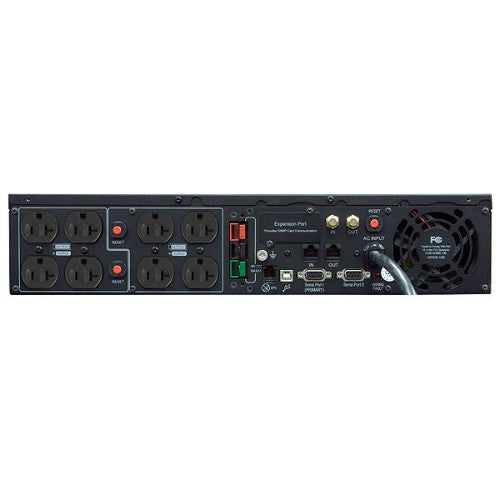

The OR2200LCDRTXL2U unit has a capacity of 2190VA/1650Watts, eight (8) NEMA 5-20R receptacles and four (4) maintenance-free, user-replaceable 12V/9Ah batteries. The rotatable front LCD panel displays all major UPS vitals for ease of use. This unit offers connectivity via one (1) HID USB and two (2) DB9 serial ports. Protection for phone/network (RJ11/RJ45) and cable/coax (RG-6) is included. EMI/RFI filters increase the immunity of the load to noise disturbances.

This UPS unit incorporates microprocessor-based digital control and includes PowerPanel Business Edition providing the user unsurpassed flexibility and control. An optional SNMP / HTTP Remote Management adapter (RMCARD202) supports remote management and control of the OR2200LCDRTXL2U through a standard web browser. A Three-Year Warranty ensures that this UPS has passed our highest quality standards in design, assembly, material or workmanship and further protection is offered by a $300,000 Connected Equipment Guarantee.

This unit requires a NEMA 5-20R outlet.

The OR2200LCDRTXL2U allows for the addition of up to ten (10) BP48V75ART2U external battery packs to increase the runtime of the unit. The battery packs are easy to plug-in and can be "hot-swapped" to maintain system uptime during normal UPS maintenance.

Specifications

Power
Output power	1650 W
Input operation voltage (min)	90 V
Input operation voltage (max)	140 V
Output operation voltage (min)	110 V
Output operation voltage (max)	130 V
Surge energy rating	2060 J
Output power capacity	2.19 kVA
Ports & interfaces
Cable length	118.1" (3 m)
AC outlets quantity	8 AC outlet(s)
AC outlet types	NEMA 5–20R
USB 2.0 ports quantity	1
Serial ports quantity	2
Modem (RJ-11) ports	1
Ethernet LAN (RJ-45) ports	1
Battery
Battery type	12 V, 9 Amph
Battery technology	Sealed Lead Acid (VRLA)
Battery recharge time	8 h
Typical backup time at half load	14 min
Typical backup time at full load	6 min
Hot-swap battery	Yes
Performance
LED indicators	Yes
EMI/RFI noise filtering	Yes
Surge protection	Yes
Surge protection features	Coax, Network, Telephone
Power protection features	Overload
Audible alarm(s)	Yes
Features
Output power	1650 W
Input operation voltage (min)	90 V
Input operation voltage (max)	140 V
Output operation voltage (min)	110 V
Output operation voltage (max)	130 V
Surge energy rating	2060 J
EMI/RFI noise filtering	Yes
Surge protection	Yes
Surge protection features	Coax, Network, Telephone
Power protection features	Overload
Audible alarm(s)	Yes
Output power capacity	2.19 kVA
Design
Rack capacity	2U
Form factor	Rackmount/Tower
LED indicators	Yes
Product colour	Black
Certification	UL1778, cUL 107.3, FCC DOC Class B
Cable length	118.1" (3 m)
Display type	LCD
Operational conditions
Operating temperature (T-T)	0 - 35 °C
Operating relative humidity (H-H)	0 - 90%
Technical details
Compliance certificates	RoHS
Certificates
Certification	UL1778, cUL 107.3, FCC DOC Class B
Compliance certificates	RoHS
Weight & dimensions
Weight	66.1 lbs (30 kg)
Width	17" (431.8 mm)
Height	3.5" (88.9 mm)
Depth	18.8" (477.5 mm)
Packaging data
Bundled software	PowerPanel BusinessEd
Other features
Battery type	12 V, 9 Amph
Management platform	SNMP, HTTP
Packaging content
Bundled software	PowerPanel BusinessEd
