1500VA, 1050W, 8 x NEMA 5-15R Out, 1 x USB, 1 x DB9, 1 x EPO, SNMP / HTTP, EMI/RFI Filters, Mini-Tower, LCD
Description

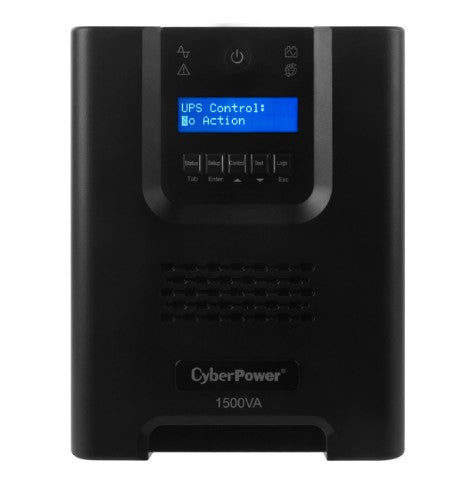

Smart App UPS | Network and ServersThe CyberPower Smart App Sinewave PR1500LCD mini-tower uninterruptible power supply (UPS) with LCD control panel and pure sine wave output is Active PFC compatible for safeguarding mission-critical servers, telecom equipment, VoIP and internetworking hardware that require seamless pure sine wave power. Its full Automatic Voltage Regulation (AVR) boost/buck technology delivers a consistent and clean AC power, protecting connected equipment and preventing costly business interruptions. Patented GreenPower UPS advanced circuitry reduces UPS energy costs by up to 75% compared to competitive models.

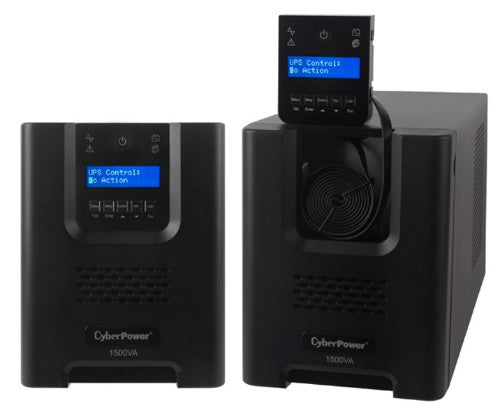

The LCD control panel provides 41 different settings to check status and customize the operating settings for the PR1500LCD, plus it can be removed and mounted separately from the UPS for ease of use regardless of where the UPS is installed. Functions include menus for checking power status on (11) different parameters, (23) settings for setup and control of the UPS, (3) battery test & calibration options, and (4) selections in the Log menu. With its attached cable the LCD control panel can be removed from the UPS and relocated up to 4.5ft. away from the UPS for ease of viewing when installed in hard to reach locations.

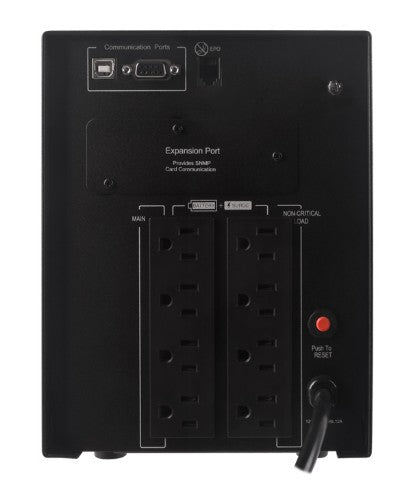

The PR1500LCD unit has a capacity of 1500VA/1050Watts, six (6) NEMA 5-15R receptacles and two (2) maintenance-free, user-replaceable 12V/17AH batteries. This unit offers connectivity via one (1) HID USB, one (1) DB9 serial and one (1) emergency power off (EPO) port. EMI/RFI filters increase the immunity of the load to noise disturbances.
This UPS unit incorporates microprocessor-based fully digital control and includes PowerPanel Business Edition providing the user unsurpassed flexibility and control. An optional SNMP / HTTP Remote Management adapter (RMCARD202) supports remote management and control of the PR1500LCD through a standard web browser. A Three-Year Warranty ensures that this UPS has passed our highest quality standards in design, assembly, material or workmanship and further protection is offered by a $375,000 Connected Equipment Guarantee.
Specifications
| Power |
|---|
| Output power |
1050 W |
| Input operation voltage (min) |
75 V |
| Input operation voltage (max) |
154 V |
| Surge energy rating |
1030 J |
| Emergency Power Off (EPO) |
Yes |
| Output power capacity |
1.5 kVA |
| Input frequency |
47/63 Hz |
| Ports & interfaces |
|---|
| Cable length |
70.9" (1.8 m) |
| AC outlets quantity |
8 AC outlet(s) |
| AC outlet types |
NEMA 5–15R |
| USB 2.0 ports quantity |
1 |
| Serial ports quantity |
1 |
| Battery |
|---|
| Battery type |
12V/17AH |
| Battery technology |
Sealed Lead Acid (VRLA) |
| Number of battery cells |
2 |
| Battery recharge time |
8 h |
| Typical backup time at half load |
24 min |
| Typical backup time at full load |
8 min |
| Hot-swap battery |
Yes |
| Performance |
|---|
| Audible alarm modes |
Battery replacement |
| UPS topology |
Line-Interactive |
| LED indicators |
Yes |
| EMI/RFI noise filtering |
Yes |
| Surge protection |
Yes |
| Power protection features |
Overload |
| Audible alarm(s) |
Yes |
| Features |
|---|
| Audible alarm modes |
Battery replacement |
| UPS topology |
Line-Interactive |
| Output power |
1050 W |
| Input operation voltage (min) |
75 V |
| Input operation voltage (max) |
154 V |
| Surge energy rating |
1030 J |
| EMI/RFI noise filtering |
Yes |
| Surge protection |
Yes |
| Emergency Power Off (EPO) |
Yes |
| Power protection features |
Overload |
| Audible alarm(s) |
Yes |
| Output power capacity |
1.5 kVA |
| Input frequency |
47/63 Hz |
| Design |
|---|
| LED indicators |
Yes |
| Product colour |
Black |
| Certification |
UL1778, cUL 107.3, FCC DOC Class A |
| Cable length |
70.9" (1.8 m) |
| Display type |
LCD |
| Operational conditions |
|---|
| Operating temperature (T-T) |
0 - 40 °C |
| Operating relative humidity (H-H) |
0 - 90% |
| Technical details |
|---|
| Compliance certificates |
RoHS |
| Certificates |
|---|
| Certification |
UL1778, cUL 107.3, FCC DOC Class A |
| Compliance certificates |
RoHS |
| Weight & dimensions |
|---|
| Weight |
54 lbs (24.5 kg) |
| Width |
6.7" (170.2 mm) |
| Height |
8.7" (221 mm) |
| Depth |
17" (431.8 mm) |
| Other features |
|---|
| Battery type |
12V/17AH |
| Overload protection |
Yes |
| Nominal output voltage |
120 V |
| Nominal input voltage |
120 V |
| Management platform |
SNMP/HTTP |
