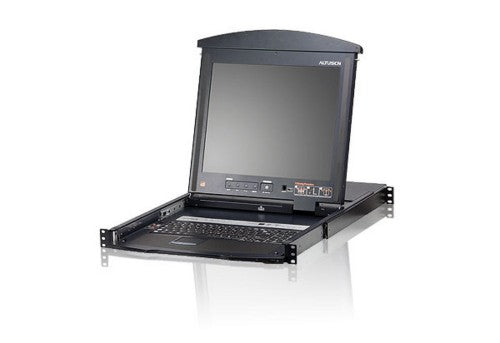

ATEN KL1508AN KVM switch Black

8-Port 19" LCD CAT5e/6 KVM Switch (Dual Rail)

Description

Features

- Integrated KVM console with 17" or 19" LCD monitor in a Dual Rail housing
- A single console controls up to 8 computers
- Space-Saving RJ-45 connectors and Cat 5e/6 cabling
- KVM adapter cables* designed with automatic conversion to allow flexible interface combinations (PS/2, USB, Sun and serial) to control all computer types
- OSD tree structure makes finding and managing computers easy
- Conveniently located station and port selectors with LED displays to quickly switch to target computers
- Dual Rail housing is slightly less than 1U with top and bottom clearance for smooth operationmm in 1U of rack space
- Extra console port - manage computers in the LCD KVM switch from an external console
- (monitor, USB or PS/2 keyboard, and USB or PS/2 mouse)
- Supports external USB mouse
- Dual Rail - LCD monitor slides independently of the keyboard/touchpad
- LCD module rotates up to 120 degrees for a more comfortable viewing angle
- Console lock - enables the console drawer to remain securely locked away in position when not in use
- Dedicated Hotkey Mode and OSD Invocation Keys reduce the number of keystrokes and provide quick access to these functions
- Daisy chain up to 31 additional KVM switches to control up to 256 computers
- Auto Scan mode enables continuous monitoring of user-selected computers
- Multiplatform support: PC, Mac, Sun and Serial
- Superior Video Quality- Supports the video resolutions up to 1600x1200@60Hz for up to 40 meters, and 1280x1024@75 Hz for up to 50 meters
- Configure port access rights for users on a port - by - port basis
- Three port selection methods: Manual (via front panel pushbuttons), Hotkey, and multi-language OSD (On Screen Display)
- Multiple User Accounts -Supports up to 10 user and 1 administrator accounts
- Two-Level Password Security- Supports one administrator and ten user profiles. Strong password protection prevents unauthorized accessing to the installation
- LCD power button helps save energy and prolong displays’ life
- Broadcast Mode sends commands from the console to all computers – allowing you to perform operations (such as software installation, upgrades, shutdowns, etc.), on them simultaneously
- Adapter ID
- Firmware Upgradeable

Package Contents

- 1x KL1508A 8-Port Cat 5 High-Density Dual Rail LCD KVM Switch with Standard Rack Mount Kit
- 1x Firmware Upgrade Cable
- 1x 1ADP-0005-005G Power Cord
- 1x User Instructions

Specifications

Ports & interfaces
Number of computers controlled	8
Keyboard port type	USB, PS/2
Mouse port type	USB, PS/2
Network
Ethernet LAN	Yes
Performance
Maximum resolution	1600 x 1200 pixels
Technical details
Product colour	Black
Sustainability certificates	RoHS
Compliance certificates	RoHS
Design
Product colour	Black
Display
Built-in display	Yes
Display	LCD
Power
AC input frequency	50 - 60 Hz
Input voltage	100-240 V
Video
Maximum resolution	1600 x 1200 pixels
Sustainability
Sustainability certificates	RoHS
Compliance certificates	RoHS
Operational conditions
Operating temperature (T-T)	0 - 40 °C
Storage temperature (T-T)	-20 - 60 °C
Weight & dimensions
Width	19" (482 mm)
Depth	29.9" (760 mm)
Height	1.73" (44 mm)
Weight	40.3 lbs (18.3 kg)
