OR1500PFCRT2U, 1500VA, 900W, 2U, USB, 2x Serial
Description
The CyberPower Smart App Intelligent LCD OR1500PFCRT2U uninterruptible power supply (UPS) with pure sine wave safeguards networking hardware, networked-based devices, small office servers, workstations and telecom equipment that use conventional and Active Power Factor Correction (PFC) power supplies. Its automatic voltage regulation (AVR) topology delivers clean and consistent AC power, protecting connected equipment and preventing costly business interruptions.
CyberPower's OR1500PFCRT2U, with pure sine wave, solves the critical compatibility issues of non-Sinewave UPS products working with computing systems using Active PFC power supplies (ENERGY STAR 5.0). With PC manufacturers adopting high-efficiency Active PFC power supplies—your equipment may be at risk. CyberPower's innovative UPS technology is an affordable solution that ensures equipment utilizing Active PFC power supplies do not unexpectedly shutdown when switching from AC power to UPS battery power.

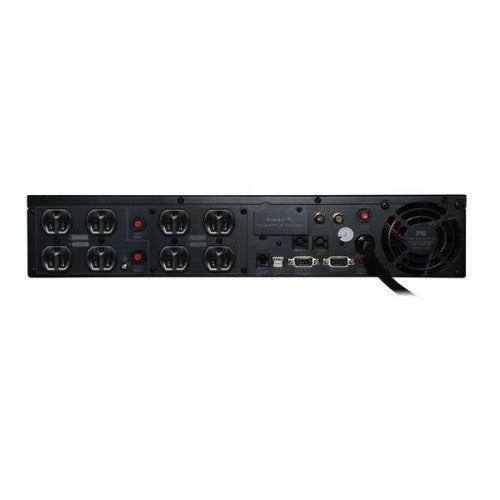

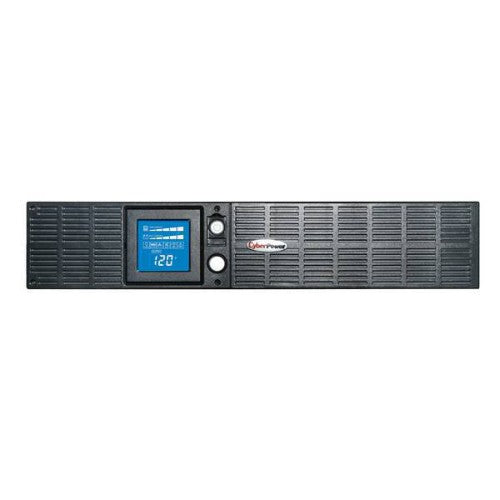

The OR1500PFCRT2U unit has a capacity of 1500VA/900Watts, eight (8) NEMA 5-15R receptacles and four (4) maintenance-free, user-replaceable 12V/7Ah batteries. The rotatable front LCD panel displays all major UPS vitals for ease of use. This unit offers connectivity via one (1) HID USB and two (2) DB9 serial ports. Protection for phone/network (RJ11/RJ45) and cable/coax (RG-6) is included. EMI/RFI filters increase the immunity of the load to noise disturbances.
This UPS incorporates microprocessor-based digital control and includes PowerPanel® Business Edition providing the user unsurpassed flexibility and agent/client control of up to 25 clients. The addition of an optional SNMP/Network card allows for remote management via web browser or network management system (NMS). A Three-Year Warranty ensures that this UPS has passed our highest quality standards in design, assembly, material or workmanship and further protection is offered by a $200,000 Connected Equipment Guarantee.
Specifications
| Power |
|---|
| Output power |
900 W |
| Surge energy rating |
1840 J |
| Emergency Power Off (EPO) |
Yes |
| Output power capacity |
1.5 kVA |
| Input frequency |
47/63 Hz |
| Ports & interfaces |
|---|
| Cable length |
118.1" (3 m) |
| USB 2.0 ports quantity |
1 |
| Serial ports quantity |
2 |
| Modem (RJ-11) ports |
1 |
| Ethernet LAN (RJ-45) ports |
1 |
| Battery |
|---|
| Battery type |
12V/7AH |
| Battery technology |
Sealed Lead Acid (VRLA) |
| Battery recharge time |
8 h |
| Typical backup time at half load |
21 min |
| Typical backup time at full load |
7 min |
| Hot-swap battery |
Yes |
| Replacement battery cartridge |
BP7-12/SH1228WFR |
| Performance |
|---|
| UPS topology |
Line-Interactive |
| Response time |
4 ms |
| Audible alarm(s) |
Yes |
| Features |
|---|
| UPS topology |
Line-Interactive |
| Response time |
4 ms |
| Output power |
900 W |
| Surge energy rating |
1840 J |
| Emergency Power Off (EPO) |
Yes |
| Audible alarm(s) |
Yes |
| Output power capacity |
1.5 kVA |
| Input frequency |
47/63 Hz |
| Design |
|---|
| Product colour |
Black |
| Certification |
UL1778, cUL 107.3, FCC DOC B, RoHS |
| Cable length |
118.1" (3 m) |
| Display type |
LCD |
| Operational conditions |
|---|
| Operating temperature (T-T) |
0 - 35 °C |
| Operating relative humidity (H-H) |
0 - 90% |
| Certificates |
|---|
| Certification |
UL1778, cUL 107.3, FCC DOC B, RoHS |
| Weight & dimensions |
|---|
| Weight |
55.6 lbs (25.2 kg) |
| Packaging data |
|---|
| Bundled software |
PowerPanel Business Edition |
| Other features |
|---|
| Battery type |
12V/7AH |
| Dimensions (WxDxH) |
17 x 3.5 x 15.3" (431.8 x 88.9 x 388.6 mm) |
| Operating temperature (T-T) |
32 - 95 °F |
| Weight (imperial) |
55.5 lbs |
| Dimensions (W x D x H) (imperial) |
17 x 3.5 x 15.3" |
| Packaging content |
|---|
| Bundled software |
PowerPanel Business Edition |
