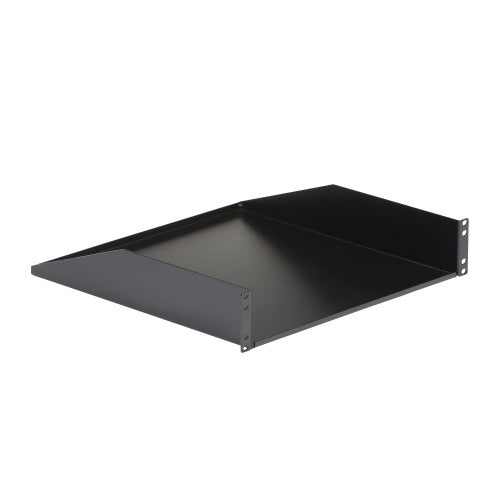

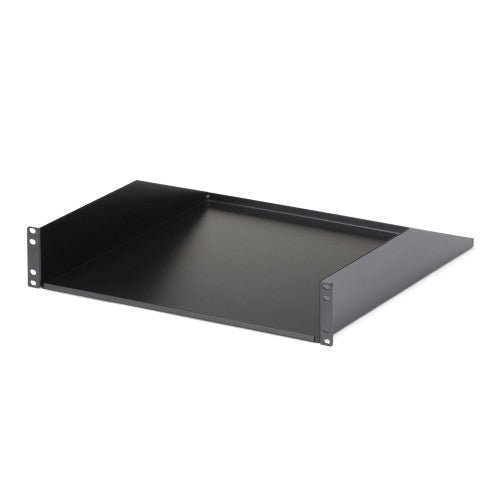

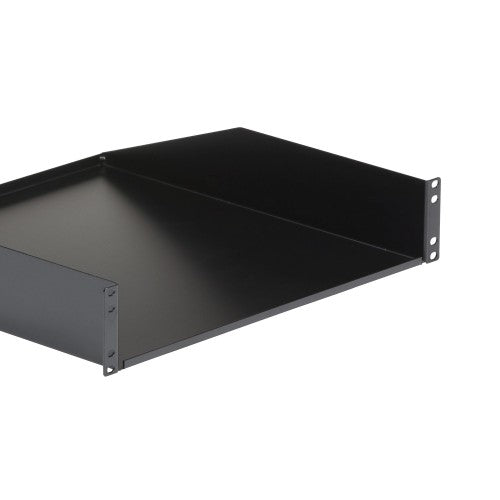

StarTech.com 2U Server Rack Shelf - Universal Rack Mount Cantilever Shelf for 19" Network Equipment Rack & Cabinet - Heavy Duty Steel – Weight Capacity 125lb/56kg - 18" Deep Tray, Black (CABSHELFHD)
Key Features
- TAA compliant for GSA Schedule purchases
- UNIVERSAL 19" FIT: This 2U server rack shelf is designed to fit any 19” wide server rack or enclosure including major brands like APC, Dell, Lenovo, HPE and can accommodate your data, IT, networking or other equipment up to 18” (46cm) deep
- HEAVY-DUTY & DURABLE DESIGN: Constructed with SPCC commercial cold-rolled steel, the sturdy front mounted cabinet shelf ensures long term durability and supports a total weight of 125lbs/56kg making it the perfect rack shelf solution for any environment
- FLEXIBLE INSTALLATION: The rack mount cantilever shelf can be mounted in 2 orientations, install the shelf with the front shelf lip downwards or mount with the lip upwards to prevent your computer, AV or other equipment & accessories from sliding off
- VERSATILE FUNCTIONALITY: At 18in deep, this fixed rackmount shelf is designed to work with any 19 inch cabinet or equipment rack; it provides additional storage space for mission critical hardware, and can even store your tools or audio/video accessories
- INDUSTRY-LEADING SUPPORT: Backed for life by StarTech.com and free lifetime technical support on this TAA compliant 2U solid server rack shelf/tray, and has been the choice of IT professionals and businesses for over 30 years
Description

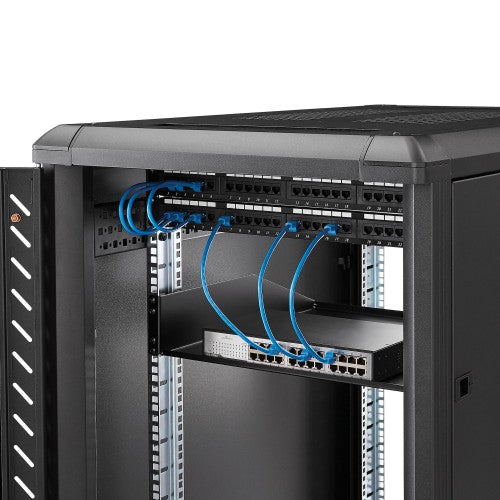

Add a high-capacity fixed shelf into almost any server rack or cabinet
The CABSHELFHD 2U 18in Depth Heavy Duty Fixed Rack Mount Shelf lets you add a high-capacity 2U shelf to virtually any standard 19-inch server rack or cabinet with front mount options.
This high-capacity server rack shelf is constructed using SPCC commercial grade cold-rolled steel, providing the additional strength required to hold up to 56kg (125lbs) of equipment - a perfect solution for storing larger, non-rackmount pieces of equipment, heavy tools or peripherals in your rack or cabinet.
The StarTech.com Advantage
Specifications
| Features |
|---|
| Certification |
CE, TAA, REACH |
| Type |
Shelf |
| Rack capacity |
2U |
| Maximum weight capacity |
124.8 lbs (56.6 kg) |
| Product colour |
Black |
| Harmonized System (HS) code |
85389099 |
| Housing material |
Steel |

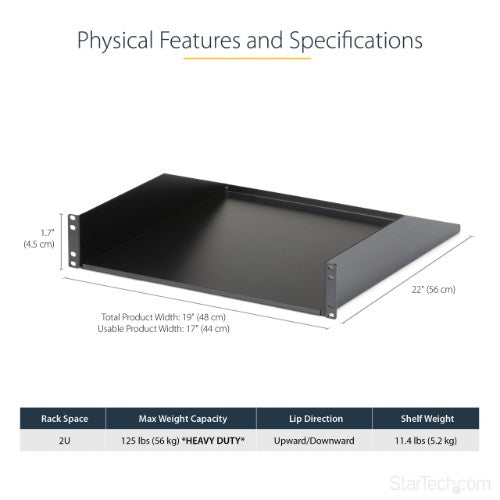

| Weight & dimensions |
|---|
| Package width |
19.8" (502 mm) |
| Package height |
4.65" (118 mm) |
| Package depth |
20" (508 mm) |
| Package weight |
13.9 lbs (6.3 kg) |
| Material thickness |
0.0906" (2.3 mm) |
| Weight |
11.5 lbs (5.2 kg) |
| Depth |
18" (457.2 mm) |
| Maximum weight capacity |
124.8 lbs (56.6 kg) |
| Packaging data |
|---|
| Package width |
19.8" (502 mm) |
| Package height |
4.65" (118 mm) |
| Package depth |
20" (508 mm) |
| Package weight |
13.9 lbs (6.3 kg) |

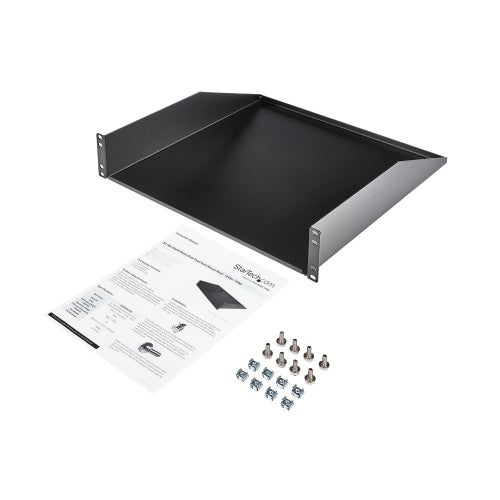

| Packaging content |
|---|

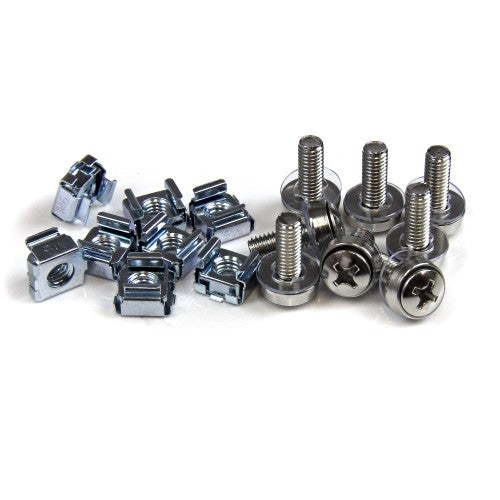

| Screws included |
Yes |
| Nuts included |
Yes |
| Number of screws |
8 |
| Number of nuts |
8 |
| Quick installation guide |
Yes |
| Screw type |
M6 |
| Technical details |
|---|
| Type |
Shelf |
| Rack capacity |
2U |
| Compliance certificates |
RoHS |
| Colour |
|---|
| Product colour |
Black |
| Logistics data |
|---|
| Master (outer) case width |
19.8" (502 mm) |
| Master (outer) case length |
20" (508 mm) |
| Master (outer) case height |
4.65" (118 mm) |
| Products per master (outer) case |
1 pc(s) |
| Harmonized System (HS) code |
85389099 |
