Rackbar Surge Protection, 1U, 120V AC - 50/60Hz, 12 NEMA 5-15R, Black
Description

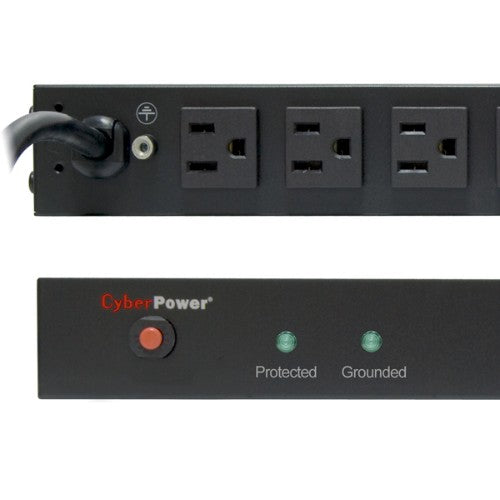

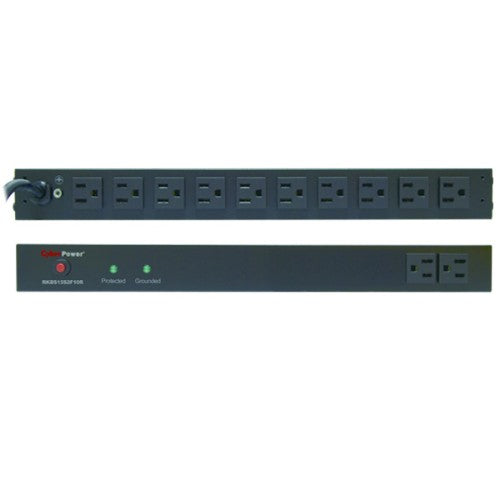

The CyberPower 12-outlet (2 Front and 10 Rear) rack mounted Rackbar surge suppressor (RKBS15S2F10R) provides 120V 15A output and a surge suppression rating of 3,600 joules. It distributes power to 12 NEMA 5-15R receptacles from a single NEMA 5-15P plug. Designed for datacenters and other electrically demanding applications, this unit has a rugged, industrial-grade metal housing and a 15-foot AC power cord. It can be mounted either horizontally or vertically, includes a cord retention tray and is ETL/RoHS certified. A lifetime warranty and $150,000 Connected Equipment Guarantee ensures the Rackbar surge suppressor is free of defects in design, assembly, material or workmanship.
Specifications
| Power |
|---|
| Surge energy rating |
3600 J |
| AC outlets quantity |
12 AC outlet(s) |
| AC outlet types |
NEMA 5–15R |
| Nominal input voltage |
120 V |
| AC input frequency |
50 - 60 Hz |
| Ports & interfaces |
|---|
| Cable length |
179.9" (4.57 m) |
| Features |
|---|
| Rack mounting |
Yes |
| EMI/RFI noise filtering |
Yes |
| EMI/RFI noise filtering |
50 dB |
| On/off switch |
Yes |
| Product colour |
Black |
| Technical details |
|---|
| Weight (imperial) |
4.02 lbs |
| Compliance certificates |
RoHS |
| Weight & dimensions |
|---|
| Cable length |
179.9" (4.57 m) |
| Operational conditions |
|---|
| Operating temperature (T-T) |
0 - 35 °C |
| Storage temperature (T-T) |
-15 - 45 °C |
| Operating relative humidity (H-H) |
0 - 95% |
| Operating altitude |
0 - 118110.2" (0 - 3000 m) |
| Non-operating altitude |
0 - 590551.2" (0 - 15000 m) |
| Certificates |
|---|
| Certification |
UL1363 UL1449, CSA C22.2 |
| Indication |
|---|
| LED indicators |
Yes |
| Other features |
|---|
| Width (imperial) |
1.75" |
| Height (imperial) |
17.5" |
| Depth (imperial) |
2.25" |
