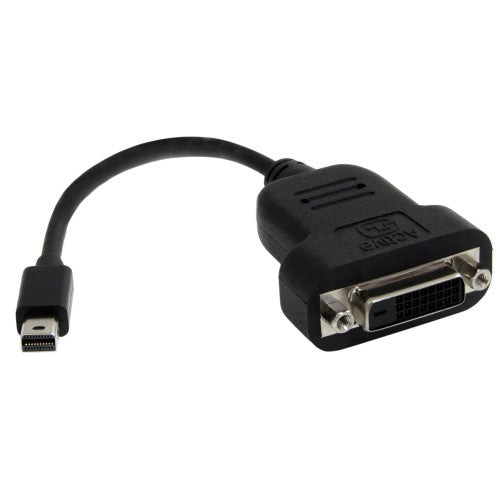

StarTech.com Mini DisplayPort to DVI Adapter - Active Mini DisplayPort to DVI-D Adapter Converter - 1080p Video - mDP or Thunderbolt 1/2 Mac/PC to DVI Monitor Dongle, mDP to DVI Single-Link (MDP2DVIS)
Key Features
- ACTIVE MINI DISPLAYPORT TO DVI ADAPTER: Mini DisplayPort 1.2 (HBR2) to DVI-D (digital only) single-link adapter connects a DVI display/projector supporting 1920x1200/1080p 60Hz video; EDID/DDC pass-through ensure compatibility between source & display
- HOST COMPATIBILITY: Active video converter supports mDP/mDP++ source including Thunderbolt 1 & 2 MacBooks, MacBook Air & Mac Mini, Microsoft Surface Pro 1-6, desktops (AMD FirePro/NVidia Quadro), laptops, mini itx computers, Intel NUC & docks
- INCREASE PRODUCTIVITY: Connect a DVI monitor or projector, or add a second display to your workstation using the mDP to DVI adapter dongle / Compact design / 5.7"" (15cm) attached cable / Supports Apple Cinema Display HD
- SCREW LOCKING DVI: Mini DisplayPort to DVI display adapter supports DVI screw locking cable to prevent cable from coming loose or accidental disconnection from DVI displays/projectors / Tested with DVI cables up to 25ft / mDP male to DVI female connector
- EASY TO USE: With no software or drivers required, the Mini DP to DVI converter works with any OS including Windows, Ubuntu and macOS; Compatible with MiniDP devices like TB1/TB2 MacBooks with Mini DisplayPort
Description
Connect a DVI monitor to a single-mode DisplayPort output from your computer
The MDP2DVIS Mini DisplayPort to DVI Active Adapter (single-link) let's you connect your Mini DisplayPort video source (such as any of your MacBook® or Microsoft® Surface™ Pro devices with mDP) to a DVI-D display, including televisions and Apple Cinema Display HD, eliminating the expense of having to upgrade to a DisplayPort capable monitor.
Unlike passive video adapters, this Mini DisplayPort to DVI adapter offers an active conversion for use with any Mini DisplayPort output - ideal for graphics cards that are not capable of outputting multi-mode DP++ signals (e.g. ATI Eyefinity).
Supporting resolutions up to 1920x1200, this compact device provides a simple solution for adapting PC or Mac® Mini-DisplayPort output for DVI monitors, televisions or projectors.
The Mini DP to DVI adapter is compatible with Intel® Thunderbolt™, when connected directly to a supporting DisplayPort over Thunderbolt™ I/O port.
Backed by a StarTech.com 3-year warranty and free lifetime technical support.
The StarTech.com Advantage
Specifications
| Features |
|---|
| Converter type |
Active video converter |
| DisplayPort version |
1.2 |
| Product colour |
Black |
| Cable length |
4.72" (0.12 m) |
| Connector 1 |
Mini DisplayPort |
| Connector 2 |
DVI-D |
| Connector 1 gender |
Male |
| Connector 2 gender |
Female |
| Jacket material |
Low smoke zero halogen (LSZH) |
| Maximum resolution |
1920 x 1200 pixels |
| HDCP |
Yes |
| Plug and Play |
Yes |
| Connector 1 form factor |
Straight |
| Connector 2 form factor |
Straight |
| Dual Link DVI |
No |
| Maximum refresh rate |
60 Hz |
| HDCP version |
1.3 |
| Operational conditions |
|---|
| Operating temperature (T-T) |
0 - 70 °C |
| Storage temperature (T-T) |
0 - 70 °C |
| Certificates |
|---|
| Compliance certificates |
CE, RoHS |
| Other features |
|---|
| Width |
1.73" (44 mm) |
| Height |
0.787" (20 mm) |
| Depth |
7.87" (200 mm) |
| Weight & dimensions |
|---|
| Width |
1.73" (44 mm) |
| Height |
0.787" (20 mm) |
| Depth |
7.87" (200 mm) |
| Weight |
1.34 oz (38 g) |
| Package width |
7.87" (200 mm) |
| Package depth |
8.66" (220 mm) |
| Package height |
0.748" (19 mm) |
| Package weight |
1.66 oz (47 g) |
| Packaging data |
|---|
| Package width |
7.87" (200 mm) |
| Package depth |
8.66" (220 mm) |
| Package height |
0.748" (19 mm) |
| Package weight |
1.66 oz (47 g) |
| Quantity per pack |
1 pc(s) |
| Packaging content |
|---|
| Quantity per pack |
1 pc(s) |
| Technical details |
|---|
| Harmonized System (HS) code |
84733080 |
| Compliance certificates |
CE, RoHS |
| Logistics data |
|---|
| Master (outer) case width |
19.5" (495 mm) |
| Master (outer) case length |
13.3" (339 mm) |
| Master (outer) case height |
8.66" (220 mm) |
| Products per master (outer) case |
90 pc(s) |
| Harmonized System (HS) code |
84733080 |
