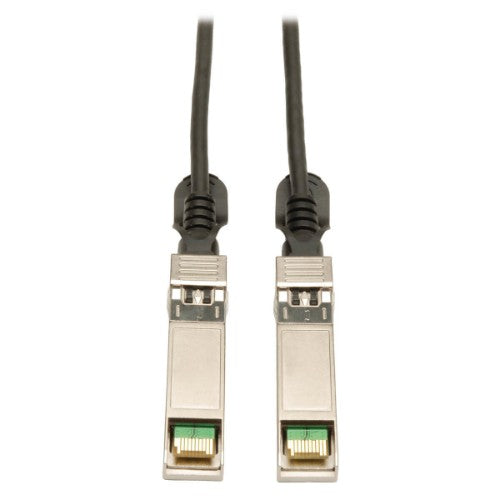

SFP+ 10Gbase-CU Passive Twinax Copper Cable, SFP-H10GB-CU1M Compatible, Black, 1M (3.28 ft.)
Key Features
- 1 m. (3 ft.) 30AWG SFP+ High Speed Passive Copper 10Gbps Cable
- Fully compliant to MSA SFF-8431 specification
- Equivalent to Cisco SFP-H10GB-CU1M (See the Support tab on this web page for additional cross references)
- Low Cost alternative to Fiber Optic
Description
1 m. (3 ft.) 30Awg SFP+ High Speed Passive Copper 10Gbps Cable
Fully compliant to MSA SFF-8431 specification
Equivalent to Cisco SFP-H10GB-CU1M
Use in 10Gbps Ethernet and Fibre Channel applications
100ohm Twinaxial cable, Diecast metal shells, pull-to-release latching
Support for 1x, 2x, 4x and 8x Fiber Channel data rates
Hot-Pluggable SFP 20PIN footprint
Low power consumption
Specifications
| Features |
|---|
| Connector 1 |
SFP+ |
| Connector 2 |
SFP+ |
| Connector contacts plating |
Copper |
| Cable length |
39.4" (1 m) |
| Product colour |
Black |
| Connector 2 gender |
Male |
| Connector 1 gender |
Male |
| Data transfer rate |
10000 Mbit/s |
| InfiniBand protocol |
Yes |
| Country of origin |
China |
| Harmonized System (HS) code |
84733080 |
| Certificates |
|---|
| Compliance certificates |
RoHS |
| Packaging data |
|---|
| Package width |
10.5" (266.7 mm) |
| Package depth |
0.5" (12.7 mm) |
| Package height |
12" (304.8 mm) |
| Package weight |
3.17 oz (90 g) |
| Technical details |
|---|
| Connector 1 |
SFP+ |
| Connector 2 |
SFP+ |
| Connector contacts plating |
Copper |
| Cable length |
39.4" (1 m) |
| Master (outer) case GTIN (EAN/UPC) |
10037332178111 |
| Compliance certificates |
RoHS |
| Weight & dimensions |
|---|
| Cable length |
39.4" (1 m) |
| Package width |
10.5" (266.7 mm) |
| Package depth |
0.5" (12.7 mm) |
| Package height |
12" (304.8 mm) |
| Package weight |
3.17 oz (90 g) |
| Logistics data |
|---|
| Master (outer) case width |
14.6" (370.8 mm) |
| Master (outer) case length |
9.2" (233.7 mm) |
| Master (outer) case height |
3.6" (91.4 mm) |
| Master (outer) case gross weight |
2.38 lbs (1.08 kg) |
| Products per master (outer) case |
10 pc(s) |
| Country of origin |
China |
| Harmonized System (HS) code |
84733080 |
| Master (outer) case GTIN (EAN/UPC) |
10037332178111 |
