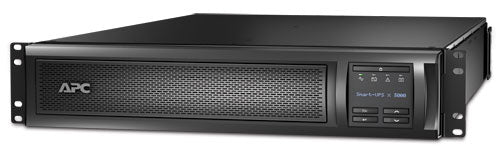

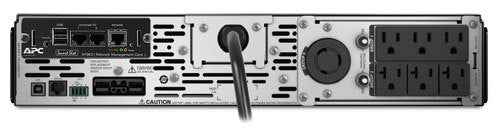

Smart-UPS X 3000VA Rack/Tower LCD 100-127V with Network Card
Description
Intuitive LCD interface
Provides clear and accurate information in multiple languages with the ability to configure the UPS locally with easy to use navigation keys.
High frequency design
Reduces or eliminates bulky transformers resulting in lighter units for ease of handling.
Auto recognition of external batteries
UPS recognizes when external battery packs are attached and automatically adjusts runtime.
Predictive replace battery date
Dynamically provides the month and year when battery replacement is recommended to aide in long term maintenance planning.
Green mode
Patent-pending operating mode that bypasses unused electrical components in good power conditions to achieve very high operating efficiency without sacrificing any protection.
Energy meter
Provides actual kilowatt hours of usage for energy conscious users.
Outlet group control
Turn on/off, reboot or shut down select outlet groups to save dispatching technicians to remote locations (for UPSs with switched outlet groups).
Sequenced shutdown and restart
Configure select outlet groups to shut down and turn on in a pre-determined order (for UPSs with switched outlet groups).
Load shedding
Turn off select outlet groups in a pre-determined sequence to shed less critical equipment and conserve runtime (UPSs with switched outlet groups).
InfraStruXure Central compatible
Enables centralized management via APC InfraStruXure® Central.
Pure sine wave output on battery
Simulates utility power to provide the highest degree of compatibility for active PFC (power factor corrected) servers and sensitive electronics.
Multiple switched outlet groups
Multiple outlet groups that may be controlled separately from the UPS for discrete reboot of hung devices, sequenced on/off and non-critical load shedding.
Wide input voltage range
Designed for harsh electrical environments to save battery life.
Battery failure notification
Provides early-warning fault analysis on batteries enabling timely preventive maintenance.
Specifications
| Power |
|---|
| Output power |
2700 W |
| Input operation voltage (min) |
75 V |
| Input operation voltage (max) |
154 V |
| Output operation voltage (min) |
120 V |
| Output operation voltage (max) |
120 V |
| Surge energy rating |
540 J |
| Efficiency |
98% |
| Emergency Power Off (EPO) |
Yes |
| Output voltage Total Harmonic Distortion (THD) |
5% |
| Output power capacity |
3 kVA |
| Input frequency |
50/60 Hz |
| Battery |
|---|
| Battery type |
APCRBC117 |
| Battery technology |
Sealed Lead Acid (VRLA) |
| Battery recharge time |
3 h |
| Performance |
|---|
| LED indicators |
Yes |
| Noise level |
55 dB |
| Features |
|---|
| Output power |
2700 W |
| Input operation voltage (min) |
75 V |
| Input operation voltage (max) |
154 V |
| Output operation voltage (min) |
120 V |
| Output operation voltage (max) |
120 V |
| Surge energy rating |
540 J |
| Efficiency |
98% |
| Emergency Power Off (EPO) |
Yes |
| Output voltage Total Harmonic Distortion (THD) |
5% |
| Noise level |
55 dB |
| Output power capacity |
3 kVA |
| Input frequency |
50/60 Hz |
| Ports & interfaces |
|---|
| AC outlets quantity |
7 AC outlet(s) |
| AC outlet types |
NEMA 5–15R, NEMA 5–20R |
| Design |
|---|
| Rack capacity |
2U |
| Form factor |
Rackmount/Tower |
| LED indicators |
Yes |
| Product colour |
Black |
| Certification |
BSMI,CSA,EN 50091-2,EN 55022 A,FCC 15 A,NOM,TUV,UL 1778,VCCI A |
| Operational conditions |
|---|
| Operating temperature (T-T) |
0 - 40 °C |
| Storage temperature (T-T) |
-15 - 45 °C |
| Operating relative humidity (H-H) |
0 - 95% |
| Storage relative humidity (H-H) |
0 - 95% |
| Operating altitude |
0 - 118110.2" (0 - 3000 m) |
| Non-operating altitude |
0 - 590551.2" (0 - 15000 m) |
| Technical details |
|---|
| Compliance certificates |
RoHS |
| Packaging data |
|---|
| Package dimensions (WxDxH) |
23.5 x 34.2 x 9.57" (596 x 869 x 243 mm) |
| Package weight |
100.1 lbs (45.4 kg) |
| Certificates |
|---|
| Certification |
BSMI,CSA,EN 50091-2,EN 55022 A,FCC 15 A,NOM,TUV,UL 1778,VCCI A |
| Compliance certificates |
RoHS |
| Weight & dimensions |
|---|
| Weight |
84.9 lbs (38.5 kg) |
| Width |
17" (432 mm) |
| Package weight |
100.1 lbs (45.4 kg) |
| Height |
3.35" (85 mm) |
| Depth |
26.3" (667 mm) |
| Other features |
|---|
| Interface |
SmartSlot |
| Battery type |
APCRBC117 |
| Package dimensions (WxDxH) |
23.5 x 34.2 x 9.57" (596 x 869 x 243 mm) |
| Nominal output voltage |
120 V |
| Nominal input voltage |
120 V |
