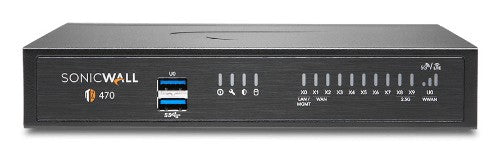

SonicWall TZ470 hardware firewall Desktop 3.5 Gbit/s

2 Gbps IPS, 8 x 1 GbE, 2 x 2.5 GbE

Description

TZ SERIES
NEXT-GENERATION FIREWALL (NGFW)

Protect your small business or branch location from intrusion, malware and ransomware with an easy-to-use, integrated security solution designed specifically for your needs. SonicWall TZ firewalls deliver enterprise-grade protection without the cost or complexity.

‘Single-pane-of-glass’ Management & Reporting
Manage everything from one location with Network Security Manager, a unified firewall management system that scales for any environment.

SD-WAN and Zero-Touch Deployment Capabilities
SonicWall Secure SD-WAN integrates with TZ firewalls without requiring an additional license, and scales quickly with Zero-Touch Deployment capability.

Deep Memory Inspection
Block even the most advanced attacks with Real-Time Deep Memory Inspection (RTDMI™) and Capture Advanced Threat Protection (ATP).

SSL/TLS Decryption and Inspection
Leverage industry-leading decryption and inspection of TLS/SSL-encrypted traffic in real time, along with TLS 1.3 support.

Superior Performance and Features
Get advanced threat protection at lightning speeds without compromising on performance. The latest generation of TZ firewalls offer expandable storage, redundant power, SonicExpress App onboarding, and more.

Integrated Security Solution
Choose optional PoE and Wi-Fi options with deep integration of SonicOS operating system to deliver an integrated gateway security solution.

Specifications

Data transmission
IPS/IDS throughput	2000 Mbit/s
Maximum firewall connections per second	12000
Maximum firewall connections	1000000
SSL inspection throughput	600 Mbit/s
IPSec VPN throughput	1.5 Gbit/s
Threat protection throughput	1500 Mbit/s
Firewall throughput	3.5 Gbit/s
Performance
Heat dissipation	68.03 BTU/h
Network
VPN tunnels quantity	150
Local user database	250
Quality of Service (QoS) support	Yes
DHCP server	Yes
Security
DDoS protection	Yes
Protocols
Supported network protocols	TCP/IP, UDP, ICMP, HTTP, HTTPS, IPSec, ISAKMP/IKE, SNMP, DHCP, PPPoE, L2TP, PPTP, RADIUS
Management features
LED indicators	Yes
Management platform	SonicOS 7.0
URL filtering	Yes
Ports & interfaces
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	2
SFP+ module slots quantity	2
Connectivity technology	Wired
WAN connection	Ethernet (RJ-45)
Ethernet LAN (RJ-45) ports	8
Ethernet LAN data rates	1000 Mbit/s
Console port	RJ-45
Number of console ports	1
Design
Form factor	Desktop
Power
AC input voltage	100-240 V
AC input frequency	50/60 Hz
Input current	3 A
Power supply	36 W
Power consumption (max)	19.95 W
Operational conditions
Operating temperature (T-T)	0 - 40 °C
Operating relative humidity (H-H)	5 - 95%
Weight & dimensions
Weight	29.3 oz (830 g)
Width	1.38" (35 mm)
Depth	5.31" (135 mm)
Height	7.48" (190 mm)
Packaging data
Package weight	3.15 lbs (1.43 kg)
Technical details
Form factor	Desktop
Heat dissipation	68.03 BTU/h
Features
SSL inspection throughput	600 Mbit/s
