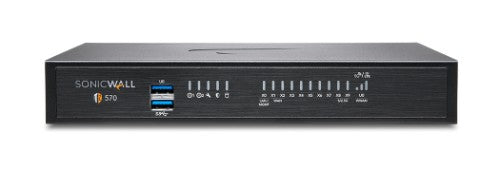

SonicWall TZ570 hardware firewall Desktop 4 Gbit/s

2.5 Gbps IPS, 8 x 1 GbE, 2 x 5 GbE

Key Features

• Get lightning-fast performance with security processors optimized for speed
• Gain a deeper level of threat prevention through Real-Time Deep Memory Inspection (RTDMI™)
• Leverage shared threat intelligence for continuously updated security
• Rely on a wide range of rich features in SonicWall’s powerful SonicOS operating system
• Leverage multi-core, parallel-processing hardware architecture
• Achieve fast performance using gigabit and multi-gigabit Ethernet interfaces
• Take advantage of single-pass, stream-based inspection
• Inspect simultaneous network streams using deep packet inspection
• Get your firewall up and running quickly with Zero-Touch Deployment
• Grow your distributed network while lowering costs with Secure SD-WAN
• Power your PoE-enabled devices with integrated PoE/PoE+ support
• Gain insight into and control over application usage across the network
• Access resources behind the firewall remotely and securely using native 802.11ac wireless SSL VPN
• Connect from virtually any operating system
• Detect and remove hidden threats over the VPN connection

Description

TZ SERIES
NEXT-GENERATION FIREWALL (NGFW)

Protect your small business or branch location from intrusion, malware and ransomware with an easy-to-use, integrated security solution designed specifically for your needs. SonicWall TZ firewalls deliver enterprise-grade protection without the cost or complexity.

‘Single-pane-of-glass’ Management & Reporting
Manage everything from one location with Network Security Manager, a unified firewall management system that scales for any environment.

SD-WAN and Zero-Touch Deployment Capabilities
SonicWall Secure SD-WAN integrates with TZ firewalls without requiring an additional license, and scales quickly with Zero-Touch Deployment capability.

Deep Memory Inspection
Block even the most advanced attacks with Real-Time Deep Memory Inspection (RTDMI™) and Capture Advanced Threat Protection (ATP).

SSL/TLS Decryption and Inspection
Leverage industry-leading decryption and inspection of TLS/SSL-encrypted traffic in real time, along with TLS 1.3 support.

Superior Performance and Features
Get advanced threat protection at lightning speeds without compromising on performance. The latest generation of TZ firewalls offer expandable storage, redundant power, SonicExpress App onboarding, and more.

Integrated Security Solution
Choose optional PoE and Wi-Fi options with deep integration of SonicOS operating system to deliver an integrated gateway security solution.

Specifications

Data transmission
IPS/IDS throughput	2500 Mbit/s
Maximum firewall connections per second	25000
SSL inspection throughput	750 Mbit/s
IPSec VPN throughput	1.8 Gbit/s
Threat protection throughput	2000 Mbit/s
Firewall throughput	4 Gbit/s
Performance
Mean time between failures (MTBF)	384819.181 h
Heat dissipation	44.7 BTU/h
Network
Wi-Fi	No
VPN tunnels quantity	200
Local user database	250
Quality of Service (QoS) support	Yes
Number of VLANs	256
DHCP server	Yes
Protocols
Routing protocols	BGP, OSPF, RIP-1, RIP-2
Management features
LED indicators	Yes
Ports & interfaces
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	2
SFP+ module slots quantity	2
Gigabit Ethernet (copper) ports quantity	8
Connectivity technology	Wired
WAN connection	Ethernet (RJ-45)
Ethernet LAN (RJ-45) ports	8
Ethernet LAN data rates	1000,5000 Mbit/s
Console port	RJ-45
Number of console ports	1
Design
Form factor	Desktop
Built-in display	No
Power
AC input voltage	100-240 V
AC input frequency	50/60 Hz
Redundant power supply (RPS) support	Yes
Operational conditions
Operating temperature (T-T)	0 - 40 °C
Storage temperature (T-T)	-40 - 70 °C
Operating relative humidity (H-H)	5 - 95%
Storage relative humidity (H-H)	5 - 95%
Technical details
Form factor	Desktop
Heat dissipation	44.7 BTU/h
Display
Built-in display	No
Endurance
Mean time between failures (MTBF)	384819.181 h
Features
SSL inspection throughput	750 Mbit/s
