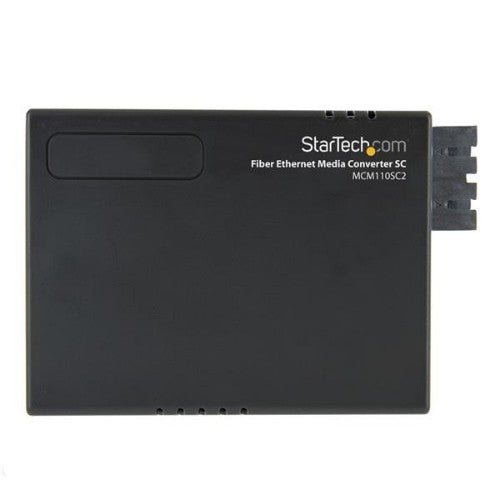

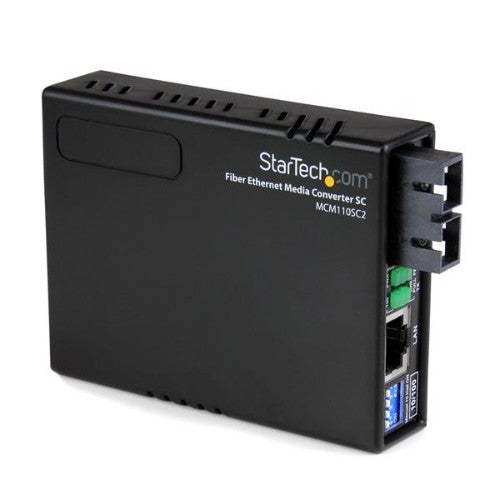

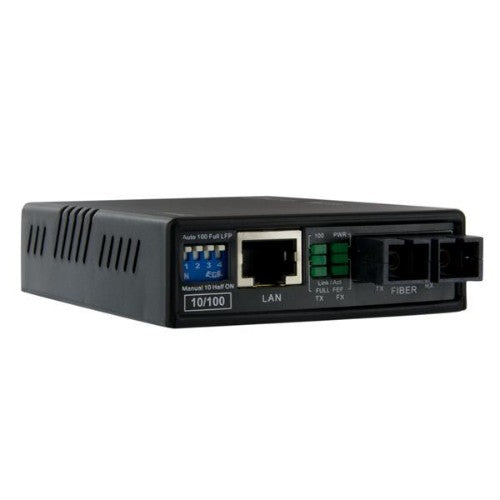

StarTech.com 10/100 Fiber to Ethernet Media Converter Multi Mode SC 2 km
Description
The MCM110SC2 10/100 Multi Mode Fiber Ethernet Media Converter SC 2 km creates an economical, cost-effective Ethernet-fiber link, transparently converting to/from 10Base-T or 100Base-Tx Ethernet signals and 100Base-Fx optical signals to extend an Ethernet network connection over an SC terminated multimode fiber backbone.
The converter supports a maximum multimode fiber optic cable distance of 2 kilometers (1.2 miles), providing a simple solution for connecting 10Base-T/100Base-Tx Ethernet networks to remote locations using SC-terminated multimode fiber, while delivering solid network performance and scalability.
This versatile Ethernet to Fiber converter is compatible with most 3COM™, Cisco™, Lucent™ and Nortel™ networks and fully complies with applicable IEEE 802.3 standards.
Backed by a StarTech.com 2-year warranty and free lifetime technical support.
The StarTech.com Advantage- Improve network scalability by increasing the distances between network points by up to 2km (Multi-mode)
- Compact, lightweight enclosure is easily mounted or placed into any location with little to no configuration needed
- Provides increased bandwidth and high data throughput by eliminating network bottlenecks and congestion
Specifications
| Network |
|---|
| Jumbo frames support |
Yes |
| Flow control support |
Yes |
| Auto-negotiation |
Yes |
| Jumbo frames |
9000 |
| Networking standards |
IEEE 802.1Q, IEEE 802.3, IEEE 802.3u |
| Ethernet LAN data rates |
10,100 Mbit/s |
| Duplex system |
Full, Half |
| Auto MDI/MDI-X |
Yes |
| Maximum data transfer rate |
100 Mbit/s |
| Fiber optic connector |
SC |
| Performance |
|---|
| Wavelength-division multiplexing (WDM) |
No |
| Wavelength |
1310 nm |
| Maximum transfer distance |
78740.2" (2000 m) |
| Fiber mode structure |
Multi-mode |
| Mean time between failures (MTBF) |
65000 h |
| Jumbo frames support |
Yes |
| Flow control support |
Yes |
| Auto-negotiation |
Yes |
| Features |
|---|
| Housing material |
Plastic |
| LED indicators |
Yes |
| Product colour |
Black |
| Internal |
No |
| Ports & interfaces |
|---|
| Connectivity technology |
Wired |
| Ethernet LAN (RJ-45) ports |
1 |
| Fiber ports quantity |
1 |
| Fiber optic connector |
SC |

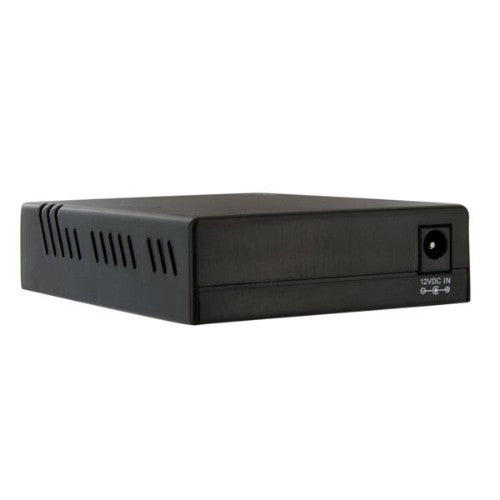

| DC-in jack |
Yes |
| Power |
|---|
| Power plug type |
Type M |
| Power over Ethernet (PoE) |
No |
| Input voltage |
115 V |
| Output voltage |
12 V |
| Output current |
0.2 A |
| Weight & dimensions |
|---|
| Width |
2.95" (75 mm) |
| Depth |
3.74" (95 mm) |
| Weight |
3.19 oz (90.5 g) |
| Height |
0.787" (20 mm) |
| Package depth |
5.83" (148 mm) |
| Package width |
2.48" (63 mm) |
| Package height |
5.71" (145 mm) |
| Package weight |
14.1 oz (400 g) |
| Operational conditions |
|---|
| Operating temperature (T-T) |
0 - 50 °C |
| Storage temperature (T-T) |
-10 - 70 °C |
| Operating relative humidity (H-H) |
10 - 90% |

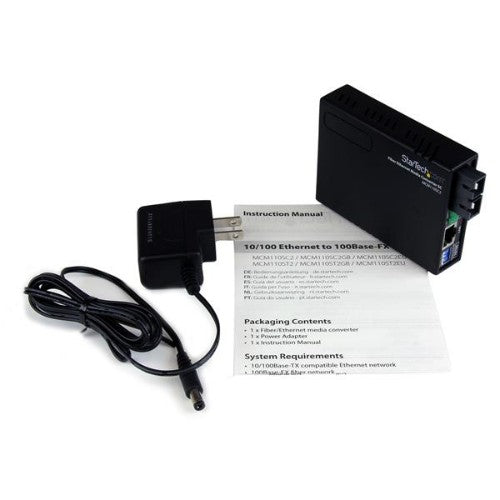

| Packaging content |
|---|
| AC adapter included |
Yes |
| Manual |
Yes |
| Packaging data |
|---|
| Package depth |
5.83" (148 mm) |
| Package width |
2.48" (63 mm) |
| Package height |
5.71" (145 mm) |
| Package weight |
14.1 oz (400 g) |
| Technical details |
|---|
| Housing material |
Plastic |
| Wavelength |
1310 nm |
| Maximum transfer distance |
78740.2" (2000 m) |
| Fiber mode structure |
Multi-mode |
| Internal |
No |
| Compliance certificates |
RoHS |
| Indication |
|---|
| LED indicators |
Yes |
| Design |
|---|
| Housing material |
Plastic |
| LED indicators |
Yes |
| Product colour |
Black |
| Certification |
CE, FCC |
| Internal |
No |
| Endurance |
|---|
| Mean time between failures (MTBF) |
65000 h |
| Colour |
|---|
| Product colour |
Black |
| Certificates |
|---|
| Certification |
CE, FCC |
| Compliance certificates |
RoHS |
