HPE Aruba Networking CX 5420 Management Module

HPE Aruba Networking CX 5420 Management Module, Managed, L3, Power over Ethernet (PoE), Rack mounting, 4U

Reasons To Buy

Future-ready with Superior Performance

The HPE Aruba Networking CX 5420 Switch Series use the latest Gen7 ASICs, delivering very low latency, increased packet buffering, and adaptive power consumption. All switching and routing are wire‑speed to meet the demands of bandwidth‑intensive applications today and in the future.

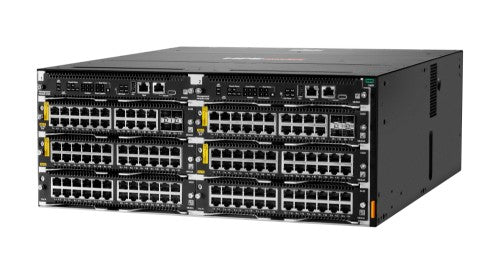

The CX 5420 switch is a compact 6 slot (4 RU) supporting a choice of line cards and redundant, half‑width management modules that seamlessly supports Wi-Fi 6 and IoT with Smart Rate multi-gigabit and 90W PoE ports.
High availability with HPE Aruba Networking Virtual Switching Extension (VSX) Live Upgrade provides high availability, non‑disruptive fast upgrades and simplified management, supporting redundant power supplies and N+1 redundant fans.
The series provides security-first networking with MACsec ^[1] capable line card modules delivering the enterprise-grade performance and security needs for small and medium campus, branch enterprise networks.

Simplified Operations and Management

The HPE Aruba Networking CX 5420 Switch Series is based on HPE Aruba Networking CX Switch Operating System (AOS-CX), a modern, database‑driven operating system that automates and simplifies many critical and complex network tasks.
The CX 5420 switch delivers unparalleled visibility with built-in analytics for real-time monitoring and troubleshooting to help fix problems faster. The HPE Aruba Networking Network Analytics Engine (NAE) automatically interrogates and analyzes events that can impact network health.
REST APIs, Python and CLI‑based agents for advanced telemetry, automation to easily identify, troubleshoot network, system, application and security related issues. The Time Series Database (TSDB) stores configuration and operational state data, making it available to resolve network issues quickly.
HPE Aruba Networking Switch Multi-Edit Software introduces automation that allows for rapid network-wide changes, and achieves policy conformance post network updates. Intelligent capabilities include search, edit, validation (including conformance checking), deployment, and audit features.
HPE Aruba Networking CX Mobile App simplifies connecting, stacking and managing CX 5420 switches. Switch information can be imported into HPE Aruba Networking Switch Multi-Edit Software for simplified configuration management and to continuously validate conformance of configurations in the network.

Secure and Scalable Segmentation

The HPE Aruba Networking CX 5420 Switch Series supports HPE Aruba Networking Dynamic Segmentation that automatically applies and enforces user, device, and application-aware policies on wired and wireless infrastructures.
Automated device profiling, role-based access control, and Layer 7 firewall features deliver enhanced visibility and performance for a better overall experience for both IT and end-users alike.
Dynamic Segmentation provides scale and flexibility in network design by allowing the stretching of VLANs and subnets across the entire network with VXLAN overlay fabric which use Group Based Policy tagging to transport source role.
Extended-Edge VTEP (EE VTEP) static VXLAN supports EE VTEP persona. Enable flexible L2 Fabric design with scale and consistent architecture with support of Group-Based-Policy and role-to-role security enforcement.

Description

HPE Aruba Networking CX 5420 Management Module. Switch type: Managed, Switch layer: L3. Switching capacity: 960 Gbit/s. Networking standards: IEEE 802.3bt. Power over Ethernet (PoE). Rack mounting, Form factor: 4U

Specifications

Management features
Switch type	Managed
Quality of Service (QoS) support	Yes
Switch layer	L3
Network
Networking standards	IEEE 802.3bt
10G support	Yes
Data transmission
Throughput	714 Mpps
Packet buffer memory	64 MB
Switching capacity	960 Gbit/s
Forwarding rate	160 Mpps
Protocols
Routing protocols	BGP, OSPF
Design
Form factor	4U
Product colour	Black
Rack mounting	Yes
Performance
Memory type	DDR4-SDRAM
Internal memory	16000 MB
Flash memory	32 MB
Packet buffer memory	64 MB
Power
Power supply included	No
AC input voltage	200 - 240 V
Power consumption (typical)	1000 W
Number of power supply units	4
Power source	AC/PoE
Power over Ethernet (PoE)
Power over Ethernet (PoE)	Yes
Operational conditions
Operating temperature (T-T)	0 - 45 °C
Weight & dimensions
Width	1.3" (33 mm)
Depth	8.39" (213 mm)
Height	9.02" (229 mm)
Weight	29.6 oz (839.1 g)
Technical details
Form factor	4U
Product colour	Black
Rack mounting	Yes
Memory
Packet buffer memory	64 MB
Memory type	DDR4-SDRAM
Internal memory	16000 MB
Flash memory	32 MB
Logistics data
Dangerous goods class	Class 8
