SmartRack 6U Low-Profile Switch-Depth Wall-Mount Mini Rack Enclosure, White
Key Features
- Maximum load capacity of 200 lb. (90.7 kg)
- Locking steel cabinet vented at sides, front, top and bottom
- Flow-through ventilation keeps equipment cool
- Secures 6U of 19 in. rack equipment up to 16.5 in. deep
- Mounts to wall or rolls on floor (with optional SRCASTER)
Description
The SRW6UW SmartRack® 6U Low-Profile Switch-Depth Wall-Mount Rack Enclosure Cabinet is designed to house EIA-standard 19-inch rack equipment in home and office network wiring closets, retail locations, classrooms and other areas with limited floor space where you need equipment to be secure, organized and out of the way. Constructed from heavy-duty steel with a durable white powder-coated finish, the cabinet has a maximum load capacity of 200 pounds (90.7 kilograms).
The side panels and front door lock securely to help prevent damage, tampering or theft. The front, top, bottom and removable side panels are vented, which allows air to flow freely and keep equipment cool. The reversible front door can open left or right by rotating the cabinet 180° before mounting. Convenient top and bottom ports allow easy cable routing.

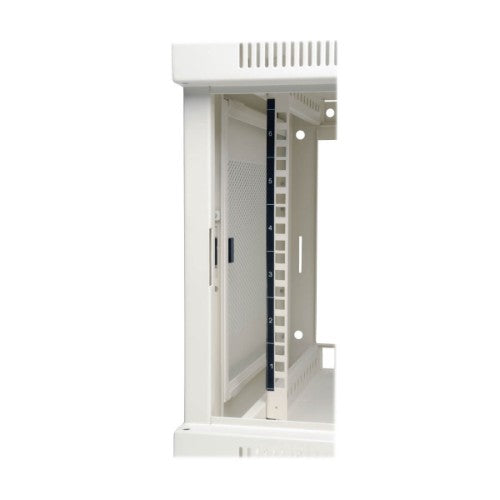

The SRW6UW comes fully assembled and ready to mount to the wall, or use the optional SRCASTER rolling caster kit (sold separately) to make it a mobile rack. Square and 12-24 threaded mounting holes and numbered rack spaces make equipment installation easy. The vertical mounting rails adjust in 7/8-inch increments to accommodate equipment up to 16.5 inches deep, such as network switches and patch panels.
Specifications
| Weight & dimensions |
|---|
| Package depth |
19.9" (505.5 mm) |
| Package width |
25.8" (655.3 mm) |
| Package height |
17.3" (439.4 mm) |
| Package weight |
33.1 lbs (15 kg) |
| Width |
23.5" (596.9 mm) |
| Depth |
17.5" (444.5 mm) |
| Height |
14.5" (368.3 mm) |
| Weight |
29.1 lbs (13.2 kg) |
| Maximum weight capacity |
200 lbs (90.7 kg) |
| Packaging content |
|---|
| Wall mounting kit |
Yes |
| Manual |
Yes |
| Features |
|---|
| Rack capacity |
6U |
| Type |
Wall mounted rack |
| Maximum weight capacity |
200 lbs (90.7 kg) |
| Product colour |
White |
| Certification |
EIA-310-E, RoHS |
| Packaging data |
|---|
| Wall mounting kit |
Yes |
| Manual |
Yes |
| Package depth |
19.9" (505.5 mm) |
| Package width |
25.8" (655.3 mm) |
| Package height |
17.3" (439.4 mm) |
| Package weight |
33.1 lbs (15 kg) |
| Technical details |
|---|
| Package width |
25.8" (655.3 mm) |
| Package height |
17.3" (439.4 mm) |
| Type |
Wall mounted rack |
| Harmonized System (HS) code |
8517.79.0000 |
| Rack capacity |
6U |
| Colour |
|---|
| Product colour |
White |
| Certificates |
|---|
| Certification |
EIA-310-E, RoHS |
| Logistics data |
|---|
| Master (outer) case width |
25.8" (655.3 mm) |
| Master (outer) case length |
19.9" (505.5 mm) |
| Master (outer) case height |
17.3" (439.4 mm) |
| Master (outer) case gross weight |
39 lbs (17.7 kg) |
| Products per master (outer) case |
1 pc(s) |
| Country of origin |
China |
| Harmonized System (HS) code |
8517.79.0000 |
