688 Mbps (2.4 GHz) + 2882 Mbps (5 GHz), IEEE 802.11 a/b/g/n/ac/ax/be, 160 x 160 x 36.7 mm
Key Features
- BE5000 Dual-Band Wi-Fi 7 (2882 Mbps on 5 GHz + 688 Mbps on 2.4 GHz)
- 1× 2.5G port unlocks the full potential of Wi-Fi 7
- 240 MHz bandwidth enables many more simultaneous transmissions
- Multi-RUs ensure the high performance of your network
- Advanced Functions: Centralized management, Mesh, and Seamless Roaming
Description

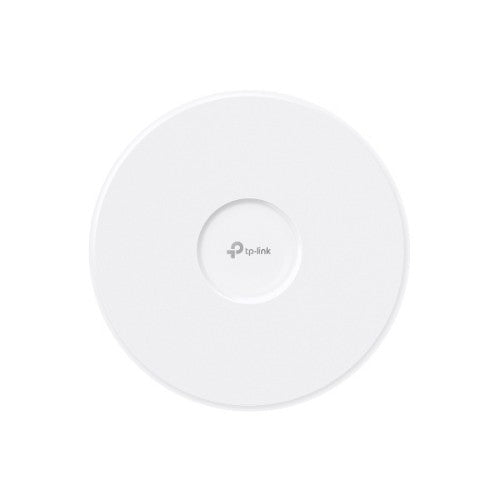

BE5000 Compact Business WiFi 7 Access PointOptimized Wired Performance with 2.5G PoE+ Port
With a 2.5 GbE Port, EAP723 delivers remarkable multi-gigabit performance for higher bandwidth and faster WiFi. Compatibility with 802.3at PoE is ideal for flexible deployment.
Boosted Network Security- Secure Guest Network with up to 16 SSIDs
- Boost Your Business with SMS Login
- WPA3 for Worry-Free Open Public Networks
- Rogue AP Detection
Specifications
| Data transmission |
| Maximum data transfer rate |
3600 Mbit/s |
| Performance |
| 2.4 GHz |
Yes |
| 5 GHz |
Yes |
| Automatic channel selection |
Yes |
| Syslog |
Yes |
| Reset button |
Yes |
| Bandwidth |
2.4 GHz |
| Spread spectrum method |
OFDMA |
| Frequency band |
2.4 - 5 GHz |
| Web-based management |
Yes |
| VLAN support |
Yes |
| Rate limiting |
Yes |
| Quality of Service (QoS) support |
Yes |
| Networking standards |
IEEE 802.11a, IEEE 802.11ac, IEEE 802.11ax, IEEE 802.11be, IEEE 802.11g, IEEE 802.11n |
| Maximum data transfer rate |
3600 Mbit/s |
| MIMO type |
Multi User MIMO |
| MIMO |
Yes |
| Band steering |
Yes |
| Airtime Fairness (ATF) |
Yes |
| Wireless LAN features |
| Frequency band |
2.4 - 5 GHz |
| Network |
| Spread spectrum method |
OFDMA |
| Networking standards |
IEEE 802.11a, IEEE 802.11ac, IEEE 802.11ax, IEEE 802.11be, IEEE 802.11g, IEEE 802.11n |
| Bandwidth |
| Bandwidth |
2.4 GHz |
| Management features |
| VLAN support |
Yes |
| Rate limiting |
Yes |
| Quality of Service (QoS) support |
Yes |
| Syslog |
Yes |
| Web-based management |
Yes |
| Features |
| 6 GHz |
No |
| 2.4 GHz |
Yes |
| 5 GHz |
Yes |
| Automatic channel selection |
Yes |
| Bandwidth |
2.4 GHz |
| Spread spectrum method |
OFDMA |
| Frequency band |
2.4 - 5 GHz |
| VLAN support |
Yes |
| Rate limiting |
Yes |
| Quality of Service (QoS) support |
Yes |
| Networking standards |
IEEE 802.11a, IEEE 802.11ac, IEEE 802.11ax, IEEE 802.11be, IEEE 802.11g, IEEE 802.11n |
| Maximum data transfer rate |
3600 Mbit/s |
| MIMO type |
Multi User MIMO |
| MIMO |
Yes |
| Band steering |
Yes |
| Airtime Fairness (ATF) |
Yes |
| Maximum data transfer rate (2.4 GHz) |
688 Mbit/s |
| Maximum data transfer rate (5 GHz) |
2882 Mbit/s |
| Fit AP mode features |
Mesh networking |
| BeamForming |
Yes |
| Security |
| Security algorithms |
SNMP, SNMPv2, SNMPv3, WPA-Enterprise, WPA-Personal, WPA2-Enterprise, WPA2-Personal, WPA3-Enterprise, WPA3-Personal |
| MAC address filtering |
Yes |
| Access Control List (ACL) |
Yes |
| Ports & interfaces |

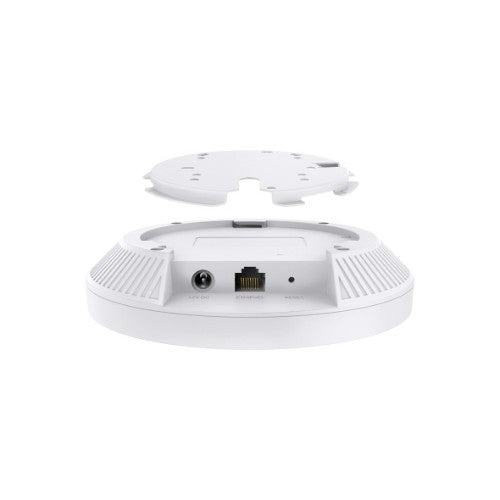

| Ethernet LAN (RJ-45) ports |
1 |
| DC-in jack |
Yes |
| Power |
| Power consumption (max) |
18.6 W |
| Power over Ethernet (PoE) |
Yes |
| Input current |
1.5 A |
| DC voltage range |
12 V |
| Design |

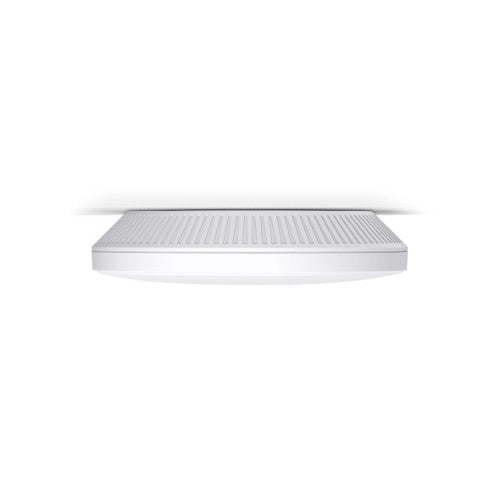

| Placement |
Ceiling, Wall |
| Product colour |
White |
| Reset button |
Yes |
| LED indicators |
Yes |
| Antenna |
| Antenna type |
Internal |
| Antenna gain level (max) |
5 dBi |
| Technical details |
| Reset button |
Yes |
| Compliance certificates |
CE, Federal Communications Commission (FCC), Industry Canada (IC), RoHS |
| Certificates |
| Compliance certificates |
CE, Federal Communications Commission (FCC), Industry Canada (IC), RoHS |
| Indication |
| LED indicators |
Yes |
| Software |
| Access Control List (ACL) |
Yes |
| Weight & dimensions |
| Width |
6.3" (160 mm) |
| Depth |
6.3" (160 mm) |
| Height |
1.44" (36.7 mm) |
| Packaging data |
| Quick start guide |
Yes |
| Mounting kit |
Yes |
| Package type |
Box |
| Packaging content |
| Quick start guide |
Yes |
| Mounting kit |
Yes |
| Quantity per pack |
1 pc(s) |
| Package type |
Box |
| Logistics data |
| Quantity per pack |
1 pc(s) |
