Description
The ProArt Z890-CREATOR WIFI empowers creators of all levels by maximizing the performance of the latest Intel® Core™ Ultra Processor (Series 2) processors with 16+1+2+2 team power stages, DDR5 slots, PCIe® 5.0 and lightning-fast connectivity including dual Thunderbolt 5 ports, 10G and 2.5G Ethernet, and WiFi 7.
All You Need for Maximum Productivity

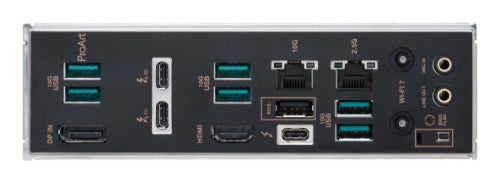

Thunderbolt™ Connectivity
Get immersed in your creations with two Thunderbolt™ 5 and one Thunderbolt™ 4 ports for connecting to all your compatible content-creation gadgets, enjoying up to 80 Gbps of bi-directional bandwidth, and up to 120 Gbps with Bandwidth Boost. To further push your creative work with one 8K or two 4K color-accurate monitors, you can connect your discrete graphics card to the onboard DisplayPort™ In port on the rear I/O panel and direct the video output via the Thunderbolt™ 5 port*.
*DP In cable not included.
Ultrafast Networking
10 Gb & 2.5 Gb Ethernet
Dual Ethernet ports provide fast data transfers simultaneously for 2.5G internet streaming or uploading and 10G for local network-attached storage (NAS), allowing for improved data organization and security.
WiFi 7
The revolutionary WiFi 7 is up to 4.8X faster than standard WiFi 6, thanks to technology like 320 MHz channels on the 6 GHz band and 4K QAM*. Multi-Link Operation (MLO) provides a more stable WiFi connection and lower latency, unlocking the realms of the unknown in gaming, streaming and industrial IoT.
ASUS WiFi Q-Antenna
Dual transceivers support the 2.4, 5 and 6 GHz bands to enable faster throughput, with directional sensitivity to improve signal quality and cover greater distances.
PCIe 5.0 Support
The ProArt Z890-CREATOR WIFI offers PCIe 5.0 support to give unfettered bandwidth to the fastest SSDs and graphics cards available.
Five Onboard M.2 Slots
ProArt Z890-CREATOR WIFI features one PCIe 5.0 M.2 slot and four PCIe 4.0 M.2 slots to enjoy the fastest data transfers of up to 128 Gbps*, and all M.2 slots support NVMe RAID configurations to take advantage of the latest available speeds.
PCIe 5.0 Expansion Slots
Both of the x16 expansion slots are PCIe 5.0, offering incredible speeds of up to 64 GB/s for compatible devices. To bear the brunt of massive graphics cards, they are also protected with SafeSlot retention brackets, and the top slot can be released easily via Q-Release Slim.
Seamless Dual-PC Sharing with Thunderbolt™ Share
Experience a revolutionary way to interact with two PCs using Thunderbolt™ Share—the ultrafast connectivity solution that transforms your dual-PC setup. Seamlessly share screens, keyboards, mice, storage and files between two computers, with the unparalleled speed of Thunderbolt™ technology.
*A certified Thunderbolt™ or USB4® cable is required to meet minimum bandwidth requirements. Cable not included.
The Core of Your Powerful Workstation
Robust Power Design
Designed to meet the needs of high-core-count CPUs, the ProArt Z890-CREATOR WIFI features 16(90A)+1(90A)+2(90A)+2(80A) power stages that integrate high-side and low-side MOSFETs and drivers into packages rated for up to 90 amps each. This configuration ensures optimal power delivery, efficiency, stability and performance for new Intel® Core™ Ultra Processors (Series 2).
Eight-Layer PCB Design
This enhances quick heat dissipation around the voltage regulators for enhanced stability and overclocking.
ProCool II Connectors
These are built to tight specifications to ensure flush contact with PSU power lines. The resulting lower impedance helps to prevent hotspots and connector failure.
Superior Chokes & Capacitors
These are engineered to resist extreme temperatures, providing a higher level of performance than the industry standard.
Digi+ VRM Control
The ASUS Digi+ voltage-regulator module (VRM) is one of the finest in the industry and ensures ultra-smooth power delivery to the CPU.
Intelligent AI Solutions
AI Overclocking
Maximized CPU performance and predictions for ideal CPU and cooling settings push your system to its limits.
AI Cooling II
Balance the thermals and acoustics of any build with a single click.
AI Networking II
Optimize network performance, helping to ensure seamless connectivity and maximized WiFi 7 speeds.
AI Advisor
Using AI technology to understand natural-language questions or scenario descriptions, ASUS AI Advisor allows users to explore the functionality and advanced features of ASUS motherboards in a simple and straightforward way.
* Availability of ASUS AI Advisor may vary by region.
Performance Boost
NPU Boost
The integrated Neural Processing Unit in Intel® Core™ Ultra Processors (Series 2) efficiently accelerates AI workflows — and NPU Boost lets you do more with it. This BIOS feature overclocks the NPU with just one click, increasing performance by up to 24%*.
* Results were with an Intel® Core™ Ultra 9 285K processor, ROG Maximus Z890 Extreme motherboard, GeForce RTX™ 4090 24GB graphics card, and XPG Lancer DDR5 memory modules (model AX5U6000C4016G). Individual results may vary.
Memory
The ProArt Z890-CREATOR WIFI enhances DDR5 performance by providing overclocking options that would otherwise be locked, whether you are dealing with high-speed or entry-level memory modules.
DIMM Fit
DIMM Fit is an ASUS-exclusive BIOS feature that precisely analyzes individual memory modules to optimize performance and pinpoint potential issues. This offers peak efficiency, compatibility and system stability.
Whether you are an overclocker seeking ultimate performance, a competitor pursuing the most responsive gameplay or a content creator prioritizing rock-solid stability, DIMM Fit provides optimizations tailored to your needs and your hardware configuration.
AEMP III
ASUS Enhanced Memory Profile III (AEMP III) is an advanced firmware feature that empowers users to achieve unparalleled memory performance with cutting-edge CUDIMM memory. Through a two-phase comprehensive tuning process, AEMP III first optimizes the clock driver and then the memory frequency. This results in the best balance between performance and stability, even at cutting-edge speeds of DDR5-8000 or higher.*
*Results may vary. Currently, only 2-DIMM configurations are supported. Results are based on a test with an Intel Core Ultra 9 285K processor and 2x16GB SK Hynix DDR5-6400 Clocked Unbuffered DIMM RAM, model HMCG78AHBCA326N.
PCIe® Slot Q-Release Slim
With PCIe Slot Q-Release Slim, simply tilt the card toward the latching mechanism to automatically unlock it from the PCIe slot. This makes upgrades and maintenance easier than ever before. Users no longer need to fiddle with a tricky latch or even press a button to release their graphics card from the slot.
M.2 Q-Release
The new M.2 heatsink features a convenient switch to quickly remove it, eliminating the need for tiny screws during SSD installation. Its strong locking mechanism also provides a snug contact surface, helping to ensure reliable heat dissipation for your SSD.
M.2 Q-Slide
A new sliding M.2 latch design supports sizes 2242, 2260 and 2280 for easy device installation.
New M.2 Q-Latch
The innovative ASUS Q-Latch makes it easy to install or remove an M.2 SSD without the need for specific tools or screws. This design employs a simple locking mechanism to secure the drive and neatly detach it with one tap.
Q-Antenna
With Q-Antenna, attaching a WiFi antenna to your PC is now easy and fast. Instead of slowly rotating two fasteners until they finally lock in, they just snap into place. Less hassle, and more consistent performance.
The Power of Minimalist Design
A spark of inspiration can breathe life into a concept that leads to a masterpiece. ProArt is a comprehensive ecosystem providing professional creators with a stable foundation for your inspiration. These custom workstations feature award-winning ProArt motherboards, graphics cards, CPU coolers and chassis, pairing with ProArt displays to accelerate your creative workflow and bring the boldest visions and ideas to life.
Everything You Need to Optimize Workflow
Customize Your Personal Settings
ProArt Creator Hub is your personal portal to monitor your PC status, personalize settings or optimize your workflow. It features an intuitive overview dashboard, with quickly switchable fan profiles and performance modes.
Color Management
One of the most important things for creators is color. The top right corner allows easy access to the Color Management feature. This includes the Screen Color Picker and Image Color Extractor that make it simple to get a detailed color analysis and color information, and you can use the Color Palette to build your personal color preferences. You will also find color trends and color palettes created by the professionals at the ASUS Design Center.
WorkSmart
To streamline your workflow, you can select up to 8 apps to be launched at the same time with a single desktop shortcut.
Security Control and Remote Management
Advanced security management functions from ASUS Control Center Express protect the PCs and confidential data in your creative studio.
USB Port Management
Enable or disable the USB port, or set it to Read Only to prevent data leaks.
Software Blacklist
For added security, a software blacklist is available to help prevent the use of high-risk applications.
Registry Editor On/Off
Remotely disable the Registry Editor on client devices to prevent unauthorized changes to system configurations.
Upgraded User Experience
BIOS Q-Dashboard and ASUS DriverHub make it easy to set up and maintain your PC, while ASUS GlideX delivers a variety of display and control options.
ASUS DriverHub
ASUS DriverHub streamlines the installation and management of ASUS drivers and utilities to keep your hardware up-to-date and perform optimally. This standalone application automatically detects current driver versions and presents available updates in a list view. Users are invited to install ASUS DriverHub after OS installation.
ASUS GlidEx
A cross-device, cross-platform screen-sharing, screen-control and operation solution for enhanced productivity across PCs, tablets and smartphones via USB or WiFi. It is compatible with Windows, macOS, Android and iOS.
Trusted Stability
ProArt Z890-CREATOR WIFI is engineered and rigorously tested to offer superior quality, stability and compatibility to ensure that it empowers creativity for years to come.
Three Months of Free Adobe Creative Cloud
Enjoy all things AI at Adobe. Get complimentary membership to Adobe Creative Cloud all Apps and Adobe Substance 3D with the purchase of selected ASUS products.
In Search of Sustainable Solution
ASUS is on a mission to create a sustainable future where all can flourish on the planet we call home.
Every step counts, and as part of ASUS’s commitment to creating a more sustainable future, ASUS has begun to utilize post-consumer recycled (PCR) plastic and paper materials certified by the Forest Stewardship Council® (FSC®) in the packaging of motherboards.
Join us on our journey as we make the world a better place.
Description
This motherboard manifests a professional, elegant and precise vision for content creators of all kinds, with a style elevated by tone-on-tone layers of black infused with metallic gold touches. A subtly designed I/O cover provides a sleek and sophisticated look while concealing the premium connectors within.All You Need for Maximum Productivity
Thunderbolt™ Connectivity
Get immersed in your creations with two Thunderbolt™ 5 and one Thunderbolt™ 4 ports for connecting to all your compatible content-creation gadgets, enjoying up to 80 Gbps of bi-directional bandwidth, and up to 120 Gbps with Bandwidth Boost. To further push your creative work with one 8K or two 4K color-accurate monitors, you can connect your discrete graphics card to the onboard DisplayPort™ In port on the rear I/O panel and direct the video output via the Thunderbolt™ 5 port*.
*DP In cable not included.
Ultrafast Networking
10 Gb & 2.5 Gb Ethernet
Dual Ethernet ports provide fast data transfers simultaneously for 2.5G internet streaming or uploading and 10G for local network-attached storage (NAS), allowing for improved data organization and security.
WiFi 7
The revolutionary WiFi 7 is up to 4.8X faster than standard WiFi 6, thanks to technology like 320 MHz channels on the 6 GHz band and 4K QAM*. Multi-Link Operation (MLO) provides a more stable WiFi connection and lower latency, unlocking the realms of the unknown in gaming, streaming and industrial IoT.
ASUS WiFi Q-Antenna
Dual transceivers support the 2.4, 5 and 6 GHz bands to enable faster throughput, with directional sensitivity to improve signal quality and cover greater distances.
PCIe 5.0 Support
The ProArt Z890-CREATOR WIFI offers PCIe 5.0 support to give unfettered bandwidth to the fastest SSDs and graphics cards available.
Five Onboard M.2 Slots
ProArt Z890-CREATOR WIFI features one PCIe 5.0 M.2 slot and four PCIe 4.0 M.2 slots to enjoy the fastest data transfers of up to 128 Gbps*, and all M.2 slots support NVMe RAID configurations to take advantage of the latest available speeds.
PCIe 5.0 Expansion Slots
Both of the x16 expansion slots are PCIe 5.0, offering incredible speeds of up to 64 GB/s for compatible devices. To bear the brunt of massive graphics cards, they are also protected with SafeSlot retention brackets, and the top slot can be released easily via Q-Release Slim.
Seamless Dual-PC Sharing with Thunderbolt™ Share
Experience a revolutionary way to interact with two PCs using Thunderbolt™ Share—the ultrafast connectivity solution that transforms your dual-PC setup. Seamlessly share screens, keyboards, mice, storage and files between two computers, with the unparalleled speed of Thunderbolt™ technology.
*A certified Thunderbolt™ or USB4® cable is required to meet minimum bandwidth requirements. Cable not included.
The Core of Your Powerful Workstation
Robust Power Design
Designed to meet the needs of high-core-count CPUs, the ProArt Z890-CREATOR WIFI features 16(90A)+1(90A)+2(90A)+2(80A) power stages that integrate high-side and low-side MOSFETs and drivers into packages rated for up to 90 amps each. This configuration ensures optimal power delivery, efficiency, stability and performance for new Intel® Core™ Ultra Processors (Series 2).
Eight-Layer PCB Design
This enhances quick heat dissipation around the voltage regulators for enhanced stability and overclocking.
ProCool II Connectors
These are built to tight specifications to ensure flush contact with PSU power lines. The resulting lower impedance helps to prevent hotspots and connector failure.
Superior Chokes & Capacitors
These are engineered to resist extreme temperatures, providing a higher level of performance than the industry standard.
Digi+ VRM Control
The ASUS Digi+ voltage-regulator module (VRM) is one of the finest in the industry and ensures ultra-smooth power delivery to the CPU.
Intelligent AI Solutions
AI Overclocking
Maximized CPU performance and predictions for ideal CPU and cooling settings push your system to its limits.
AI Cooling II
Balance the thermals and acoustics of any build with a single click.
AI Networking II
Optimize network performance, helping to ensure seamless connectivity and maximized WiFi 7 speeds.
AI Advisor
Using AI technology to understand natural-language questions or scenario descriptions, ASUS AI Advisor allows users to explore the functionality and advanced features of ASUS motherboards in a simple and straightforward way.
* Availability of ASUS AI Advisor may vary by region.
Performance Boost
NPU Boost
The integrated Neural Processing Unit in Intel® Core™ Ultra Processors (Series 2) efficiently accelerates AI workflows — and NPU Boost lets you do more with it. This BIOS feature overclocks the NPU with just one click, increasing performance by up to 24%*.
* Results were with an Intel® Core™ Ultra 9 285K processor, ROG Maximus Z890 Extreme motherboard, GeForce RTX™ 4090 24GB graphics card, and XPG Lancer DDR5 memory modules (model AX5U6000C4016G). Individual results may vary.
Memory
The ProArt Z890-CREATOR WIFI enhances DDR5 performance by providing overclocking options that would otherwise be locked, whether you are dealing with high-speed or entry-level memory modules.
DIMM Fit
DIMM Fit is an ASUS-exclusive BIOS feature that precisely analyzes individual memory modules to optimize performance and pinpoint potential issues. This offers peak efficiency, compatibility and system stability.
Whether you are an overclocker seeking ultimate performance, a competitor pursuing the most responsive gameplay or a content creator prioritizing rock-solid stability, DIMM Fit provides optimizations tailored to your needs and your hardware configuration.
AEMP III
ASUS Enhanced Memory Profile III (AEMP III) is an advanced firmware feature that empowers users to achieve unparalleled memory performance with cutting-edge CUDIMM memory. Through a two-phase comprehensive tuning process, AEMP III first optimizes the clock driver and then the memory frequency. This results in the best balance between performance and stability, even at cutting-edge speeds of DDR5-8000 or higher.*
*Results may vary. Currently, only 2-DIMM configurations are supported. Results are based on a test with an Intel Core Ultra 9 285K processor and 2x16GB SK Hynix DDR5-6400 Clocked Unbuffered DIMM RAM, model HMCG78AHBCA326N.
PCIe® Slot Q-Release Slim
With PCIe Slot Q-Release Slim, simply tilt the card toward the latching mechanism to automatically unlock it from the PCIe slot. This makes upgrades and maintenance easier than ever before. Users no longer need to fiddle with a tricky latch or even press a button to release their graphics card from the slot.
M.2 Q-Release
The new M.2 heatsink features a convenient switch to quickly remove it, eliminating the need for tiny screws during SSD installation. Its strong locking mechanism also provides a snug contact surface, helping to ensure reliable heat dissipation for your SSD.
M.2 Q-Slide
A new sliding M.2 latch design supports sizes 2242, 2260 and 2280 for easy device installation.
New M.2 Q-Latch
The innovative ASUS Q-Latch makes it easy to install or remove an M.2 SSD without the need for specific tools or screws. This design employs a simple locking mechanism to secure the drive and neatly detach it with one tap.
Q-Antenna
With Q-Antenna, attaching a WiFi antenna to your PC is now easy and fast. Instead of slowly rotating two fasteners until they finally lock in, they just snap into place. Less hassle, and more consistent performance.
The Power of Minimalist Design
A spark of inspiration can breathe life into a concept that leads to a masterpiece. ProArt is a comprehensive ecosystem providing professional creators with a stable foundation for your inspiration. These custom workstations feature award-winning ProArt motherboards, graphics cards, CPU coolers and chassis, pairing with ProArt displays to accelerate your creative workflow and bring the boldest visions and ideas to life.
Everything You Need to Optimize Workflow
Customize Your Personal Settings
ProArt Creator Hub is your personal portal to monitor your PC status, personalize settings or optimize your workflow. It features an intuitive overview dashboard, with quickly switchable fan profiles and performance modes.
Color Management
One of the most important things for creators is color. The top right corner allows easy access to the Color Management feature. This includes the Screen Color Picker and Image Color Extractor that make it simple to get a detailed color analysis and color information, and you can use the Color Palette to build your personal color preferences. You will also find color trends and color palettes created by the professionals at the ASUS Design Center.
WorkSmart
To streamline your workflow, you can select up to 8 apps to be launched at the same time with a single desktop shortcut.
Security Control and Remote Management
Advanced security management functions from ASUS Control Center Express protect the PCs and confidential data in your creative studio.
USB Port Management
Enable or disable the USB port, or set it to Read Only to prevent data leaks.
Software Blacklist
For added security, a software blacklist is available to help prevent the use of high-risk applications.
Registry Editor On/Off
Remotely disable the Registry Editor on client devices to prevent unauthorized changes to system configurations.
Upgraded User Experience
BIOS Q-Dashboard and ASUS DriverHub make it easy to set up and maintain your PC, while ASUS GlideX delivers a variety of display and control options.
ASUS DriverHub
ASUS DriverHub streamlines the installation and management of ASUS drivers and utilities to keep your hardware up-to-date and perform optimally. This standalone application automatically detects current driver versions and presents available updates in a list view. Users are invited to install ASUS DriverHub after OS installation.
ASUS GlidEx
A cross-device, cross-platform screen-sharing, screen-control and operation solution for enhanced productivity across PCs, tablets and smartphones via USB or WiFi. It is compatible with Windows, macOS, Android and iOS.
Trusted Stability
ProArt Z890-CREATOR WIFI is engineered and rigorously tested to offer superior quality, stability and compatibility to ensure that it empowers creativity for years to come.
Three Months of Free Adobe Creative Cloud
Enjoy all things AI at Adobe. Get complimentary membership to Adobe Creative Cloud all Apps and Adobe Substance 3D with the purchase of selected ASUS products.
In Search of Sustainable Solution
ASUS is on a mission to create a sustainable future where all can flourish on the planet we call home.
Every step counts, and as part of ASUS’s commitment to creating a more sustainable future, ASUS has begun to utilize post-consumer recycled (PCR) plastic and paper materials certified by the Forest Stewardship Council® (FSC®) in the packaging of motherboards.
Join us on our journey as we make the world a better place.
Specifications
| Internal I/O | |
|---|---|
| Number of M.2 (M) slots | 5 |
| USB 3.2 Gen 2 (3.1 Gen 2) connectors | 1 |
| Front panel connector | Yes |
| 12V power connector | Yes |
| Supported storage drive interfaces | M.2, SATA III |
| USB 2.0 connectors | 1 |
| USB 3.2 Gen 1 (3.1 Gen 1) connectors | 1 |
| mSATA ports quantity | 0 |
| TPM connector | Yes |
| Number of SATA connectors | 0 |
| Number of SATA III connectors | 4 |
| Number of SATA II connectors | 0 |
| Number of COM connectors | 1 |
| Number of chassis fan connectors | 5 |
| Front panel audio connector | Yes |
| EPS power connector (8-pin) | Yes |
| CPU fan connector | Yes |
| Chassis intrusion connector | Yes |
| ATX Power connector (24-pin) | Yes |
| RGB LED pin header | Yes |
| Number of CPU fan connectors | 2 |
| Number of EPS power connectors (8-pin) | 2 |
| Number of water pump connectors | 1 |
| Number of temperature sensor headers | 1 |
| Number of RGB LED pin headers | 3 |
| Technical details | |
| Motherboard chipset family | Intel |
| Motherboard chipset | Intel Z890 |
| Supported processor sockets | LGA 1851 |
| Parallel processing technology support | Not supported |
| On-board graphics card | No |
| HDMI version | 2.1 |
| Motherboard form factor | ATX |
| Component for | PC |
| Audio | |
| Audio output channels | 7.1 channels |
| Performance | |
| Number of HDDs supported | 4 |
| Supported storage drive types | HDD & SSD |
| Motherboard chipset family | Intel |
| Motherboard chipset | Intel Z890 |
| RAID levels | 0, 1, 5, 10 |
| Supported processor sockets | LGA 1851 |
| Audio output channels | 7.1 channels |
| Motherboard form factor | ATX |
| Component for | PC |
| Processor | |
| Processor manufacturer | Intel |
| Compatible processor series | Intel Core Ultra (Series 2) |
| Supported processor sockets | LGA 1851 |
| Processor socket | LGA 1851 (Socket V1) |
| Memory | |
| Number of memory slots | 4 |
| Memory slots type | DIMM |
| Supported memory types | DDR5-SDRAM |
| Memory channels | Dual-channel |
| Supported memory clock speeds | 9066 MHz |
| Maximum internal memory | 192 GB |
| Unbuffered memory | Yes |
| Supported memory clock speed (max) | 9066 MHz |
| ECC сompatibility | Non-ECC |
| Storage controllers | |
| Number of HDDs supported | 4 |
| Supported storage drive types | HDD & SSD |
| Supported storage drive interfaces | M.2, SATA III |
| RAID levels | 0, 1, 5, 10 |
| Number of storage drives supported | 9 |
| RAID support | Yes |
| Graphics | |
| Parallel processing technology support | Not supported |
| On-board graphics card | No |
| Maximum resolution | 7680 x 4320 pixels |
| Rear panel I/O ports | |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 0 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity | 0 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 6 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity | 0 |
| DisplayPort version | 2.1 |
| USB 2.0 ports quantity | 1 |
| WiFi-AP antenna jack | 2 |
| VGA (D-Sub) ports quantity | 0 |
| Thunderbolt ports quantity | 3 |
| Headphone outputs | 1 |
| HDMI version | 2.1 |
| HDMI ports quantity | 1 |
| Ethernet LAN (RJ-45) ports | 2 |
| DVI-D ports quantity | 0 |
| DisplayPorts quantity | 1 |
| Line-in | Yes |
| Network | |
| Ethernet LAN | Yes |
| Wi-Fi | Yes |
| Wi-Fi standards | Wi-Fi 7 (802.11be) |
| Ethernet interface type | 2.5 Gigabit Ethernet, 10 Gigabit Ethernet |
| Bluetooth | Yes |
| Bluetooth version | 5.4 |
| Top Wi-Fi standard | Wi-Fi 7 (802.11be) |
| Features | |
| Power source type | ATX |
| Motherboard chipset family | Intel |
| Motherboard chipset | Intel Z890 |
| Supported processor sockets | LGA 1851 |
| Audio output channels | 7.1 channels |
| Motherboard form factor | ATX |
| Component for | PC |
| Audio chip | Realtek ALC1220P |
| Product colour | Black |
| Expansion slots | |
| Number of M.2 (M) slots | 5 |
| PCI Express x16 (Gen 4.x) slots | 1 |
| PCI Express x16 (Gen 5.x) slots | 2 |
| 1st M.2 largest key size | 22110 |
| 1st M.2 highest PCI Express generation | 5.0 |
| 2nd M.2 largest key size | 2280 |
| 2nd M.2 highest PCI Express generation | 4.0 |
| 3rd M.2 largest key size | 2280 |
| 3rd M.2 highest PCI Express generation | 4.0 |
| 4th M.2 largest key size | 2280 |
| 4th M.2 highest PCI Express generation | 4.0 |
| 5th M.2 largest key size | 2280 |
| 5th M.2 highest PCI Express generation | 4.0 |
| BIOS | |
| BIOS type | UEFI AMI |
| BIOS memory size | 256 Mbit |
| Clear CMOS button | Yes |
| Power | |
| Power source type | ATX |
| Video | |
| Maximum resolution | 7680 x 4320 pixels |
| Packaging data | |
| Package width | 14" (356 mm) |
| Package depth | 11.1" (281 mm) |
| Package height | 9.61" (244 mm) |
| Package weight | 5.18 lbs (2.35 kg) |
| Weight & dimensions | |
| Package width | 14" (356 mm) |
| Package depth | 11.1" (281 mm) |
| Package height | 9.61" (244 mm) |
| Package weight | 5.18 lbs (2.35 kg) |
| Weight | 4.34 lbs (1.97 kg) |
| Width | 12" (305 mm) |
| Depth | 9.61" (244 mm) |
| Packaging content | |
| Cables included | SATA |
| Antenna included | Yes |
| Other features | |
| Package width | 14" (356 mm) |
| Package depth | 11.1" (281 mm) |
| Package height | 9.61" (244 mm) |
| Package weight | 5.18 lbs (2.35 kg) |
| mSATA ports quantity | 0 |
| Weight | 4.34 lbs (1.97 kg) |
