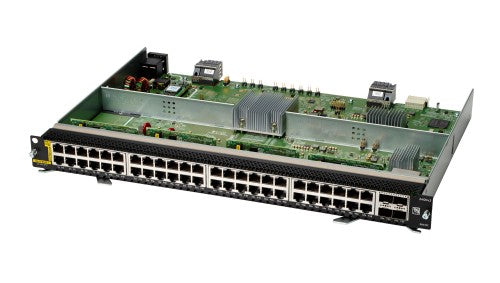

HPE Aruba Networking CX 6400 48-port 1GbE Class 4 PoE and 4-port SFP56 v2 Module

HPE Aruba Networking CX 6400 48-port 1GbE Class 4 PoE and 4-port SFP56 v2 Module, Gigabit Ethernet, 200 - 240 V, 1.69" (43 mm), 12.4" (315 mm), 17.3" (439 mm), 6.97 lbs (3.16 kg)

Reasons To Buy

Automation and Analytics

The HPE Aruba Networking CX 6400 Switch Series delivers unparalleled visibility with built-in analytics for real-time monitoring and troubleshooting to help fix problems faster. The Network Analytics Engine automatically interrogates and analyzes events that can impact network health.
Advanced telemetry and automation provide the ability to easily identify and troubleshoot network, system, application, and security-related issues easily, through the use of Python agents and REST APIs.
The Time Series Database (TSDB) stores configuration and operational state data, making it available to quickly resolve network issues.

High Availability and Performance

The HPE Aruba Networking CX 6400 Switch Series uses a fully distributed architecture with Gen7 ASICs that deliver very low latency, increased packet buffering, and adaptive power consumption. All switching and routing are wire-speed to meet the demands of bandwidth-intensive applications.
Features high speed, non-blocking 1 GbE, 10 GbE, 25 GbE, 40 GbE, and 100 GbE for scalable connectivity.
The ability to maintain a synchronous state across dual control planes allows a simplified carrier-class high-availability solution called HPE Aruba Networking Virtual Switching Extension (VSX) that enables a distributed architecture, which is available during upgrades or control plane events.
High performance and versatile platform supports non-blocking 1 GbE, 10 GbE, 25 GbE, 40 GbE, and 100 GbE connections, and high density connectivity for aggregation with up to 480 ports of HPE Smart Rate multi-gigabit (1/2.5/5GbE) with 60W PoE for a total of 28,880W of PoE.

Smarter Segmentation

The HPE Aruba Networking CX 6400 Switch Series supports Dynamic Segmentation that automatically applies and enforces user, device, and application-aware policies on HPE Aruba Networking wired and wireless infrastructures.
Automated device profiling, role-based access control, and Layer 7 firewall features deliver enhanced visibility and performance for a better overall experience for both IT and end-users alike.
Switch-to-switch tunnels enable scalable multi-tenancy support with VXLAN to VRF mapping, while allowing policy application via user roles.

Description

HPE Aruba Networking CX 6400 48-port 1GbE Class 4 PoE and 4-port SFP56 v2 Module. Ethernet interface type: Gigabit Ethernet. AC input voltage: 200 - 240 V. Width: 1.69" (43 mm), Depth: 12.4" (315 mm), Height: 17.3" (439 mm)

Specifications

Network
Ethernet interface type	Gigabit Ethernet
Ports & interfaces
Fiber ports quantity	4
Ethernet LAN (RJ-45) ports	48
Power
Power over Ethernet (PoE)	Yes
AC input voltage	200 - 240 V
Weight & dimensions
Weight	6.97 lbs (3.16 kg)
Width	1.69" (43 mm)
Depth	12.4" (315 mm)
Height	17.3" (439 mm)
Technical details
Ethernet interface type	Gigabit Ethernet
Processor frequency	1800 MHz
