Description
Description

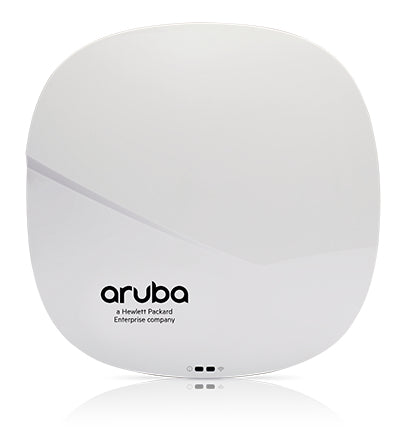

The Aruba 330 Series access points provide the fastest gigabit data speeds and superb user experience for mobile devices and applications in a digital workplace.Designed with an integrated HPE Smart Rate port to scale up to 5Gbps Ethernet over existing copper, the 330 Series allows enterprises to leverage their multi-gigabit Ethernet wired network infrastructures to eliminate bottlenecks.
These Wave 2 access points deliver multi-user MIMO (MU-MIMO) aware ClientMatch to boost network efficiency and support the growing device density demands on your network.
Specifications
| Data transmission | |
|---|---|
| Wi-Fi data rate (max) | 1733 Mbit/s |
| Ethernet LAN data rates | 100,1000 Mbit/s |
| Maximum data transfer rate | 1733 Mbit/s |
| Performance | |
| 2.4 GHz | Yes |
| 5 GHz | Yes |
| Auto MDI/MDI-X | Yes |
| Wi-Fi data rate (max) | 1733 Mbit/s |
| Reset button | Yes |
| Firmware upgradeable | Yes |
| Frequency band | 2.4 - 2.4835, 5.15 - 5.25, 5.25 - 5.35, 5.47 - 5.725, 5.725 - 5.85 GHz |
| Web-based management | Yes |
| Quality of Service (QoS) support | Yes |
| Networking standards | IEEE 802.11a, IEEE 802.11ac, IEEE 802.11b, IEEE 802.11g, IEEE 802.3af, IEEE 802.3at, IEEE 802.3az |
| Modulation | 16-QAM, 64-QAM, 256-QAM, BPSK, CCK, DSSS, OFDM, QPSK |
| Ethernet LAN data rates | 100,1000 Mbit/s |
| Maximum data transfer rate | 1733 Mbit/s |
| MIMO | Yes |
| Wireless LAN features | |
| Frequency band | 2.4 - 2.4835, 5.15 - 5.25, 5.25 - 5.35, 5.47 - 5.725, 5.725 - 5.85 GHz |
| Modulation | 16-QAM, 64-QAM, 256-QAM, BPSK, CCK, DSSS, OFDM, QPSK |
| Network | |
| Internal | No |
| Networking standards | IEEE 802.11a, IEEE 802.11ac, IEEE 802.11b, IEEE 802.11g, IEEE 802.3af, IEEE 802.3at, IEEE 802.3az |
| Security | |
| Cable lock slot | Yes |
| Number of SSID supported | 16 |
| Security algorithms | WEP, WPA, WPA2, WPS |
| Management features | |
| Quality of Service (QoS) support | Yes |
| Firmware upgradeable | Yes |
| Web-based management | Yes |
| Features | |
| 2.4 GHz | Yes |
| 5 GHz | Yes |
| Auto MDI/MDI-X | Yes |
| Wi-Fi data rate (max) | 1733 Mbit/s |
| Frequency band | 2.4 - 2.4835, 5.15 - 5.25, 5.25 - 5.35, 5.47 - 5.725, 5.725 - 5.85 GHz |
| Quality of Service (QoS) support | Yes |
| Networking standards | IEEE 802.11a, IEEE 802.11ac, IEEE 802.11b, IEEE 802.11g, IEEE 802.3af, IEEE 802.3at, IEEE 802.3az |
| Modulation | 16-QAM, 64-QAM, 256-QAM, BPSK, CCK, DSSS, OFDM, QPSK |
| Ethernet LAN data rates | 100,1000 Mbit/s |
| Maximum data transfer rate | 1733 Mbit/s |
| MIMO | Yes |
| Ports & interfaces | |
| RS-232 interface | Yes |
| USB connector type | USB Type-A |
| USB 2.0 ports quantity | 1 |
| Ethernet LAN (RJ-45) ports | 2 |
| DC-in jack | Yes |
| Power | |
| Power consumption (max) | 25.3 W |
| Power over Ethernet (PoE) | Yes |
| AC input voltage | 48 V |
| Design | |
| Placement | Wall |
| Product colour | White |
| Reset button | Yes |
| Internal | No |
| LED indicators | Yes |
| Cable lock slot | Yes |
| Cable lock slot type | Kensington |
| Antenna | |
| Antennas quantity | 12 |
| Antenna connector type | RP-SMA |
| Antenna features | Integrated antenna |
| Technical details | |
| Reset button | Yes |
| Firmware upgradeable | Yes |
| Harmonized System (HS) code | 85176990 |
| Indication | |
| LED indicators | Yes |
| Weight & dimensions | |
| Width | 8.86" (225 mm) |
| Depth | 8.82" (224 mm) |
| Weight | 2.54 lbs (1.15 kg) |
| Height | 2.05" (52 mm) |
| Package width | 13.2" (335 mm) |
| Package depth | 11.4" (290 mm) |
| Package height | 2.99" (76 mm) |
| Package weight | 3.42 lbs (1.55 kg) |
| Packaging data | |
| Quick start guide | Yes |
| Package width | 13.2" (335 mm) |
| Package depth | 11.4" (290 mm) |
| Package height | 2.99" (76 mm) |
| Package weight | 3.42 lbs (1.55 kg) |
| Packaging content | |
| Quick start guide | Yes |
| Operational conditions | |
| Operating relative humidity (H-H) | 5 - 95% |
| Operating temperature (T-T) | 0 - 50 °C |
| Storage temperature (T-T) | -40 - 70 °C |
| Logistics data | |
| Harmonized System (HS) code | 85176990 |
