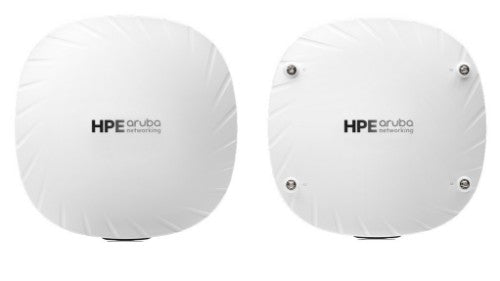

HPE Aruba Networking AP-535 (US) Dual Radio 4x4 802.11ax Internal Antennas Unified Campus AP
Save 26%
Description
HPE Aruba Networking AP-535 (US) Dual Radio 4x4 802.11ax Internal Antennas Unified Campus AP, 2.4 GHz, 5 GHz, 3550 Mbit/s, WMM, WPA, WPA2, 100,1000,2500,5000 Mbit/s
Dual-radio (dual 4x4 MIMO) 802.11ax AP with up-and downlink OFDMA and Multi-User MIMO (MU-MIMO).
The AP includes features such as OFDMA, bidirectional MU-MIMO, and target wait time (TWT) for better multi-user performance and improved efficiency.
Enhanced wireless experience with HPE Aruba Networking ClientMatch technology removes sticky client issues by steering a client to the AP where it it receives one of the best radio signals.
Two 5 Gbps ports provide flexibility to support speeds of 1, 2.5, or 5 Gbps (or 100 Mbps).
It offers stronger encryption and authentication with WPA3, protected credentials/keys storage for guest access with Enhanced Open, and user and IoT access policy enforcement firewalls (PEF).
The AP simplifies policy enforcement by using the PEF to encapsulate all traffic from the AP to the gateway (or mobility controller) for end-to-end encryption and inspection.
For enhanced device assurance, the 530 Series include an installed Trusted Platform Module (TPM) for protected storage of credentials and keys, and boot code.
The AP supports an integrated Bluetooth 5 and 802.15.4 radio (for Zigbee support), as well as a USB port for increased flexibility, providing better security and reliable connectivity for IoT devices.
HPE Aruba Networking Central Client Insights uses deep packet inspection to provide additional context and behavioral information that help verify devices are receiving proper policy enforcement and continuously monitor for rogue devices.
The Intelligent Power Monitoring (IPM) provides the ability to enable or disable capabilities based on available PoE power.
The target wake time (TWT) establishes a schedule for when clients need to communicate with an AP to help improve client power savings and reduce airtime contention.
Reasons To Buy
Boost your Wi-Fi 6 Performance
The HPE Aruba Networking 530 Series Campus Access Points are designed to simultaneously serve multiple clients and traffic types providing up to 2.97 Gbps combined aggregate data rate.Dual-radio (dual 4x4 MIMO) 802.11ax AP with up-and downlink OFDMA and Multi-User MIMO (MU-MIMO).
The AP includes features such as OFDMA, bidirectional MU-MIMO, and target wait time (TWT) for better multi-user performance and improved efficiency.
Enhanced wireless experience with HPE Aruba Networking ClientMatch technology removes sticky client issues by steering a client to the AP where it it receives one of the best radio signals.
Two 5 Gbps ports provide flexibility to support speeds of 1, 2.5, or 5 Gbps (or 100 Mbps).
Security By Design
The HPE Aruba Networking 530 Series Campus Access Points offer enhanced security with Dynamic Segmentation to remove the time-consuming and error-prone task of managing complex and static VLANs, ACLs, and subnets by dynamically assigning policies and keeping traffic protected and separated.It offers stronger encryption and authentication with WPA3, protected credentials/keys storage for guest access with Enhanced Open, and user and IoT access policy enforcement firewalls (PEF).
The AP simplifies policy enforcement by using the PEF to encapsulate all traffic from the AP to the gateway (or mobility controller) for end-to-end encryption and inspection.
For enhanced device assurance, the 530 Series include an installed Trusted Platform Module (TPM) for protected storage of credentials and keys, and boot code.
IoT Ready
The HPE Aruba Networking 530 Series Campus Access Points can serve as IoT platforms that bolster network security and provide coverage for a range of IoT devices without the need for network overlays.The AP supports an integrated Bluetooth 5 and 802.15.4 radio (for Zigbee support), as well as a USB port for increased flexibility, providing better security and reliable connectivity for IoT devices.
HPE Aruba Networking Central Client Insights uses deep packet inspection to provide additional context and behavioral information that help verify devices are receiving proper policy enforcement and continuously monitor for rogue devices.
Sustainability
The HPE Aruba Networking 530 Series Campus Access Points support AI-powered Dynamic Power Save mode that , it enables APs to automatically wake up at a schedule when connectivity demand arises, reducing power demands and lowering the energy footprint.The Intelligent Power Monitoring (IPM) provides the ability to enable or disable capabilities based on available PoE power.
The target wake time (TWT) establishes a schedule for when clients need to communicate with an AP to help improve client power savings and reduce airtime contention.
Description
HPE Aruba Networking AP-535 (US) Dual Radio 4x4 802.11ax Internal Antennas Unified Campus AP. 2.4 GHz, 5 GHz, Maximum data transfer rate: 3550 Mbit/s. Security algorithms: WMM, WPA, WPA2. Ethernet LAN data rates: 100,1000,2500,5000 Mbit/s. Power over Ethernet (PoE). Product color: White. Power consumption (max): 23.3 WSpecifications
| Data transmission | |
|---|---|
| Ethernet LAN data rates | 100,1000,2500,5000 Mbit/s |
| Maximum data transfer rate | 3550 Mbit/s |
| Performance | |
| 2.4 GHz | Yes |
| 5 GHz | Yes |
| Auto MDI/MDI-X | Yes |
| Spread spectrum method | DSSS, OFDM |
| Networking standards | IEEE 802.11ax |
| Modulation | 16-QAM, 64-QAM, 256-QAM, 1024-QAM, BPSK, CCK, QPSK |
| Ethernet LAN data rates | 100,1000,2500,5000 Mbit/s |
| Certification | None |
| Maximum data transfer rate | 3550 Mbit/s |
| MIMO type | Multi User MIMO |
| MIMO | Yes |
| Wireless LAN features | |
| Modulation | 16-QAM, 64-QAM, 256-QAM, 1024-QAM, BPSK, CCK, QPSK |
| Network | |
| Spread spectrum method | DSSS, OFDM |
| Networking standards | IEEE 802.11ax |
| Security | |
| Cable lock slot | Yes |
| Security algorithms | WMM, WPA, WPA2 |
| Features | |
| 2.4 GHz | Yes |
| 5 GHz | Yes |
| Auto MDI/MDI-X | Yes |
| Spread spectrum method | DSSS, OFDM |
| Networking standards | IEEE 802.11ax |
| Modulation | 16-QAM, 64-QAM, 256-QAM, 1024-QAM, BPSK, CCK, QPSK |
| Ethernet LAN data rates | 100,1000,2500,5000 Mbit/s |
| Maximum data transfer rate | 3550 Mbit/s |
| MIMO type | Multi User MIMO |
| MIMO | Yes |
| Maximum data transfer rate (2.4 GHz) | 1148 Mbit/s |
| Maximum data transfer rate (5 GHz) | 2402 Mbit/s |
| Ports & interfaces | |
| USB connector type | USB Type-A |
| USB 2.0 ports quantity | 1 |
| Ethernet LAN (RJ-45) ports | 2 |
| Power | |
| Power consumption (max) | 23.3 W |
| Power over Ethernet (PoE) | Yes |
| Design | |
| Placement | Ceiling, Wall |
| Product colour | White |
| Certification | None |
| Cable lock slot | Yes |
| Cable lock slot type | Kensington |
| Antenna | |
| Antenna type | Internal |
| Antennas quantity | 4 |
| Antenna gain level (max) | 5.4 dBi |
| Antenna direction type | Omni-directional |
| Antenna features | Integrated antenna |
| Certificates | |
| Certification | None |
| Weight & dimensions | |
| Width | 9.45" (240 mm) |
| Depth | 9.45" (240 mm) |
| Weight | 2.2 lbs (1 kg) |
| Height | 2.24" (57 mm) |
| Operational conditions | |
| Operating relative humidity (H-H) | 5 - 93% |
| Operating temperature (T-T) | 0 - 50 °C |
| Storage temperature (T-T) | -40 - 70 °C |
| Storage relative humidity (H-H) | 5 - 93% |
