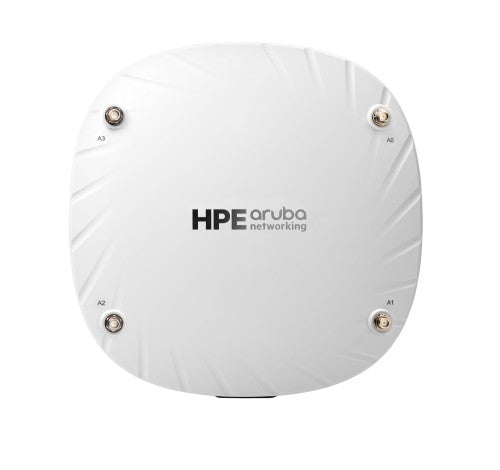

HPE Aruba Networking AP-514 (US) Dual Radio 4x4/2x2 802.11ax External Antennas Unified Campus AP, 2.4 GHz, 5 GHz, 5375 Mbit/s, WMM, WPA, WPA2, 100,1000,2500 Mbit/s
Reasons To Buy
Wi-Fi 6 Performance Ideal for Campus Deployment
The HPE Aruba Networking 510 Series Campus Access Points deliver a maximum combined data rate of 2.69 Gbps with up to 4 spatial streams (4SS) and 160 MHz channel bandwidth (VHT160).
The AP supports Wi-Fi 6 features such as OFDMA, bidirectional MU-MIMO, and target wait time (TWT) to drive improved efficiency. It handles multiple Wi-Fi 6 capable clients on each channel simultaneously, regardless of device or traffic type.
Enhanced wireless experience with HPE Aruba Networking ClientMatch technology removes sticky client issues by steering a client to the AP where it receives one of the best radio signal.
Fast wired connections with 2.5 Gbps Ethernet and 1 Gbps Ethernet ports.
Cloud Management and Ready for IoT
HPE Aruba Networking 510 Series Campus Access Points can be managed with HPE Aruba Networking Central, an AI-powered solution that simplifies IT operations, improves agility, and reduces costs by unifying management of campus, branch, remote, data center, and IoT networks from one dashboard.
The AP includes an integrated Bluetooth 5 and 802.15.4 radio (for Zigbee support) to simplify deploying and managing IoT-based location services, asset tracking services, security solutions and IoT sensors.
The target wake time (TWT) improves battery life of IoT devices.
HPE Aruba Networking Central client insights uses deep packet inspection to provide additional context and behavioral information that help verify devices are receiving proper policy enforcement and continuously monitor for rogue devices.
Simple and Secure Access
HPE Aruba Networking 510 Series Campus Access Points offer enhanced security with Dynamic Segmentation to remove the time-consuming and error-prone task of managing complex and static VLANs, ACLs, and subnets by dynamically assigning policies and keeping traffic protected and separated.
It offers stronger encryption and authentication with WPA3, protected credentials/keys storage for guest access with Enhanced Open, and user and IoT access policy enforcement firewalls (PEF).
WPA3 and Enhanced Open security increases enterprise-level security by providing stronger guest access protections without increasing complexity.
For enhanced device assurance, the APs include an installed Trusted Platform Module (TPM) for protected storage of credentials and keys, and boot code.
Description
HPE Aruba Networking AP-514 (US) Dual Radio 4x4/2x2 802.11ax External Antennas Unified Campus AP. 2.4 GHz, 5 GHz, Maximum data transfer rate: 5375 Mbit/s. Security algorithms: WMM, WPA, WPA2. Ethernet LAN data rates: 100,1000,2500 Mbit/s. Power over Ethernet (PoE). Product color: White
Specifications
| Data transmission |
|---|
| Ethernet LAN data rates |
100,1000,2500 Mbit/s |
| Maximum data transfer rate |
5375 Mbit/s |
| Performance |
|---|
| 2.4 GHz |
Yes |
| 5 GHz |
Yes |
| Auto MDI/MDI-X |
Yes |
| Spread spectrum method |
DSSS, OFDM |
| Networking standards |
IEEE 802.11ax |
| Modulation |
16-QAM, 64-QAM, 256-QAM, 1024-QAM, BPSK, CCK, QPSK |
| Ethernet LAN data rates |
100,1000,2500 Mbit/s |
| Certification |
None |
| Maximum data transfer rate |
5375 Mbit/s |
| MIMO |
Yes |
| Wireless LAN features |
|---|
| Modulation |
16-QAM, 64-QAM, 256-QAM, 1024-QAM, BPSK, CCK, QPSK |
| Network |
|---|
| Spread spectrum method |
DSSS, OFDM |
| Networking standards |
IEEE 802.11ax |
| Security |
|---|
| Cable lock slot |
Yes |
| Security algorithms |
WMM, WPA, WPA2 |
| Features |
|---|
| 2.4 GHz |
Yes |
| 5 GHz |
Yes |
| Auto MDI/MDI-X |
Yes |
| Spread spectrum method |
DSSS, OFDM |
| Networking standards |
IEEE 802.11ax |
| Modulation |
16-QAM, 64-QAM, 256-QAM, 1024-QAM, BPSK, CCK, QPSK |
| Ethernet LAN data rates |
100,1000,2500 Mbit/s |
| Maximum data transfer rate |
5375 Mbit/s |
| MIMO |
Yes |
| Maximum data transfer rate (2.4 GHz) |
575 Mbit/s |
| Maximum data transfer rate (5 GHz) |
4800 Mbit/s |
| Ports & interfaces |
|---|
| USB connector type |
USB Type-A |
| USB 2.0 ports quantity |
1 |
| Ethernet LAN (RJ-45) ports |
2 |
| DC-in jack |
Yes |
| Power |
|---|
| Power consumption (typical) |
16 W |
| Power over Ethernet (PoE) |
Yes |
| Design |
|---|
| Placement |
Ceiling |
| Product colour |
White |
| Certification |
None |
| Cable lock slot |
Yes |
| Cable lock slot type |
Kensington |
| Antenna |
|---|
| Number of connectors |
4 |
| Antenna type |
External |
| Antenna connector type |
RP-SMA |
| Technical details |
|---|
| Compliance certificates |
Low Voltage Directive (LVD) |
| Certificates |
|---|
| Certification |
None |
| Compliance certificates |
Low Voltage Directive (LVD) |
| Weight & dimensions |
|---|
| Width |
7.87" (200 mm) |
| Depth |
7.87" (200 mm) |
| Weight |
28.6 oz (810 g) |
| Height |
1.81" (46 mm) |
| Operational conditions |
|---|
| Operating relative humidity (H-H) |
5 - 93% |
| Operating temperature (T-T) |
0 - 50 °C |
| Storage temperature (T-T) |
-40 - 70 °C |
| Storage relative humidity (H-H) |
5 - 93% |
