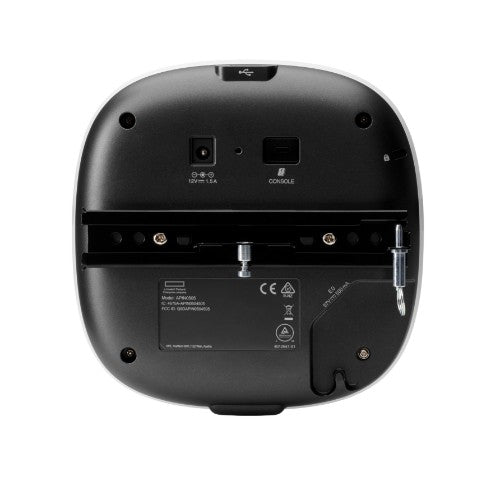

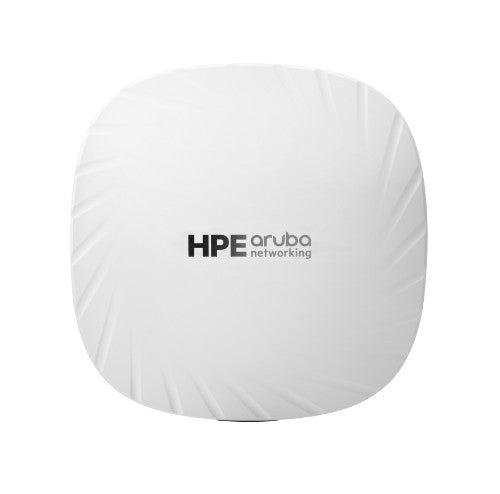

HPE Aruba Networking AP-505 (US) Dual Radio 2x2 802.11ax Internal Antennas Unified Campus AP
Save 41%
Description
HPE Aruba Networking AP-505 (US) Dual Radio 2x2 802.11ax Internal Antennas Unified Campus AP, 2.4 GHz, 5 GHz, 1774 Mbit/s, WPA, WPA2, WPA3, 10,100,1000 Mbit/s
Wi-Fi CERTIFIED™ with support for Wi-Fi 6 features such as OFDMA, bidirectional MU-MIMO, and target wait time (TWT) to drive improved efficiency. Handles multiple Wi-Fi 6 capable clients on each channel simultaneously, regardless of device or traffic type.
Enhanced wireless experience with HPE Aruba Networking ClientMatch technology that removes sticky client issues by steering a client to the access point where it receives the best radio signal.
Supports Bluetooth 5 and Zigbee wireless protocols through an integrated IoT radio, and third-party expansion with an integrated USB port.
HPE Aruba Networking Central Client Insights uses deep packet inspection to provide additional context and behavioral information that help verify devices are receiving proper policy enforcement and continuously monitor for rogue devices.
Offers stronger encryption and authentication with WPA3, protected credentials/keys storage for guest access with Enhanced Open, and user and IoT access policy enforcement firewalls (PEF).
WPA3 and Enhanced Open security increases enterprise-level security by providing stronger guest access protections without increasing complexity.
For enhanced device assurance, the access points include an installed Trusted Platform Module (TPM) for protected storage of credentials and keys, and boot code.
Reasons To Buy
Wi-Fi 6 Performance
HPE Aruba Networking 500 Series Campus Access Points deliver a maximum combined data rate of 1.49 Gbps with 2 spatial streams to meet the needs of low and medium density environments.Wi-Fi CERTIFIED™ with support for Wi-Fi 6 features such as OFDMA, bidirectional MU-MIMO, and target wait time (TWT) to drive improved efficiency. Handles multiple Wi-Fi 6 capable clients on each channel simultaneously, regardless of device or traffic type.
Enhanced wireless experience with HPE Aruba Networking ClientMatch technology that removes sticky client issues by steering a client to the access point where it receives the best radio signal.
Cloud Management and Ready for IoT
HPE Aruba Networking 500 Series Campus Access Points can managed with HPE Aruba Networking Central, an AI-powered solution that simplifies IT operations, improves agility, and reduces costs by unifying management of campus, branch, remote, data center, and IoT networks from one dashboard.Supports Bluetooth 5 and Zigbee wireless protocols through an integrated IoT radio, and third-party expansion with an integrated USB port.
HPE Aruba Networking Central Client Insights uses deep packet inspection to provide additional context and behavioral information that help verify devices are receiving proper policy enforcement and continuously monitor for rogue devices.
Simple and Secure Access
HPE Aruba Networking 500 Series Campus Access Points offer enhanced security with Dynamic Segmentation to remove the time-consuming and error-prone task of managing complex and static VLANs, ACLs, and subnets by dynamically assigning policies and keeping traffic protected and separated.Offers stronger encryption and authentication with WPA3, protected credentials/keys storage for guest access with Enhanced Open, and user and IoT access policy enforcement firewalls (PEF).
WPA3 and Enhanced Open security increases enterprise-level security by providing stronger guest access protections without increasing complexity.
For enhanced device assurance, the access points include an installed Trusted Platform Module (TPM) for protected storage of credentials and keys, and boot code.
Description
HPE Aruba Networking AP-505 (US) Dual Radio 2x2 802.11ax Internal Antennas Unified Campus AP. 2.4 GHz, 5 GHz, Maximum data transfer rate: 1774 Mbit/s. Security algorithms: WPA, WPA2, WPA3. Ethernet LAN data rates: 10,100,1000 Mbit/s. Power over Ethernet (PoE). Product color: White. Power consumption (max): 16.5 WSpecifications
| Data transmission | |
|---|---|
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Maximum data transfer rate | 1774 Mbit/s |
| Performance | |
| 2.4 GHz | Yes |
| 5 GHz | Yes |
| Auto MDI/MDI-X | Yes |
| Spread spectrum method | DSSS, OFDM, OFDMA |
| Networking standards | IEEE 802.11ax |
| Modulation | 16-QAM, 64-QAM, 256-QAM, 1024-QAM, BPSK, CCK, QPSK |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Certification | None |
| Maximum data transfer rate | 1774 Mbit/s |
| MIMO type | Multi User MIMO |
| MIMO | Yes |
| Wireless LAN features | |
| Modulation | 16-QAM, 64-QAM, 256-QAM, 1024-QAM, BPSK, CCK, QPSK |
| Network | |
| Spread spectrum method | DSSS, OFDM, OFDMA |
| Networking standards | IEEE 802.11ax |
| Security | |
| Cable lock slot | Yes |
| Security algorithms | WPA, WPA2, WPA3 |
| Features | |
| 2.4 GHz | Yes |
| 5 GHz | Yes |
| Auto MDI/MDI-X | Yes |
| Spread spectrum method | DSSS, OFDM, OFDMA |
| Networking standards | IEEE 802.11ax |
| Modulation | 16-QAM, 64-QAM, 256-QAM, 1024-QAM, BPSK, CCK, QPSK |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Maximum data transfer rate | 1774 Mbit/s |
| MIMO type | Multi User MIMO |
| MIMO | Yes |
| Maximum data transfer rate (2.4 GHz) | 574 Mbit/s |
| Maximum data transfer rate (5 GHz) | 1200 Mbit/s |
| Ports & interfaces | |
| USB connector type | USB Type-A |
| USB 2.0 ports quantity | 1 |
| Ethernet LAN (RJ-45) ports | 1 |
| Power | |
| Power consumption (max) | 16.5 W |
| Power over Ethernet (PoE) | Yes |
| Design | |
| Placement | Ceiling, Wall |
| Product colour | White |
| Certification | None |
| Cable lock slot | Yes |
| Cable lock slot type | Kensington |
| Antenna | |
| Antenna type | Internal |
| Antennas quantity | 2 |
| Antenna direction type | Omni-directional |
| Antenna features | Integrated antenna |
| Technical details | |
| Harmonized System (HS) code | 85176990 |
| Compliance certificates | Low Voltage Directive (LVD) |
| Certificates | |
| Certification | None |
| Compliance certificates | Low Voltage Directive (LVD) |
| Weight & dimensions | |
| Width | 6.3" (160 mm) |
| Depth | 6.34" (161 mm) |
| Weight | 17.6 oz (500 g) |
| Height | 1.46" (37 mm) |
| Package width | 7.6" (193 mm) |
| Package depth | 7.2" (183 mm) |
| Package height | 2.48" (63 mm) |
| Package weight | 22.8 oz (645 g) |
| Packaging data | |
| Package width | 7.6" (193 mm) |
| Package depth | 7.2" (183 mm) |
| Package height | 2.48" (63 mm) |
| Package weight | 22.8 oz (645 g) |
| Operational conditions | |
| Operating relative humidity (H-H) | 5 - 93% |
| Operating temperature (T-T) | 0 - 50 °C |
| Storage temperature (T-T) | -40 - 70 °C |
| Storage relative humidity (H-H) | 5 - 93% |
| Logistics data | |
| Harmonized System (HS) code | 85176990 |
