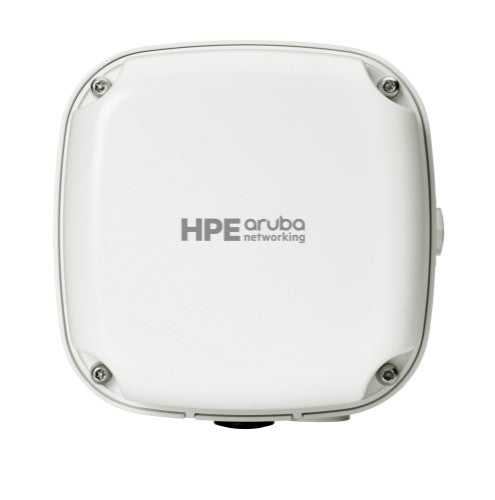

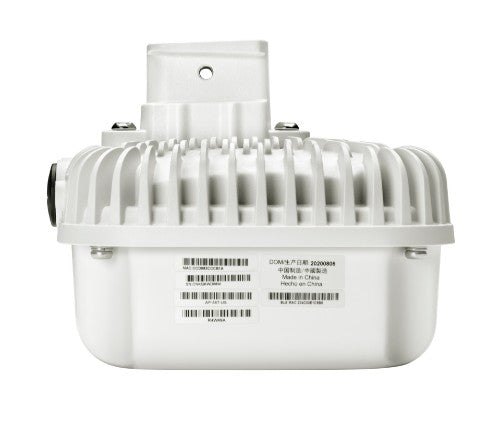

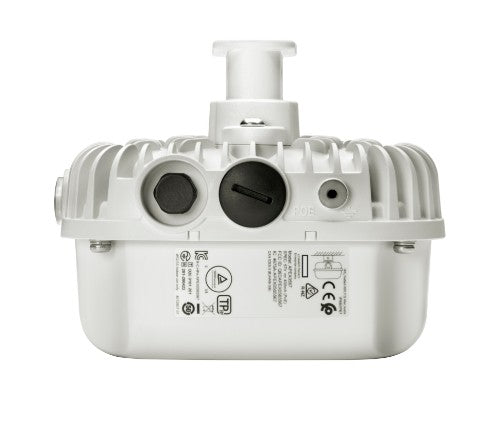

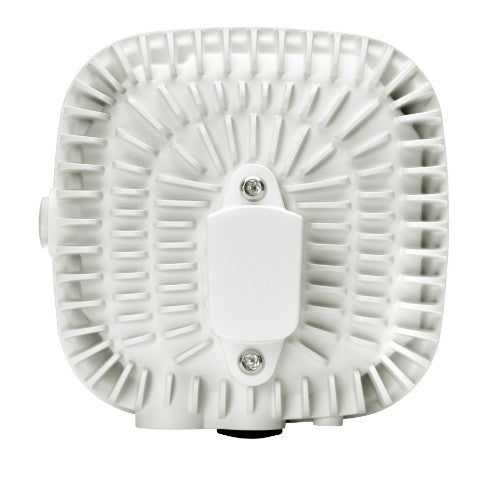

HPE Aruba Networking AP-567 (US) 802.11ax Dual 2x2 Radio Integrated Directional Antennas Outdoor AP

HPE Aruba Networking AP-567 (US) 802.11ax Dual 2x2 Radio Integrated Directional Antennas Outdoor AP, 2.4 GHz, 5 GHz, 1774 Mbit/s, WPA2, WPA3, 10,100,1000 Mbit/s

Reasons To Buy

Entry-level Outdoor Wi-Fi 6

HPE Aruba Networking 560 Series Outdoor Access Points are ideal for environmentally challenging locations and can endure extreme temperatures, persistent moisture, precipitation, airborne contaminants, dust, salt sprays, and maximum 165 mph wind speeds.
Weatherproof and temperature hardened, this series can handle temperatures ranging from -40˚C to +65˚C, including full solar loading.
With maximum aggregate data rate of 1.49 Gbps (HE80/HE20), the series delivers the speed and reliability needed for most environments.
It supports features such as orthogonal frequency-division multiple access (OFDMA), downlink MIMO (MU-MIMO), and target wait time (TWT).
Enhanced wireless experience with HPE Aruba Networking ClientMatch technology removes sticky client issues by steering a client to the AP where it receives one of the best radio signals.

IoT Ready

HPE Aruba Networking 560 Series Outdoor Access Points can serve as IoT platforms that bolster network security and provide coverage for a range of IoT devices without the need for network overlays.
The access point supports Bluetooth 5 and Zigbee wireless protocols through an integrated IoT radio.
Target wake time (TWT) improves battery life of IoT devices.
HPE Aruba Networking Central Client Insights uses deep packet inspection to provide additional context and behavioral information that help verify devices are receiving proper policy enforcement and continuously monitor for rogue devices.

Simple Access With Enhanced Security

The HPE Aruba Networking 560 Series Outdoor Access Points offer enhanced security with Dynamic Segmentation to remove the time-consuming and error-prone task of managing complex and static VLANs, ACLs, and subnets by dynamically assigning policies and keeping traffic protected and separated.
It offers stronger encryption and authentication with WPA3, protected credentials/keys storage for guest access with Enhanced Open, and user and IoT access policy enforcement firewalls.
The AP simplifies policy enforcement by using the policy enforcement firewall to encapsulate all traffic from the AP to the gateway (or mobility controller) for end-to-end encryption and inspection.
For enhanced device assurance, the access points include an installed Trusted Platform Module (TPM) for protected storage of credentials and keys, and boot code.

Description

HPE Aruba Networking AP-567 (US) 802.11ax Dual 2x2 Radio Integrated Directional Antennas Outdoor AP. 2.4 GHz, 5 GHz, Maximum data transfer rate: 1774 Mbit/s. Security algorithms: WPA2, WPA3. Ethernet LAN data rates: 10,100,1000 Mbit/s. Power over Ethernet (PoE). Product color: White

Specifications

Data transmission
Ethernet LAN data rates	10,100,1000 Mbit/s
Maximum data transfer rate	1774 Mbit/s
Performance
2.4 GHz	Yes
5 GHz	Yes
Auto MDI/MDI-X	Yes
Spread spectrum method	DSSS, OFDM, OFDMA
Networking standards	IEEE 802.15.4
Modulation	16-QAM, 64-QAM, 256-QAM, 1024-QAM, BPSK, CCK, QPSK
Ethernet LAN data rates	10,100,1000 Mbit/s
Certification	None
Maximum data transfer rate	1774 Mbit/s
MIMO type	Multi User MIMO
MIMO	Yes
Wireless LAN features
Modulation	16-QAM, 64-QAM, 256-QAM, 1024-QAM, BPSK, CCK, QPSK
Network
Spread spectrum method	DSSS, OFDM, OFDMA
Networking standards	IEEE 802.15.4
Features
2.4 GHz	Yes
5 GHz	Yes
Auto MDI/MDI-X	Yes
Spread spectrum method	DSSS, OFDM, OFDMA
Networking standards	IEEE 802.15.4
Modulation	16-QAM, 64-QAM, 256-QAM, 1024-QAM, BPSK, CCK, QPSK
Ethernet LAN data rates	10,100,1000 Mbit/s
Maximum data transfer rate	1774 Mbit/s
Bluetooth	Yes
Bluetooth version	5.0
MIMO type	Multi User MIMO
MIMO	Yes
Maximum data transfer rate (2.4 GHz)	574 Mbit/s
Maximum data transfer rate (5 GHz)	1200 Mbit/s
Security
Security algorithms	WPA2, WPA3
Ports & interfaces
USB connector type	USB Type-C
USB 2.0 ports quantity	0
Ethernet LAN (RJ-45) ports	1
Power
Power over Ethernet (PoE)	Yes
Design
Placement	Pole, Wall
Product colour	White
Certification	None
Antenna
Antenna type	Internal
Antenna gain level (max)	7 dBi
Antenna direction type	Directional
Antenna features	Integrated antenna
Technical details
Compliance certificates	Low Voltage Directive (LVD)
Certificates
Certification	None
Compliance certificates	Low Voltage Directive (LVD)
Weight & dimensions
Width	6.5" (165 mm)
Depth	6.5" (165 mm)
Weight	2.4 lbs (1.09 kg)
Height	4.33" (110 mm)
Operational conditions
Operating relative humidity (H-H)	5 - 95%
Operating temperature (T-T)	-40 - 55 °C
Storage temperature (T-T)	-40 - 70 °C
Operating altitude	0 - 118110.2" (0 - 3000 m)
