HPE Aruba Networking AP-505H (US) Dual Radio 802.11ax 2x2 1+4 Ethernet PSE USB Hospitality AP
Save 25%
Description
HPE Aruba Networking AP-505H (US) Dual Radio 802.11ax 2x2 1+4 Ethernet PSE USB Hospitality AP, 2.4 GHz, 5 GHz, 1487 Mbit/s, WPA, WPA2, WPA3, 10,100,1000,2500 Mbit/s
The AP provides Wi-Fi CERTIFIED™ with support for Wi-Fi 6 features such as OFDMA, bidirectional MU-MIMO, and target wait time (TWT) to drive improved efficiency. It handles multiple Wi-Fi 6 capable clients on each channel simultaneously, regardless of device or traffic type.
Enhanced wireless experience with HPE Aruba Networking ClientMatch technology removes sticky client issues by steering a client to the AP where it receives the best radio signal.
The AP manages with HPE Aruba Networking Central, an AI-powered solution that simplifies IT operations, improves agility, and reduces costs by unifying management of campus, branch, remote, data center, and IoT networks from one dashboard.
The AP-503H model has three 1 Gbps Ethernet ports (1 x 1 Gbps uplink, 2 x 1 Gbps downlink). The AP-505H model has five Ethernet ports (1 x 2.5 Gbps uplink, 4 x 1 Gbps downlink), supports PoE out on two ports, and includes a USB port.
Product bundles for remote desktop use include access point, desk mount, power adapter, and power cord (US and EU only).
Zero Touch Provisioning provides ease of implementation in branch offices and remote sites, without on-site technical expertise.
The AP simplifies deploying and managing IoT location services, asset-tracking services, security solutions, and IoT sensors.
HPE Aruba Networking Central client insights uses deep packet inspection to provide additional context and behavioral information that help verify devices are receiving proper policy enforcement and continuously monitor for rogue devices.
It offers stronger encryption and authentication with WPA3, protected credentials/keys storage for guest access with Enhanced Open, and user and IoT access policy enforcement firewalls (PEF).
WPA3 and Enhanced Open security increases enterprise-level security by providing stronger guest access protections without increasing complexity.
Trusted Platform Module (TPM) secures credentials, keys, and boot code.
Reasons To Buy
Wi-Fi 6 Performance for Hotels, Dorms, and Remote Offices
HPE Aruba Networking 500H Series Unified Hospitality Access Points deliver a maximum combined data rate of 1.5 Gbps with 2 spatial streams to meet the needs of low and medium density environments.The AP provides Wi-Fi CERTIFIED™ with support for Wi-Fi 6 features such as OFDMA, bidirectional MU-MIMO, and target wait time (TWT) to drive improved efficiency. It handles multiple Wi-Fi 6 capable clients on each channel simultaneously, regardless of device or traffic type.
Enhanced wireless experience with HPE Aruba Networking ClientMatch technology removes sticky client issues by steering a client to the AP where it receives the best radio signal.
Flexible Deployment and Unified Management

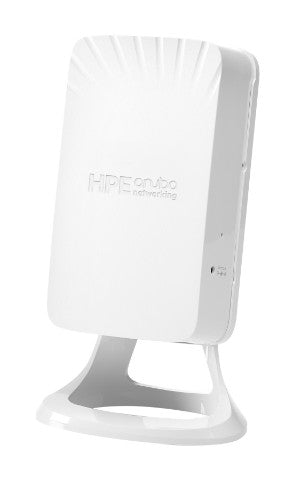

The HPE Aruba Networking 500H Series Unified Hospitality Access Points can be installed on a wall for hotel or residence hall environments or installed with optional desktop stand for tabletop deployment.The AP manages with HPE Aruba Networking Central, an AI-powered solution that simplifies IT operations, improves agility, and reduces costs by unifying management of campus, branch, remote, data center, and IoT networks from one dashboard.
The AP-503H model has three 1 Gbps Ethernet ports (1 x 1 Gbps uplink, 2 x 1 Gbps downlink). The AP-505H model has five Ethernet ports (1 x 2.5 Gbps uplink, 4 x 1 Gbps downlink), supports PoE out on two ports, and includes a USB port.
Product bundles for remote desktop use include access point, desk mount, power adapter, and power cord (US and EU only).
Zero Touch Provisioning provides ease of implementation in branch offices and remote sites, without on-site technical expertise.
Ready for IoT
The HPE Aruba Networking 500H Series Unified Hospitality Access Points support [1] Bluetooth 5 and Zigbee wireless protocols through an integrated IoT radio. The AP-505H model also has an integrated USB port to support a range of IoT devices.The AP simplifies deploying and managing IoT location services, asset-tracking services, security solutions, and IoT sensors.
HPE Aruba Networking Central client insights uses deep packet inspection to provide additional context and behavioral information that help verify devices are receiving proper policy enforcement and continuously monitor for rogue devices.
Simple and Secure Access
The HPE Aruba Networking 500H Series Unified Hospitality Access Points offer enhanced security with Dynamic Segmentation to remove time-consuming and error-prone task of managing complex and static VLANs, ACLs and subnets by dynamically assigning policies and keeping traffic protected and separated.It offers stronger encryption and authentication with WPA3, protected credentials/keys storage for guest access with Enhanced Open, and user and IoT access policy enforcement firewalls (PEF).
WPA3 and Enhanced Open security increases enterprise-level security by providing stronger guest access protections without increasing complexity.
Trusted Platform Module (TPM) secures credentials, keys, and boot code.
Description
HPE Aruba Networking AP-505H (US) Dual Radio 802.11ax 2x2 1+4 Ethernet PSE USB Hospitality AP. 2.4 GHz, 5 GHz, Maximum data transfer rate: 1487 Mbit/s. Security algorithms: WPA, WPA2, WPA3. Ethernet LAN data rates: 10,100,1000,2500 Mbit/s. Power over Ethernet (PoE). Product color: White. Power consumption (max): 50 WSpecifications
| Data transmission | |
|---|---|
| Ethernet LAN data rates | 10,100,1000,2500 Mbit/s |
| Maximum data transfer rate | 1487 Mbit/s |
| Performance | |
| 2.4 GHz | Yes |
| 5 GHz | Yes |
| Auto MDI/MDI-X | Yes |
| Spread spectrum method | DSSS, OFDM, OFDMA |
| Networking standards | IEEE 802.11a, IEEE 802.11ac, IEEE 802.11ax, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.3af, IEEE 802.3at, IEEE 802.3az, IEEE 802.3bt, IEEE 802.3bz |
| Modulation | 16-QAM, 64-QAM, 256-QAM, 1024-QAM, BPSK, CCK, QPSK |
| Ethernet LAN data rates | 10,100,1000,2500 Mbit/s |
| Certification | None |
| Maximum data transfer rate | 1487 Mbit/s |
| MIMO type | Multi User MIMO |
| MIMO | Yes |
| Wireless LAN features | |
| Modulation | 16-QAM, 64-QAM, 256-QAM, 1024-QAM, BPSK, CCK, QPSK |
| Network | |
| Spread spectrum method | DSSS, OFDM, OFDMA |
| Networking standards | IEEE 802.11a, IEEE 802.11ac, IEEE 802.11ax, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.3af, IEEE 802.3at, IEEE 802.3az, IEEE 802.3bt, IEEE 802.3bz |
| Features | |
| 2.4 GHz | Yes |
| 5 GHz | Yes |
| Auto MDI/MDI-X | Yes |
| Spread spectrum method | DSSS, OFDM, OFDMA |
| Networking standards | IEEE 802.11a, IEEE 802.11ac, IEEE 802.11ax, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.3af, IEEE 802.3at, IEEE 802.3az, IEEE 802.3bt, IEEE 802.3bz |
| Modulation | 16-QAM, 64-QAM, 256-QAM, 1024-QAM, BPSK, CCK, QPSK |
| Ethernet LAN data rates | 10,100,1000,2500 Mbit/s |
| Maximum data transfer rate | 1487 Mbit/s |
| Bluetooth | Yes |
| Bluetooth version | 5.0 |
| MIMO type | Multi User MIMO |
| MIMO | Yes |
| Maximum data transfer rate (2.4 GHz) | 287 Mbit/s |
| Maximum data transfer rate (5 GHz) | 1200 Mbit/s |
| Security | |
| Security algorithms | WPA, WPA2, WPA3 |
| Ports & interfaces | |
| USB connector type | USB Type-A |
| USB 2.0 ports quantity | 1 |
| Ethernet LAN (RJ-45) ports | 5 |
| Power | |
| Power consumption (max) | 50 W |
| Power over Ethernet (PoE) | Yes |
| Design | |
| Placement | Table, Wall |
| Product colour | White |
| Certification | None |
| Antenna | |
| Antenna type | Internal |
| Antennas quantity | 2 |
| Antenna gain level (max) | 5.4 dBi |
| Antenna direction type | Semi-directional |
| Antenna features | Integrated antenna |
| Technical details | |
| Compliance certificates | Low Voltage Directive (LVD) |
| Certificates | |
| Certification | None |
| Compliance certificates | Low Voltage Directive (LVD) |
| Weight & dimensions | |
| Width | 3.39" (86 mm) |
| Depth | 1.85" (47 mm) |
| Weight | 12.7 oz (360 g) |
| Height | 5.91" (150 mm) |
| Operational conditions | |
| Operating relative humidity (H-H) | 5 - 93% |
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -40 - 70 °C |
