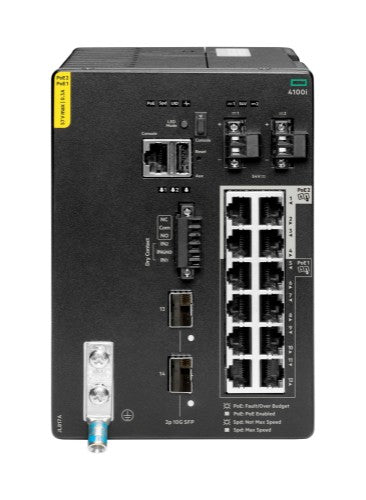

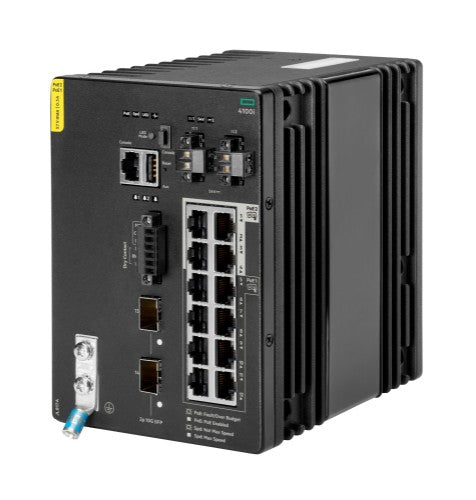

HPE Aruba Networking CX 4100i 12p 1GbE 8p Class4 PoE and 4p Class6 PoE 2p SFP+ DIN Mount Switch

HPE Aruba Networking CX 4100i 12p 1GbE 8p Class4 PoE and 4p Class6 PoE 2p SFP+ DIN Mount Switch, Managed, L2, Gigabit Ethernet (10/100/1000), Power over Ethernet (PoE), Rack mounting, 4U

Reasons To Buy

Ruggedized Access Switch Series

The HPE Aruba Networking CX 4100i Switch Series provides IP30 Ethernet connectivity with high speed uplinks, 30W and 60W PoE, to securely extend the enterprise network and support IoT in harsh environments.
Uses the HPE Aruba Networking CX Switch Operating System (AOS-CX) for a simpler, more consistent operator experience with capabilities fit for ruggedized access.

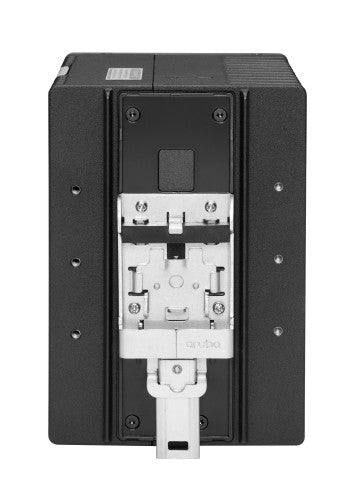

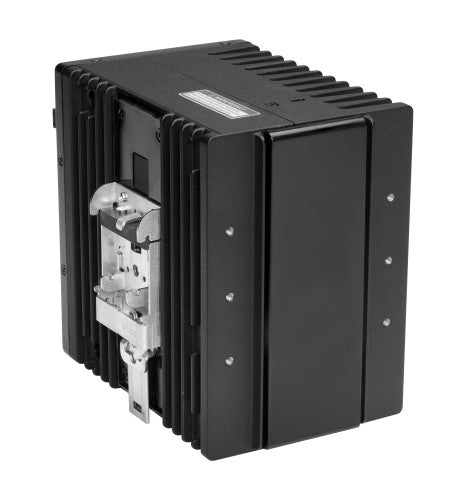

Achieve versatile deployment with fanless 12 port DIN rail mount and 24 port 1U rack mount models with built-in 1/10 GbE uplinks and up to 360W Class 4 and Class 6 PoE.
Fully-managed enterprise class switches deliver Layer 2 capabilities with support for static routing, ACLs, robust QoS, traffic prioritization, and IPv6 support.
Simplifies ownership with no switch software licensing or subscriptions required.

Performance and Power

The HPE Aruba Networking CX 4100i Switch Series is designed with ASICs that deliver very low latency, increased packet buffering, and adaptive power consumption.
Deploy IoT devices and wireless access points in harsh environments with models that support up to 360W IEEE 802.3at Class 4 and IEEE 802.3.bt Class 6 Power over Ethernet.
Built-in wire speed 1/10GbE uplinks remove bottlenecks at the access layer where devices connect.
Operational in extended temperatures from -40 to 70 degrees Celsius using HPE Aruba Networking's industrial transceivers.

Simplified Configuration and Management

The CX 4100i series provides flexibility to manage and simplify configurations with HPE Aruba Networking Switch Multi-Edit Software, easy to use built-in web GUI, or industry standard CLI.
HPE Aruba Networking Switch Multi-Edit Software introduces automation that allows for rapid network-wide changes and verifies policy conformance post network updates.
Ready for software-defined networking with REST APIs for fine-grained programmability of network tasks.

Smarter Segmentation

The HPE Aruba Networking CX 4100i series supports Dynamic Segmentation that automatically applies and enforces user, device, and application-aware policies on wired and wireless infrastructures.
Automated device profiling, role-based access control, and Layer 7 firewall features deliver enhanced visibility and performance for a better overall experience for both IT and end-users alike.
Reduces time-consuming and error-prone task of adds, moves and changes.

Description

HPE Aruba Networking CX 4100i 12p 1GbE 8p Class4 PoE and 4p Class6 PoE 2p SFP+ DIN Mount Switch. Switch type: Managed, Switch layer: L2. Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000), Basic switching RJ-45 Ethernet ports quantity: 12, Console port: RJ-45/USB Type-C. MAC address table: 8192 entries, Switching capacity: 64 Gbit/s. Networking standards: IEEE 802.1D, IEEE 802.1Q, IEEE 802.1p, IEEE 802.1s, IEEE 802.1w, IEEE 802.3, IEEE 802.3ab, IEEE.... DC input voltage: 12 - 48 V. Power over Ethernet (PoE). Rack mounting, Form factor: 4U

Specifications

Management features
Switch type	Managed
Quality of Service (QoS) support	Yes
Multicast support	Yes
Switch layer	L2
Ports & interfaces
SFP+ module slots quantity	2
Basic switching RJ-45 Ethernet ports quantity	12
Basic switching RJ-45 Ethernet ports type	Gigabit Ethernet (10/100/1000)
Installed SFP modules quantity	0
Installed SFP+ modules quantity	0
Console port	RJ-45/USB Type-C
Network
Networking standards	IEEE 802.1D, IEEE 802.1Q, IEEE 802.1p, IEEE 802.1s, IEEE 802.1w, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3af, IEEE 802.3at, IEEE 802.3az, IEEE 802.3bt, IEEE 802.3x
VLAN support	Yes
Spanning tree protocol	Yes
Port mirroring	Yes
10G support	Yes
IGMP snooping	Yes
Data transmission
Throughput	46 Mpps
Latency (1 Gbps)	2.39 µs
Latency (10 Gbps)	2.038 µs
Packet buffer memory	12.38 MB
MAC address table	8192 entries
Switching capacity	64 Gbit/s
Jumbo frames support	Yes
Security
Authentication	MAC-based authentication, Web-based authentication
SSH/SSL support	Yes
Security algorithms	SSH, SSH-2
IGMP snooping	Yes
Access Control List (ACL)	Yes
Authentication type	RADIUS, TACACS+
DHCP features	DHCP client
Multicast features
Multicast support	Yes
Design
Form factor	4U
Product colour	Black
Stackable	No
Rack mounting	Yes
Performance
Processor frequency	1016 MHz
Memory type	DDR3-SDRAM
Internal memory	4096 MB
Flash memory	32000 MB
Built-in processor	Yes
Processor model	ARM Cortex-A9
Packet buffer memory	12.38 MB
Stackable	No
Harmonized System (HS) code	85176990
Power
Power supply included	No
AC input voltage	100 - 240 V
Redundant power supply (RPS) support	Yes
DC input voltage	12 - 48 V
Power source	AC
Power over Ethernet (PoE)
Total Power over Ethernet (PoE) budget	360 W
Power over Ethernet (PoE)	Yes
Operational conditions
Storage relative humidity (H-H)	5 - 95%
Operating temperature (T-T)	-40 - 60 °C
Operating relative humidity (H-H)	5 - 95%
Operating altitude	0 - 165354.3" (0 - 4200 m)
Non-operating altitude	0 - 181102.4" (0 - 4600 m)
Virtual LAN features
VLAN support	Yes
Weight & dimensions
Width	4.45" (113 mm)
Depth	6.41" (162.9 mm)
Height	6.3" (160 mm)
Weight	8.18 lbs (3.71 kg)
Technical details
Form factor	4U
Product colour	Black
Stackable	No
Processor frequency	1016 MHz
Rack mounting	Yes
Built-in processor	Yes
Memory
Packet buffer memory	12.38 MB
Memory type	DDR3-SDRAM
Internal memory	4096 MB
Flash memory	32000 MB
Logistics data
Harmonized System (HS) code	85176990
