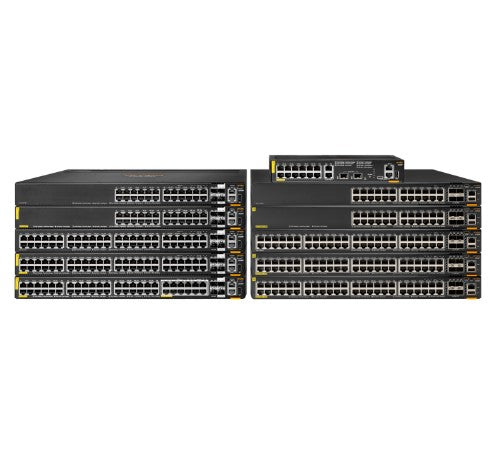

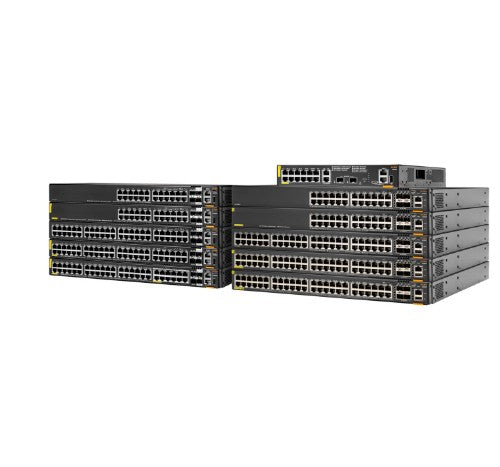

HPE Aruba Networking 6200F 12G Class4 PoE 2G/2SFP+ 139W, Managed, L3, Gigabit Ethernet (10/100/1000), Power over Ethernet (PoE), Rack mounting, 1U
Description
HPE Aruba Networking 6200F 12G Class4 PoE 2G/2SFP+ 139W. Switch type: Managed, Switch layer: L3. Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000), Basic switching RJ-45 Ethernet ports quantity: 12, Console port: RJ-45/USB Type-C. Switching capacity: 68 Gbit/s. Networking standards: IEEE 802.1AX, IEEE 802.1D, IEEE 802.1Q, IEEE 802.1ab, IEEE 802.1ak, IEEE 802.1p, IEEE 802.1s, IEEE.... Power over Ethernet (PoE). Rack mounting, Form factor: 1U
Specifications
| Management features |
|---|
| Switch type |
Managed |
| Quality of Service (QoS) support |
Yes |
| Multicast support |
Yes |
| Switch layer |
L3 |
| Ports & interfaces |
|---|
| SFP+ module slots quantity |
2 |
| Basic switching RJ-45 Ethernet ports quantity |
12 |
| Basic switching RJ-45 Ethernet ports type |
Gigabit Ethernet (10/100/1000) |
| Installed SFP modules quantity |
0 |
| Installed SFP+ modules quantity |
0 |
| Console port |
RJ-45/USB Type-C |
| Network |
|---|
| Networking standards |
IEEE 802.1AX, IEEE 802.1D, IEEE 802.1Q, IEEE 802.1ab, IEEE 802.1ak, IEEE 802.1p, IEEE 802.1s, IEEE 802.1t, IEEE 802.1v, IEEE 802.1w, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3ae, IEEE 802.3af, IEEE 802.3at, IEEE 802.3az, IEEE 802.3x, IEEE 802.3z |
| VLAN support |
Yes |
| Spanning tree protocol |
Yes |
| Number of VLANs |
4094 |
| Link aggregation |
Yes |
| Flow control support |
Yes |
| Auto MDI/MDI-X |
Yes |
| 10G support |
Yes |
| IGMP snooping |
Yes |
| Data transmission |
|---|
| Throughput |
45.1 Mpps |
| Latency (1 Gbps) |
2.28 µs |
| Latency (10 Gbps) |
1.46 µs |
| Switching capacity |
68 Gbit/s |
| Jumbo frames support |
Yes |
| Number of VLANs |
4094 |
| Security |
|---|
| SSH/SSL support |
Yes |
| IGMP snooping |
Yes |
| Access Control List (ACL) |
Yes |
| Authentication type |
RADIUS, TACACS+ |
| DHCP features |
DHCP server |
| Multicast features |
|---|
| Multicast support |
Yes |
| Protocols |
|---|
| Routing protocols |
OSPF, OSPFv2, OSPFv3, RIP-2, RIPng |
| IPv4 & IPv6 features |
IPv4/IPv6 access-control list (ACL) |
| Design |
|---|
| Form factor |
1U |
| Stackable |
Yes |
| Rack mounting |
Yes |
| Performance |
|---|
| Virtual stacking (units) |
8 |
| Processor frequency |
1200 MHz |
| Built-in processor |
Yes |
| Processor model |
ARM Cortex-A72 |
| Stackable |
Yes |
| Power |
|---|
| Power supply included |
Yes |
| AC input voltage |
100 - 240 V |
| AC input frequency |
50 - 60 Hz |
| Power consumption (typical) |
170 W |
| Power source |
AC |
| Power over Ethernet (PoE) |
|---|
| Total Power over Ethernet (PoE) budget |
139 W |
| Power over Ethernet (PoE) |
Yes |
| Operational conditions |
|---|
| Storage temperature (T-T) |
-40 - 70 °C |
| Storage relative humidity (H-H) |
5 - 95% |
| Operating temperature (T-T) |
0 - 45 °C |
| Operating relative humidity (H-H) |
5 - 95% |
| Virtual LAN features |
|---|
| VLAN support |
Yes |
| Number of VLANs |
4094 |
| Weight & dimensions |
|---|
| Width |
17.4" (442.5 mm) |
| Depth |
12.8" (325.4 mm) |
| Height |
1.73" (43.9 mm) |
| Weight |
11.2 lbs (5.09 kg) |
| IPv4 & IPv6 features |
|---|
| IPv4 & IPv6 features |
IPv4/IPv6 access-control list (ACL) |
| Technical details |
|---|
| Virtual stacking (units) |
8 |
| Form factor |
1U |
| Stackable |
Yes |
| Processor frequency |
1200 MHz |
| Rack mounting |
Yes |
| Built-in processor |
Yes |
