4 X DDR5 9200+ MT/s (OC, LGA 1851, 14+1+1+1 Duet Rail Power System 55A DrMOS, 5G LAN, Wi-Fi 7, 1x HDMI
Key Features
- Support Intel® Core™ Ultra Processors (Series 2) for LGA 1851 socket
- Supports DDR5 Memory, Dual Channel DDR5 9200+ MT/s (OC)
- Ultra Performance: 14+1+1+1 Duet Rail Power System 55A DrMOS, dual 8-pin CPU power connectors, Core Boost, Memory Boost, 6-layer PCB made by 2oz thickened copper and server-grade level material
- Frozr Guard: Extended Heatsink, MOSFET thermal pads rated for 7W/mK, additional choke thermal pads and EZ M.2 Shield Frozr II are built for high performance system and non-stop experience
- EZ DIY: EZ M.2 Shield Frozr II, EZ M.2 Clip II, EZ PCIe Clip II and EZ Antenna
- Lightning Fast Game experience: PCIe 5.0 slot, Lightning Gen 5 x4 M.2
- Ultra Connect: Thunderbolt™ 4 port, Intel® Killer™ 5G LAN & Intel® Killer™ Wi-Fi 7 Solution - the latest solution for professional and multimedia use, delivering secure, stable, and high-speed networking and data transmission
- Audio Boost: Reward your ears with studio grade sound quality for the most immersive gaming experience
Description
Z890 GAMING PLUS WIFIZ890 GAMING PLUS WIFI is designed with durable components to provide great gaming experience. Designed with Killer Wi-Fi 7 and 5G LAN, Thunderbolt 4, PCIe 5.0 solutions, Supplemental PCIe Power and exclusive EZ DIY features, it's ready for 24/7 non-stop gaming of Intel Core Ultra processors.
MSI motherboards are designed with advanced hardware and technology, well-supporting the demanding computing usage of gaming and AI. Moreover, we also introduce AI to MSI Center and BIOS, making everything more effortless than before.
14+1+1+1 DRPS POWER DESIGNUnleash and sustain maximum performance with a flagship VRM design built with a total of 14+1+1+1 digital power phases. Combining dual power connectors and 55A DrMOS, Z890 GAMING PLUS WIFI is ready for the challenge of high-end processors.
HIGH-BANDWIDTH AND LOW-LATENCY NETWORKMSI's premium network solution provides incredible data transfer speed for demanding users.
Specifications
| Internal I/O |
|---|
| Number of M.2 (M) slots |
4 |
| USB 3.2 Gen 2 (3.1 Gen 2) connectors |
1 |
| Total number of SATA connectors |
4 |
| Supported storage drive interfaces |
M.2, SATA III |
| USB 2.0 connectors |
4 |
| USB 3.2 Gen 1 (3.1 Gen 1) connectors |
4 |
| mSATA ports quantity |
0 |
| Number of SATA connectors |
0 |
| Number of SATA III connectors |
4 |
| Number of SATA II connectors |
0 |
| EPS power connector (8-pin) |
Yes |
| ATX Power connector (24-pin) |
Yes |
| Number of EPS power connectors (8-pin) |
1 |
| Technical details |
|---|
| Motherboard chipset family |
Intel |
| Motherboard chipset |
Intel Z890 |
| Supported processor sockets |
Intel LGA1851 |
| On-board graphics card |
No |
| HDMI version |
2.1 |
| Motherboard form factor |
ATX |
| Component for |
PC |
| Total number of SATA connectors |
4 |
| Maximum internal memory supported by processor |
256 GB |
| Audio |
|---|
| Audio output channels |
7.1 channels |
| Performance |
|---|
| Number of HDDs supported |
8 |
| Supported storage drive types |
HDD & SSD |
| Motherboard chipset family |
Intel |
| Motherboard chipset |
Intel Z890 |
| RAID levels |
0, 1, 5, 10 |
| Windows operating systems supported |
Windows 11 |
| Supported processor sockets |
Intel LGA1851 |
| Audio output channels |
7.1 channels |
| Motherboard form factor |
ATX |
| Component for |
PC |
| Processor |
|---|
| Processor manufacturer |
Intel |
| Maximum internal memory supported by processor |
256 GB |
| Compatible processor series |
Intel Core Ultra (Series 2) |
| Supported processor sockets |
Intel LGA1851 |
| Processor socket |
LGA 1851 (Socket V1) |
| Memory |
|---|
| Number of memory slots |
4 |
| Memory slots type |
DIMM |
| Supported memory types |
DDR5-SDRAM |
| Memory channels |
Dual-channel |
| Supported memory clock speeds |
6400,9200 MHz |
| Maximum internal memory |
256 GB |
| Supported memory clock speed (max) |
9200 MHz |
| ECC сompatibility |
Non-ECC |
| Storage controllers |
|---|
| Number of HDDs supported |
8 |
| Supported storage drive types |
HDD & SSD |
| Supported storage drive interfaces |
M.2, SATA III |
| RAID levels |
0, 1, 5, 10 |
| Number of storage drives supported |
4 |
| RAID support |
Yes |
| Graphics |
|---|
| On-board graphics card |
No |

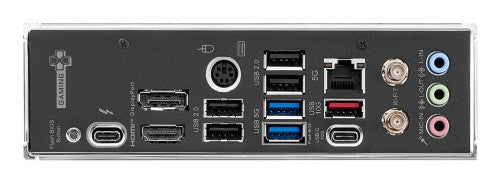

| Rear panel I/O ports |
|---|
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity |
2 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity |
0 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity |
1 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity |
1 |
| DisplayPort version |
1.4 |
| USB 2.0 ports quantity |
4 |
| VGA (D-Sub) ports quantity |
0 |
| Thunderbolt ports quantity |
1 |
| HDMI version |
2.1 |
| HDMI ports quantity |
1 |
| Ethernet LAN (RJ-45) ports |
1 |
| DVI-D ports quantity |
0 |
| DisplayPorts quantity |
1 |
| Network |
|---|
| Ethernet LAN |
Yes |
| Wi-Fi |
Yes |
| Wi-Fi standards |
802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax), Wi-Fi 6E (802.11ax), Wi-Fi 7 (802.11be) |
| Ethernet interface type |
5 Gigabit Ethernet |
| Bluetooth |
Yes |
| Bluetooth version |
5.4 |
| Top Wi-Fi standard |
Wi-Fi 7 (802.11be) |
| WLAN controller model |
Killer Wi-Fi 7 BE1750 |
| Features |
|---|
| Motherboard chipset family |
Intel |
| Motherboard chipset |
Intel Z890 |
| Windows operating systems supported |
Windows 11 |
| Supported processor sockets |
Intel LGA1851 |
| Audio output channels |
7.1 channels |
| Motherboard form factor |
ATX |
| Component for |
PC |
| Audio chip |
Realtek ALC897 |
| Product colour |
Black |
| Expansion slots |
|---|
| Number of M.2 (M) slots |
4 |
| PCI Express x1 (Gen 4.x) slots |
1 |
| PCI Express x16 (Gen 5.x) slots |
1 |
| PCI Express x4 (Gen 4.x) slots |
2 |
| Software |
|---|
| Windows operating systems supported |
Windows 11 |
| Weight & dimensions |
|---|
| Width |
9.6" (243.8 mm) |
| Depth |
12" (304.8 mm) |
| Other features |
|---|
| mSATA ports quantity |
0 |
| PCI Express x1 (Gen 4.x) slots |
1 |
