Swingout Mount for Flat-Panel Displays up to 175 lb./80 kg
Description

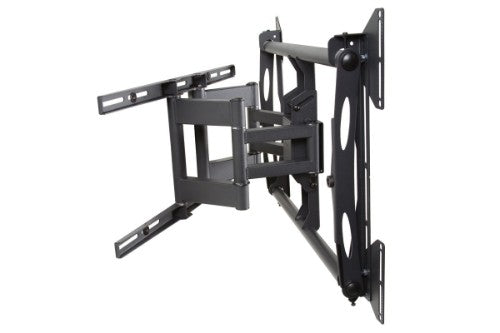

The AM175 is a swingout mount for flat-panel displays up to 175 lb./80 kg. Typically fits displays ranging from 42 - 63 in. or displays with a mounting pattern of 200 x 200 mm to 650 x 820 mm. The AM175 allows up to 45° of swivel, 10° of tilt and extends 3.2 to 16 in. from the wall.
Features- Combine with INW-AM325 in-wall box for a flush mount installation
- Patented Griplates™ (US Patent number 8,035,757 B2) support the flat-panel and holds the display tight on its mounting brackets
- 10° of tilt and up to 45° of swivel
- Pull out arms extend 3.2 - 16 in. from the wall
- For flat-panel displays up to 175 lb.
Specifications
| Mounting |
|---|
| Mounting type |
Wall |
| Minimum screen size |
42" |
| Minimum VESA mount |
7.87 x 7.87" (200 x 200 mm) |
| Maximum VESA mount |
7.87 x 7.87" (200 x 200 mm) |
| Maximum screen size |
70" |
| Maximum weight capacity |
175.3 lbs (79.5 kg) |
| Ergonomics |
|---|
| Tilt angle range |
0 - 10° |
| Swivel angle range |
0 - 45° |
| Distance to the wall (max) |
16" (40.6 cm) |
| Technical details |
|---|
| Number of products included |
1 pc(s) |
| Distance to the wall (max) |
16" (40.6 cm) |
| Product colour |
Black |
| Mounting type |
Wall |
| Design |
|---|
| Product colour |
Black |
| Weight & dimensions |
|---|
| Width |
30.2" (767 mm) |
| Height |
21.6" (548 mm) |
| Weight |
42.1 lbs (19.1 kg) |
| Other features |
|---|
| Mounting type |
Wall |
| Number of products included |
1 pc(s) |
