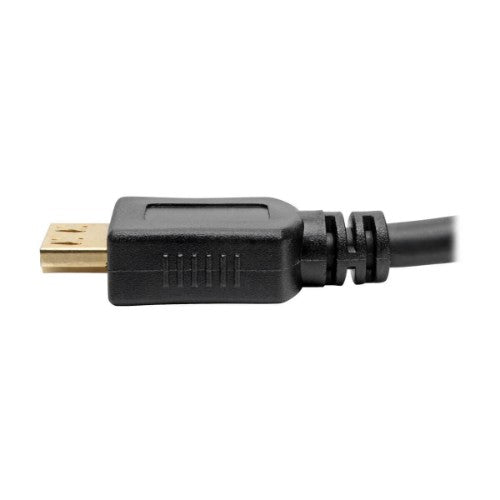

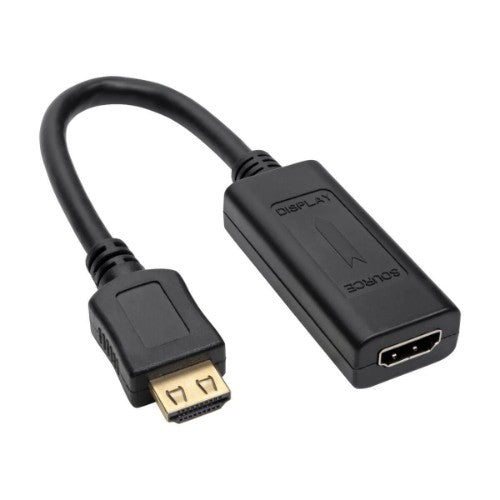

Tripp Lite B123-001 AV extender AV repeater Black

HDMI Signal Booster / Extender Cable, 1920 x 1200 (1080p) 24Hz, Up to 150 ft. (45 m), (HDMI M/F), 1 ft, TAA

Key Features

• Extend a 1080p @ 24Hz (or 1920 x 1200) HDMI signal up to 150-ft. (45.72 m) from the source
• When extending a 1080p @ 24Hz (or 1920 x 1200) signal more than 75-ft. (22.86 m), use cable made with 24Awg wiring, such as the P568-100-HD
• 24Awg HDMI cable is also needed when extending a 3D signal more than 50-ft. (15.24 m). A 3D signal can be extended up to 125-ft. (38.1 m) using 24Awg HDMI cable
• Supports DTS-HD, Dolby True HD and 7.1 Channel Surround Sound Audio
• No external power required in most installations

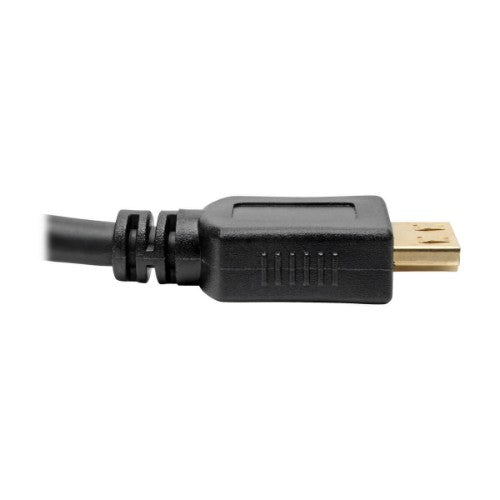

• Built-in HDMI cable features a latching connector for a more secure connection
• Compliant with the Federal Trade Agreements Act (TAA) for GSA Schedule purchases

Description

The B123-001 HDMI Signal Extender increases the distance a 1080p at 24 Hz (or 1920 x 1200) signal can be transmitted beyond the recommended 16 feet (4.9 meters). It supports computer video resolutions up to 1920 x 1200 and HD resolutions up to 1080p at 24 Hz at a maximum distance of 150 feet (45.7 meters) from the source. Use P568-Series HDMI cables in most applications. When extending a 1080p at 24 Hz (or 1920 x 1200) signal more than 75 feet (22.9 meters), use cable made with 24 AWG wiring, such as the P568-100-HD. 24 AWG HDMI cable is also needed when extending a 3D signal more than 50 feet (15.2 meters). A 3D signal can be extended up to 125 feet (38.1 meters) using 24 AWG HDMI cable. Simply connect the longer cable between the source and the B123-001, and then connect the built-in cable to the monitor. The built-in HDMI cable features a latching connector for a more secure connection. Software or drivers are not required. HDCP compliant. Compatible with the Federal Trade Agreements Act (TAA) for GSA Schedule purchases.

Specifications

Features
Type	AV repeater
Maximum resolution	1920 x 1200 pixels
Cable types supported	Cat5, Cat5e
Maximum transfer distance	1800" (45.7 m)
Supported video modes	1080p
Cable length	11.8" (0.3 m)
Product colour	Black
Ports & interfaces
HDMI in	1
Number of HDMI outputs	1
Packaging data
Package depth	4.8" (121.9 mm)
Package width	6.14" (156 mm)
Package height	1.3" (33 mm)
Package weight	1.76 oz (50 g)
Technical details
Connector 2	HDMI
Connector 1	HDMI
Country of origin	Taiwan
Quantity	1
Compliance certificates	RoHS
Logistics data
Master (outer) case width	13.5" (342.9 mm)
Master (outer) case length	6.42" (163.1 mm)
Master (outer) case height	5.35" (135.9 mm)
Master (outer) case gross weight	24.3 oz (690 g)
Products per master (outer) case	10 pc(s)
Master (outer) case GTIN (EAN/UPC)	10037332141054
