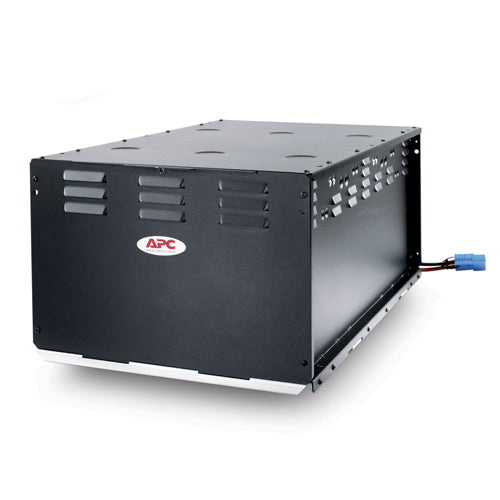

Smart-UPS Ultra Battery Pack 48V
Description
- Hot-swappable batteries
Ensures clean, uninterrupted power to protected equipment while batteries are being replaced
- User-replaceable batteries
Increases availability by allowing a trained user to perform upgrades and replacements of the batteries reducing Mean Time to Repair (MTTR)
- Plug-and-Play external batteries
Ensures clean, uninterrupted power to the loads when adding extra runtime to the UPS.
Specifications
| Battery |
|---|
| Battery capacity |
3360 Ah |
| Battery technology |
Sealed Lead Acid (VRLA) |
| Design |
|---|
| Product colour |
Black |
| Certification |
RoHS |
| Operational conditions |
|---|
| Operating temperature (T-T) |
0 - 40 °C |
| Storage temperature (T-T) |
-15 - 45 °C |
| Operating relative humidity (H-H) |
0 - 95% |
| Storage relative humidity (H-H) |
0 - 95% |
| Operating altitude |
0 - 118110.2" (0 - 3000 m) |
| Technical details |
|---|
| Harmonized System (HS) code |
85078000 |
| Packaging data |
|---|
| Package dimensions (WxDxH) |
20 x 33 x 17" (508 x 838 x 432 mm) |
| Package weight |
314.6 lbs (142.7 kg) |
| Certificates |
|---|
| Certification |
RoHS |
| Weight & dimensions |
|---|
| Weight |
280.6 lbs (127.3 kg) |
| Package weight |
314.6 lbs (142.7 kg) |
| Logistics data |
|---|
| Harmonized System (HS) code |
85078000 |
| Other features |
|---|
| Dimensions (WxDxH) |
17.6 x 29.7 x 12.2" (447 x 754 x 310 mm) |
| Package dimensions (WxDxH) |
20 x 33 x 17" (508 x 838 x 432 mm) |
