StarTech.com 1 ft Coax HD15 VGA to 5 BNC RGBHV Monitor Cable - M/F
Description
Connect a BNC video source to a VGA distribution amplifier or PC

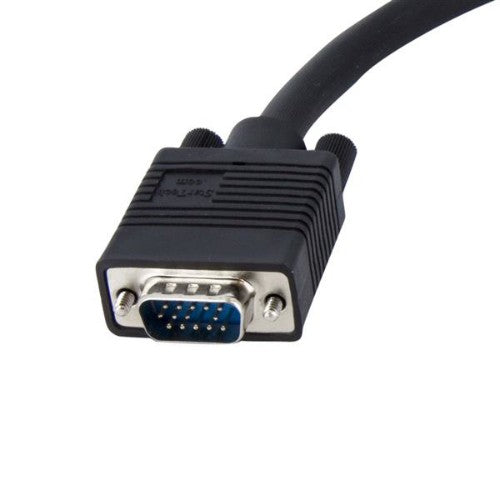

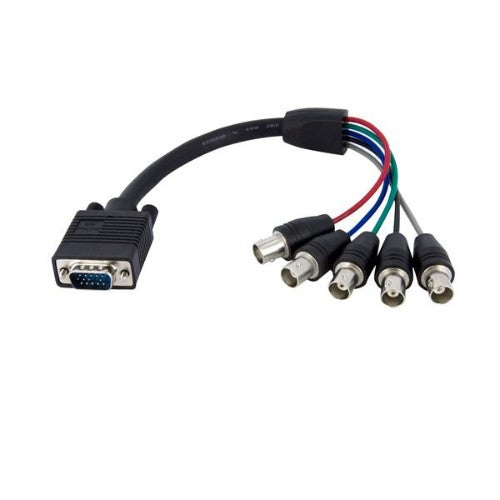

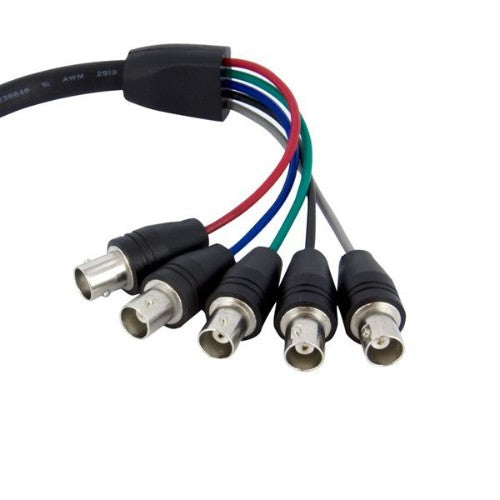

The VGABNCMF1 1-foot Coax HD15 VGA to 5 BNC RGBHV Adapter Cable features an HD15 VGA (male) connector and 5 BNC (RGBHV) (female) connectors, allowing you to connect your existing BNC video source to a VGA distribution amplifier or PC.
The cable can also be used with a VGA out signal, breaking out to 5 BNC female connectors that can be used with a 5 BNC (M-M) cable for use with a BNC monitor/display.
The StarTech.com Advantage
- Connect your wall mounted VGA TV or projector to your existing BNC cable runs
- Guaranteed reliability with StarTech.com’s lifetime warranty
Specifications
| Features |
|---|
| Product colour |
Black |
| Cable length |
11.8" (0.3 m) |
| Connector 1 |
VGA (D-Sub) |
| Connector 2 |
5 x BNC |
| Connector 1 gender |
Male |
| Connector 2 gender |
Female |
| Connector contacts plating |
Nickel |
| Jacket material |
Polyvinyl chloride (PVC) |
| AWG wire size |
28 |
| Certification |
CE, UL, REACH |
| Connector 1 form factor |
Straight |
| Connector 2 form factor |
Straight |
| Certificates |
|---|
| Certification |
CE, UL, REACH |
| Compliance certificates |
RoHS |
| Weight & dimensions |
|---|
| Cable diameter |
0.335" (8.5 mm) |
| Weight |
3.63 oz (103 g) |
| Package width |
4.92" (125 mm) |
| Package depth |
8.86" (225 mm) |
| Package height |
0.669" (17 mm) |
| Package weight |
3.81 oz (108 g) |
| Packaging data |
|---|
| Package width |
4.92" (125 mm) |
| Package depth |
8.86" (225 mm) |
| Package height |
0.669" (17 mm) |
| Package weight |
3.81 oz (108 g) |
| Quantity per pack |
1 pc(s) |
| Packaging content |
|---|
| Quantity per pack |
1 pc(s) |
| Technical details |
|---|
| Harmonized System (HS) code |
84733080 |
| Compliance certificates |
RoHS |
| Logistics data |
|---|
| Harmonized System (HS) code |
84733080 |
