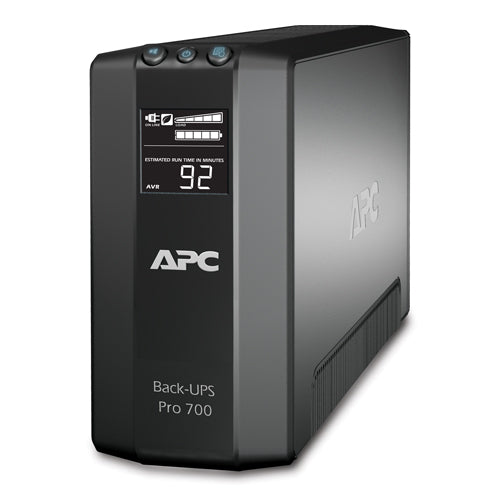

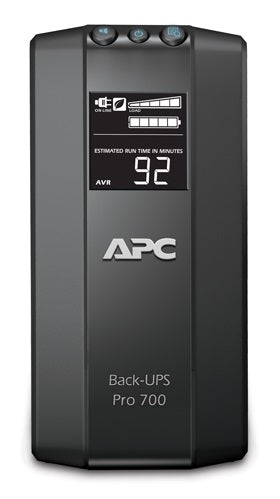

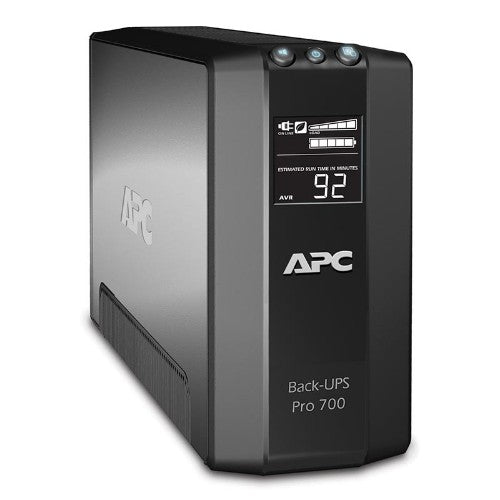

Back UPS RS LCD 700 Master Control
Description
Power-saving outlets
- Automatically cuts power to idle equipment to conserve electricity.
Disconnected battery notification
- Warns when a battery is not available to provide backup power.
Boost and Trim Automatic Voltage Regulation (AVR)
- Gives higher application availability by correcting low and high voltage conditions without using the battery.
LCD graphics display
- Text and mimic diagrams that display modes of operation, system parameters and alarms.
Specifications
| Power |
|---|
| Output power |
420 W |
| Surge energy rating |
355 J |
| Output power capacity |
0.7 kVA |
| Ports & interfaces |
|---|
| Cable length |
72" (1.83 m) |
| AC outlet types |
NEMA 5-15R |
| Ethernet LAN (RJ-45) ports |
2 |
| Performance |
|---|
| LED indicators |
Yes |
| Noise level |
40 dB |
| Audible alarm(s) |
Yes |
| Features |
|---|
| Output power |
420 W |
| Surge energy rating |
355 J |
| Noise level |
40 dB |
| Audible alarm(s) |
Yes |
| Output power capacity |
0.7 kVA |
| Battery |
|---|
| Battery technology |
Sealed Lead Acid (VRLA) |
| Battery recharge time |
12 h |
| Design |
|---|
| LED indicators |
Yes |
| Product colour |
Black |
| Certification |
FCC Part 15 Class B, FCC Part 68, NOM, UL 1778 |
| Cable length |
72" (1.83 m) |
| Operational conditions |
|---|
| Operating temperature (T-T) |
0 - 40 °C |
| Storage temperature (T-T) |
-14 - 40 °C |
| Operating relative humidity (H-H) |
0 - 95% |
| Storage relative humidity (H-H) |
0 - 40% |
| Operating altitude |
0 - 118110.2" (0 - 3000 m) |
| Non-operating altitude |
0 - 118110.2" (0 - 3000 m) |
| Technical details |
|---|
| Harmonized System (HS) code |
85078000 |
| Packaging data |
|---|
| Package dimensions (WxDxH) |
5.43 x 17.4 x 9.92" (138 x 442 x 252 mm) |
| Package weight |
17.5 lbs (7.95 kg) |
| Certificates |
|---|
| Certification |
FCC Part 15 Class B, FCC Part 68, NOM, UL 1778 |
| Weight & dimensions |
|---|
| Weight |
15.8 lbs (7.15 kg) |
| Package weight |
17.5 lbs (7.95 kg) |
| Logistics data |
|---|
| Harmonized System (HS) code |
85078000 |
| Other features |
|---|
| Filtering |
Yes |
| Output connections |
3 x NEMA 5-15R
3 x NEMA 5-15R |
| Dimensions (WxDxH) |
3.58 x 12.2 x 7.48" (91 x 310 x 190 mm) |
| Package dimensions (WxDxH) |
5.43 x 17.4 x 9.92" (138 x 442 x 252 mm) |
| Nominal output voltage |
120 V |
| Nominal input voltage |
120 V |
