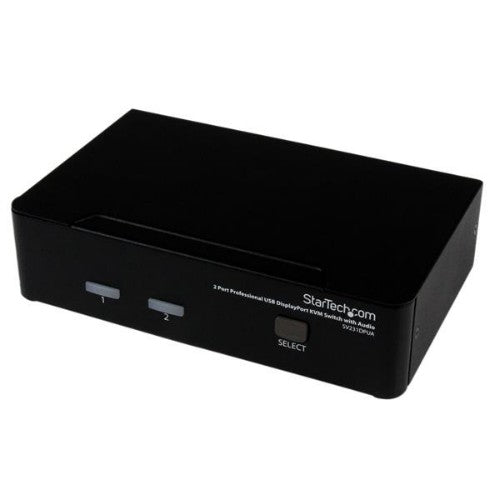

StarTech.com 2 Port Professional USB DisplayPort KVM Switch with Audio (SV231DPUA)
Description
Control two computers from a single console, with high-resolution DisplayPort video, USB keyboard, mouse, and audio
The SV231DPUA 2-Port USB DisplayPort KVM Switch delivers dual computer KVM control, for demanding high definition multimedia applications. Supporting DisplayPort connections with a native resolution of 2560 x 1600, and support for both 7.1 HD digital audio (when connected to supporting displays and sources) and 3.5mm stereo analog audio/mic.
A simple, yet comprehensive KVM solution, the 2-port switch features both front-panel push-buttons and hotkey switching, and offers a small form factor design with connection ports situated on the rear panel. A Plug-and-Play USB 2.0 hub port allows you to share an additional USB peripheral between the 2 connected computers, avoiding the expense of purchasing duplicate peripheral devices.
A suitable solution for medical applications (MRI, X-ray diagnostics etc.), the KVM switch supports a maximum resolution of 3840 x 2400 at a reduced refresh rate.
Backed by a StarTech.com 3-year warranty and free lifetime technical support.
The StarTech.com Advantage
- Compatible with Mini-DisplayPort adapters, making it suitable for Apple MacBook connectivity
- Support for both analog and digital audio sources provides the versatility to use either connection depending on preference/availability
- USB peripheral sharing eliminates the expense of duplicate devices (printers, scanners, etc.)
Specifications
| Ports & interfaces |
|---|
| Console USB ports quantity |
4 |

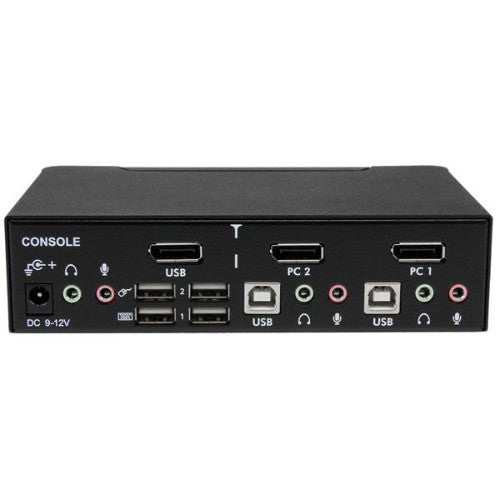

| Console ports |
3.5mm headphone, 3.5mm mic, DisplayPort, USB A |
| USB connector type |
USB Type-A |
| Number of microphone inputs |
3 |
| DisplayPorts quantity |
2 |
| Number of computers controlled |
2 |
| Keyboard port type |
USB |
| Mouse port type |
USB |
| Video port type |
DisplayPort |
| Audio connections |
Yes |
| Headphone outputs |
3 |
| DC-in jack |
Yes |
| USB hub |
Yes |
| Network |
|---|
| Ethernet LAN |
No |
| Performance |
|---|
| DDC2B support |
Yes |
| Daisy chain |
No |
| HD type |
4K Ultra HD |
| Hot-Plug support |
Yes |
| Plug and Play |
Yes |
| Maximum resolution |
3840 x 2400 pixels |
| Audio channels |
7.1 |
| Technical details |
|---|
| Product colour |
Black |
| Rack mounting |
No |
| Hot-Plug support |
Yes |
| Plug and Play |
Yes |
| Push button |
Yes |
| On Screen Display (OSD) |
No |
| LED indicators |
Yes |
| Hot keys |
Yes |
| IP control |
No |
| Audio support |
No |
| USB hub |
Yes |
| Compliance certificates |
RoHS |
| Design |
|---|
| Product colour |
Black |
| Rack mounting |
No |
| Push button |
Yes |
| LED indicators |
Yes |
| Hot keys |
Yes |
| Certification |
CE, UL, FCC, REACH |
| Housing material |
Steel |
| Display |
|---|
| Built-in display |
No |
| On Screen Display (OSD) |
No |
| Power |
|---|
| Input current |
0.8 A |
| Output current |
2 A |
| Power plug type |
Type M |
| Compatible power plug types |
AU, EU, UK, US |
| Output voltage |
12 V |
| Power consumption (typical) |
24 W |
| External power adapter |
Yes |
| Input voltage |
110 - 240 V |
| Video |
|---|
| HD type |
4K Ultra HD |
| Maximum resolution |
3840 x 2400 pixels |
| Sustainability |
|---|
| Compliance certificates |
RoHS |
| Operational conditions |
|---|
| Operating temperature (T-T) |
0 - 40 °C |
| Storage temperature (T-T) |
-20 - 60 °C |
| Operating relative humidity (H-H) |
0 - 80% |
| Weight & dimensions |
|---|
| Width |
8.66" (220 mm) |
| Depth |
5.12" (130 mm) |
| Height |
1.73" (44 mm) |
| Weight |
2.43 lbs (1.1 kg) |
| Package width |
3.94" (100 mm) |
| Package depth |
9.84" (250 mm) |
| Package height |
7.13" (181 mm) |
| Package weight |
2.87 lbs (1.3 kg) |
| Packaging data |
|---|
| Package width |
3.94" (100 mm) |
| Package depth |
9.84" (250 mm) |
| Package height |
7.13" (181 mm) |
| Package weight |
2.87 lbs (1.3 kg) |

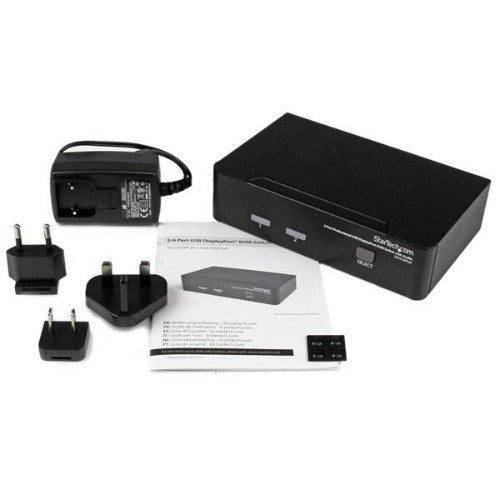

| Packaging content |
|---|
| Rubber feet |
Yes |
| Manual |
Yes |
| AC adapter included |
Yes |
| Certificates |
|---|
| Certification |
CE, UL, FCC, REACH |
| Other features |
|---|
| IP control |
No |
| Audio support |
No |
| Push button |
Yes |
| Hot keys |
Yes |
| Logistics data |
|---|
| Harmonized System (HS) code |
85176200 |
