StarTech.com 6in Slimline SATA to SATA Adapter with Power - Slim SATA (F) to SATA (M) - Slimline Serial ATA to SATA
Description
Connect a Slimline SATA optical drive up to 6in away from a standard SATA motherboard connection

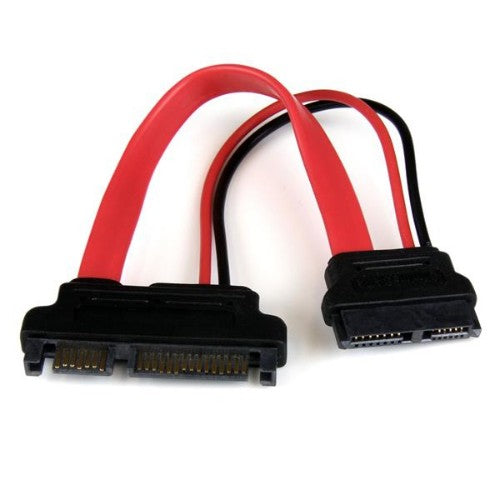

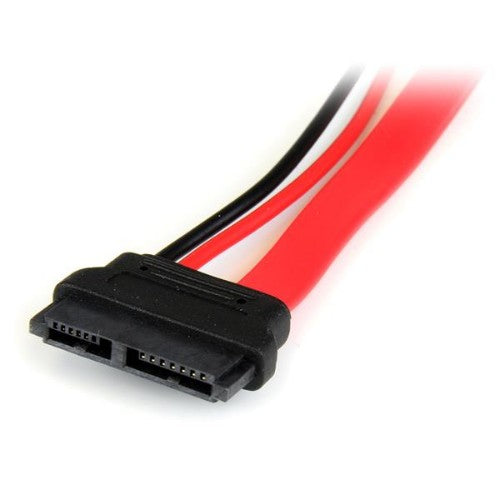

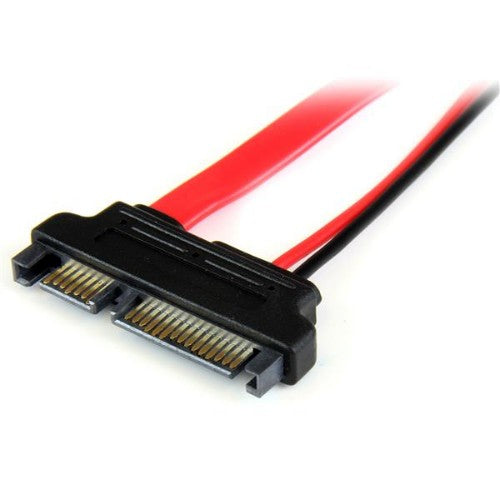

The SLSATAADAP6 Slimline SATA to SATA adapter features a Slimline Serial ATA connector on one end and a standard SATA data connector (with SATA power connector) on the other, enabling you to connect a Slimline SATA optical drive to standard motherboard and power supply connections.
The slim SATA adapter offers 6-inches in cable length, which compared to standard (non-cable) SATA/Slimline SATA adapter reduces strain off the drive connector and allows for flexible cable routing when positioning the Slimline SATA drive within the system case.
Designed and constructed to provide a dependable Slimline SATA to SATA connection, this high quality cable is backed by StarTech.com's Lifetime Warranty.
The StarTech.com Advantage
- Cost-effective way to connect a Slimline SATA optical drive to a standard SATA motherboard, using standard SATA cables
- The 6-inch cable format reduces strain on, and prevents damage to the Slimline SATA drive connector and provides flexibility to position your Slim SATA drive as needed within your system case
- Backed by StarTech.com lifetime warranty
Specifications
| Features |
| Maximum data transfer rate |
6 Gbit/s |
| AWG wire size |
18 |
| Connector gender |
Male/Female |
| Cable type |
SATA III |
| Cable length |
6" (0.152 m) |
| Connector 1 |
Slimline SATA 13 pin |
| Connector 1 form factor |
Straight |
| Connector 2 |
SATA 7+15 pin |
| Connector 2 form factor |
Straight |
| Weight |
0.494 oz (14 g) |
| Product colour |
Red |
| Certification |
CE, REACH |
| Certificates |
| Certification |
CE, REACH |
| Compliance certificates |
RoHS |
| Packaging data |
| Package width |
4.92" (125 mm) |
| Package depth |
8.86" (225 mm) |
| Package height |
0.315" (8 mm) |
| Package weight |
0.67 oz (19 g) |
| Quantity per pack |
1 pc(s) |
| Technical details |
| Maximum data transfer rate |
6 Gbit/s |
| AWG wire size |
18 |
| Connector gender |
Male/Female |
| Cable type |
SATA III |
| Cable length |
6" (0.152 m) |
| Connector 1 |
Slimline SATA 13 pin |
| Connector 1 form factor |
Straight |
| Connector 2 |
SATA 7+15 pin |
| Connector 2 form factor |
Straight |
| Product colour |
Red |
| Certification |
CE, REACH |
| Harmonized System (HS) code |
84733080 |
| Compliance certificates |
RoHS |
| Weight & dimensions |
| Weight |
0.494 oz (14 g) |
| Logistics data |
| Harmonized System (HS) code |
84733080 |
