ALOGIC Fusion Pro TOUR Wired USB 3.2 Gen 1 (3.1 Gen 1) Type-C Gray

USB-C, HDMI 2.0, VGA, 2 x USB-A 3.2 Gen 1, 1 x USB-C 3.2 Gen 1, USB-C 2.0, SD/MicroSD, RJ-45, 133 g

Key Features

• Up to 4K Video
• Pass-through Charging
• Built-in USB-C Cable
• Shielded Construction
• Compact & Portable

Description

Fusion Pro TOUR
USB-C Travel Dock
All of the features needed for serious work on the go.

Convenient Travel Partner

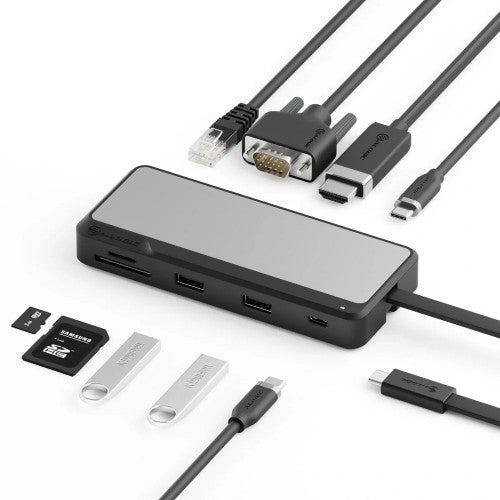

TOUR combines all the features you love from desktop docks into a travel-friendly form factor, including a 4K HDMI port (with VGA for backup), four USB connections, SD and microSD card readers and secure Gigabit Ethernet for wired network connectivity.

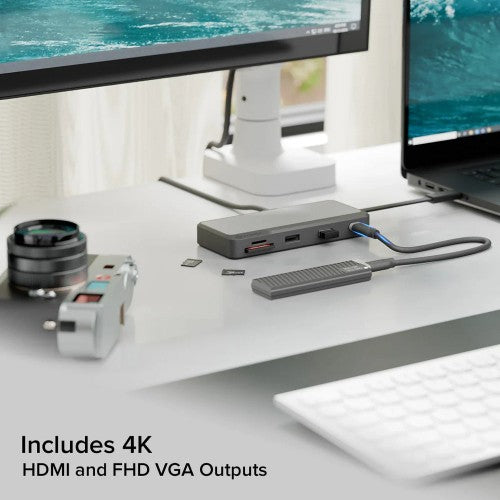

Stunning 4K Video
Small but powerful, the TOUR Dock can extend a laptop's display to any external monitor with a digital HDMI or analogue VGA input.

Supporting resolutions up to 4K over HDMI*, this dock can provide vivid high resolution visualization for increased visual fidelity.

Small and Robust
With an elegant mix of Aluminium and impact resistant ABS, TOUR doesn't just look great on the desk, this compact dock has the strength to travel in a crowded laptop bag and emerge without a scratch.

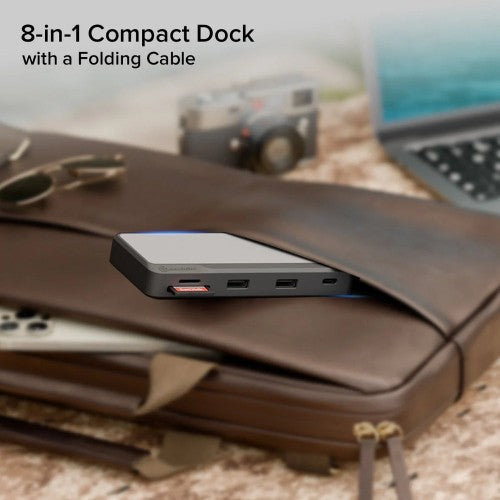

Compact & Innovative Design
This dock's compact design is perfect when space is at a premium and makes it a logical choice for mobile users Ð road warriors, educators, students and professionals who work between the office and home.

Specifications

Ports & interfaces
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	2
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity	1
Host interface	USB 3.2 Gen 1 (3.1 Gen 1) Type-C
USB 2.0 ports quantity	0
Ethernet LAN (RJ-45) ports	1
HDMI ports quantity	1
HDMI version	2.0
VGA (D-Sub) ports quantity	1
Microphone in	No
Headphone outputs	0
Connectivity technology	Wired
USB Power Delivery (USB PD)	Yes
USB Power Delivery up to	100 W
USB Type-C DisplayPort Alternate Mode	Yes
USB 2.0 Type-C ports quantity	1
Network
Ethernet LAN	Yes
Ethernet LAN data rates	10,100,1000 Mbit/s
Ethernet LAN (RJ-45) ports	1
Performance
Maximum digital resolution	3840 x 2160 pixels
Maximum analog resolution	1920 x 1200 pixels
Product colour	Gray
Card reader integrated	Yes
Compatible memory cards	MicroSD (TransFlash), MicroSDHC, MicroSDXC, SD, SDHC, SDXC
HD type	4K Ultra HD
Housing material	Acrylonitrile butadiene styrene (ABS), Aluminum
Technical details
Product colour	Gray
Storage
Card reader integrated	Yes
Compatible memory cards	MicroSD (TransFlash), MicroSDHC, MicroSDXC, SD, SDHC, SDXC
Power
Power source type	USB
Power connector	USB Type-C
USB cable length	9.06" (0.23 m)
Software
Windows operating systems supported	Yes
Mac operating systems supported	Yes
Other operating systems supported	ChromeOS
Weight & dimensions
Weight	4.69 oz (133 g)
Width	5.12" (130 mm)
Depth	2.17" (55 mm)
Height	0.689" (17.5 mm)
Design
Windows operating systems supported	Yes
Mac operating systems supported	Yes
Product colour	Gray
