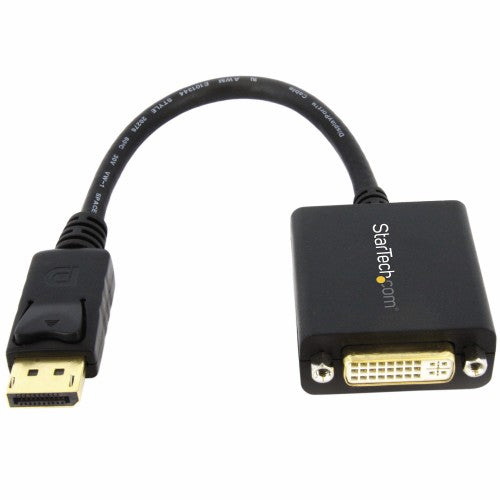

StarTech.com DisplayPort to DVI Adapter - DisplayPort to DVI-D Adapter Video Converter 1080p - DP 1.2 to DVI Monitor/Display Cable Adapter Dongle - DP to DVI Adapter - Latching DP Connector (DP2DVI2)
Key Features
- DISPLAYPORT TO DVI ADAPTER: DisplayPort 1.2 HBR2 to DVI-D (digital only) single-link adapter connects DVI display/projector / 1920x1200/1080p 60Hz; HDCP 1.4 / 6" (15cm) attached cable / DisplayPort Certified
- COMPATIBILITY: Passive video converter supports DP++ source incl workstations, desktops (AMD/Nvidia), laptops, small form factor computers & docking stations
- CONNECT A PRIMARY OR SECONDARY DISPLAY: Connect a DVI monitor or projector, or add a second display to your workstation using the DP to DVI adapter / Tested w/ DVI cables up to 25ft / EDID & DDC pass-through ensure compatibility between source & display

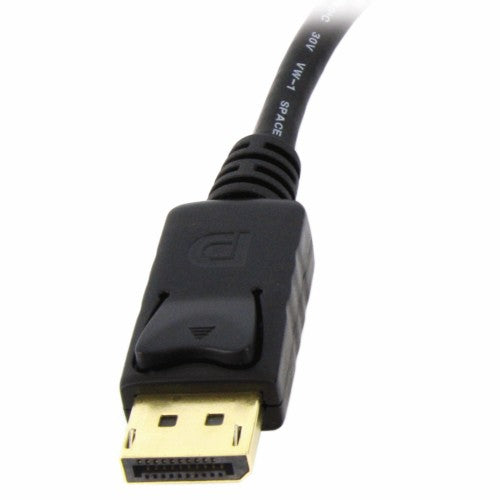

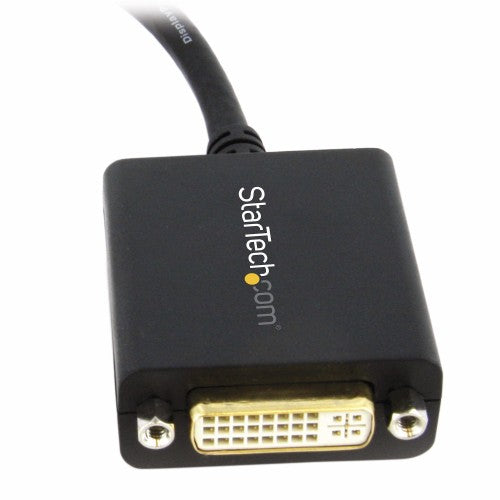

- LATCHING DISPLAYPORT & SCREW LOCKING DVI: Latching DP connector ensures a solid host connection / Supports DVI screw locking cable to prevent cable from coming loose or accidental disconnection / Compact design
- EASY TO USE: With no software or drivers required, the DP to DVI adapter converter works w/ any OS / DisplayPort male to DVI female adapter dongle / Connector is DVI-I, however only a digital signal (DVI-D) passes through
Description
Connect your DVI monitor to a DisplayPort equipped computer
The DP2DVI2 DisplayPort® to DVI Video Adapter Converter lets you connect a DVI monitor to DisplayPort-enabled desktop or laptop computers.
Supporting display resolutions of up to 1920x1200 allowing you to take full advantage of single link DVI capability. DP2DVI2 is a passive adapter that requires a DP++ port (DisplayPort++), meaning that DVI and HDMI signals can also be passed through the port.
StarTech.com also offers the DP2DVIS, an Active DisplayPort to DVI adapter.
Backed by a StarTech.com 3-year warranty and free lifetime technical support.
The StarTech.com Advantage
Specifications
| Features |
| Converter type |
Passive video converter |
| DisplayPort version |
1.2 |
| Product colour |
Black |
| Cable length |
5.98" (0.152 m) |
| Connector 1 |
DisplayPort |
| Connector 2 |
DVI-I |
| Connector 1 gender |
Male |
| Connector 2 gender |
Female |
| Maximum resolution |
1920 x 1200 pixels |
| Supported graphics resolutions |
640 x 480 (VGA), 800 x 600 (SVGA), 1024 x 768 (XGA), 1152 x 864 (XGA+), 1280 x 1024 (SXGA), 1280 x 720 (HD 720), 1280 x 768 (WXGA), 1280 x 800 (WXGA), 1280 x 960, 1360 x 768 (WXGA), 1366 x 768, 1400 x 1050 (SXGA+), 1440 x 900, 1600 x 600, 1680 x 1050 (WSXGA+), 1920 x 1080 (HD 1080), 1920 x 1200 (WUXGA) |
| Supported video modes |
480p, 720p, 1080p |
| HDCP |
Yes |
| Plug and Play |
Yes |
| Certification |
CE, FCC, REACH |
| Connector 1 form factor |
Straight |
| Connector 2 form factor |
Straight |
| Dual Link DVI |
No |
| Maximum refresh rate |
60 Hz |
| HDCP version |
1.4 |
| HBR2 support |
Yes |
| Operational conditions |
| Operating temperature (T-T) |
0 - 70 °C |
| Storage temperature (T-T) |
-10 - 80 °C |
| Operating relative humidity (H-H) |
5 - 90% |
| Certificates |
| Certification |
CE, FCC, REACH |
| Compliance certificates |
RoHS |
| Other features |
| Width |
1.65" (42 mm) |
| Height |
0.669" (17 mm) |
| Depth |
10" (254 mm) |
| Weight & dimensions |
| Width |
1.65" (42 mm) |
| Height |
0.669" (17 mm) |
| Depth |
10" (254 mm) |
| Weight |
1.52 oz (43 g) |
| Package width |
7.87" (200 mm) |
| Package depth |
8.66" (220 mm) |
| Package height |
0.748" (19 mm) |
| Package weight |
1.83 oz (52 g) |
| Packaging data |
| Package width |
7.87" (200 mm) |
| Package depth |
8.66" (220 mm) |
| Package height |
0.748" (19 mm) |
| Package weight |
1.83 oz (52 g) |
| Quantity per pack |
1 pc(s) |
| Packaging content |
| Quantity per pack |
1 pc(s) |
| Technical details |
| Harmonized System (HS) code |
84733080 |
| Compliance certificates |
RoHS |
| Logistics data |
| Master (outer) case width |
12.8" (325 mm) |
| Master (outer) case length |
19.7" (500 mm) |
| Master (outer) case height |
8.66" (220 mm) |
| Products per master (outer) case |
140 pc(s) |
| Harmonized System (HS) code |
84733080 |
