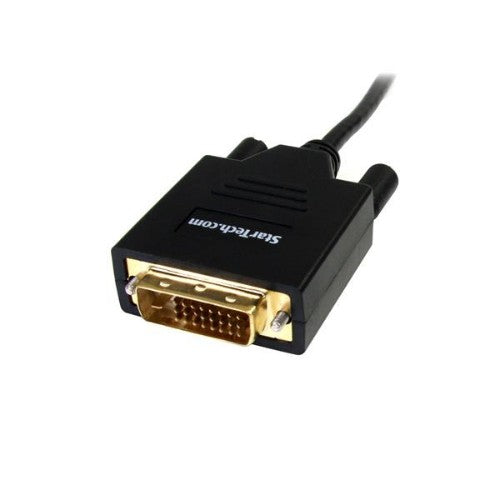

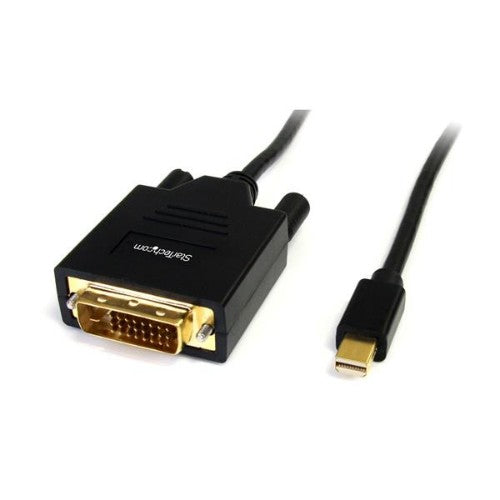

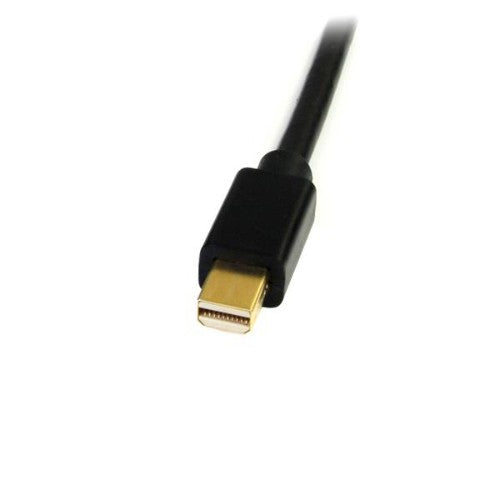

StarTech.com 6ft (1.8m) Mini DisplayPort to DVI Cable - Mini DP to DVI Adapter Cable - 1080p Video - Passive mDP to DVI-D Single Link, mDP or Thunderbolt 1/2 Mac/PC to DVI Monitor/Display (MDP2DVIMM6)
Key Features
- MINI DISPLAYPORT TO DVI CABLE: 6ft (1.8m) Mini DisplayPort 1.2 (HBR2) to DVI-D (digital only) single-link cable connects a DVI display / 1080p 60Hz or 4K 30Hz (monitor w/ HDMI clock rate); EDID pass-through ensures compatibility between source & display
- HOST COMPATIBILITY: Passive video converter supports mDP++ source including Thunderbolt 1 & 2 MacBooks, MacBook Air & Mac Mini, Microsoft Surface Pro 1-6, desktops (AMD FirePro/NVidia Quadro), laptops, mini itx computers, Intel NUC & docks
- INTEGRATED DISPLAY CABLE: Mini DisplayPort to DVI adapter cable has slim & flexible design with adapter chip built into VGA connector reducing clutter & providing a tidy install in the office, boardroom or home office
- INCREASE PRODUCTIVITY: Connect a DVI monitor or projector, or add a second display to your workstation using the mDP to VGA display adapter cable / Supports DVI screw locking cable to prevent accidental disconnection / mDP Male to DVI Male
- EASY TO USE: With no software or drivers required, the Mini DP to DVI converter cable/cord works with any OS including Windows, Ubuntu and macOS; Compatible with MiniDP devices like TB1/TB2 MacBooks with Mini DisplayPort
Description
Connect a DVI display to a Mini DisplayPort-equipped PC or MAC®
The MDP2DVIMM6 6-foot Mini DisplayPort to DVI Cable is a cost-effective Mini DisplayPort to DVI link that lets you connect a DVI monitor to a PC or Mac® with a Mini DisplayPort output - saving the expense of upgrading the monitor for compatibility. This Mini DisplayPort adapter is the perfect accessory for any of your MacBook® or Microsoft® Surface™ Pro devices with mDP. This all-in-one, easy to use Mini DisplayPort/DVI cable requires no additional converters or adapters, and no driver or software installation.
Compatible with Intel® Thunderbolt™, when connected directly to a supporting DisplayPort over Thunderbolt™ I/O port.
MDP2DVIMM6 is a passive adapter that requires a DP++ port (DisplayPort++), meaning that DVI and HDMI signals can also be passed through the port.
Backed by a StarTech.com 3-year warranty and free lifetime technical support.
The StarTech.com Advantage
Specifications
| Features |
|---|
| Converter type |
Passive video converter |
| DisplayPort version |
1.2 |
| Product colour |
Black |
| Cable length |
70.9" (1.8 m) |
| Connector 1 |
Mini DisplayPort |
| Connector 2 |
DVI-D |
| Connector 1 gender |
Male |
| Connector 2 gender |
Male |
| Maximum resolution |
1920 x 1200 pixels |
| Supported video modes |
1080p |
| Plug and Play |
Yes |
| Certification |
CE, FCC, REACH |
| Connector 1 form factor |
Straight |
| Connector 2 form factor |
Straight |
| Dual Link DVI |
No |
| Maximum refresh rate |
60 Hz |
| HBR2 support |
Yes |
| Operational conditions |
|---|
| Operating temperature (T-T) |
5 - 35 °C |
| Storage temperature (T-T) |
0 - 70 °C |
| Operating relative humidity (H-H) |
20 - 80% |
| Certificates |
|---|
| Certification |
CE, FCC, REACH |
| Compliance certificates |
RoHS, CE |
| Weight & dimensions |
|---|
| Weight |
2.96 oz (84 g) |
| Package width |
7.87" (200 mm) |
| Package depth |
8.66" (220 mm) |
| Package height |
1.02" (26 mm) |
| Package weight |
3.25 oz (92 g) |
| Packaging data |
|---|
| Package width |
7.87" (200 mm) |
| Package depth |
8.66" (220 mm) |
| Package height |
1.02" (26 mm) |
| Package weight |
3.25 oz (92 g) |
| Quantity per pack |
1 pc(s) |
| Packaging content |
|---|
| Quantity per pack |
1 pc(s) |
| Technical details |
|---|
| Harmonized System (HS) code |
84733080 |
| Compliance certificates |
RoHS, CE |
| Logistics data |
|---|
| Master (outer) case width |
12.6" (320 mm) |
| Master (outer) case length |
19.7" (500 mm) |
| Master (outer) case height |
8.27" (210 mm) |
| Products per master (outer) case |
50 pc(s) |
| Harmonized System (HS) code |
84733080 |
