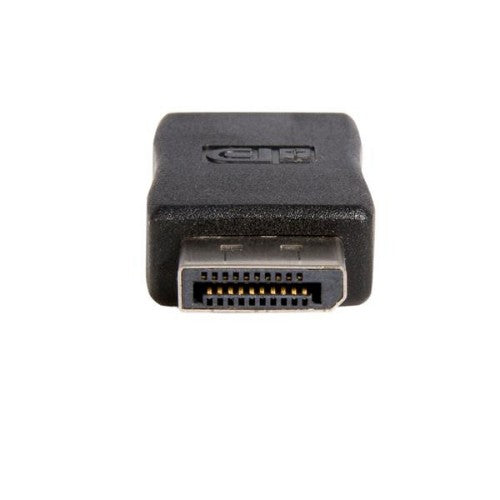

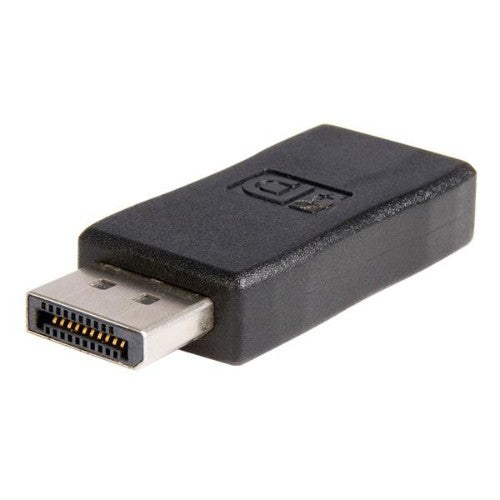

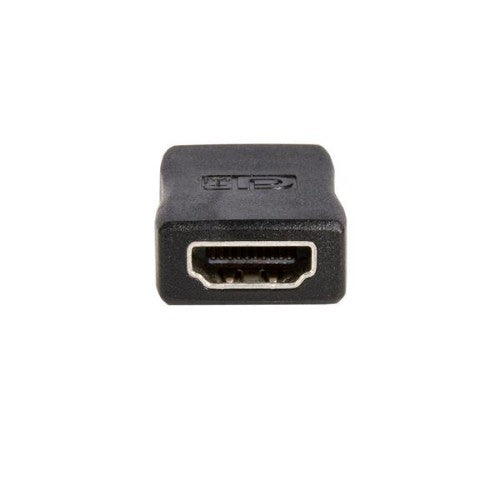

StarTech.com DisplayPort to HDMI Adapter - Compact DP to HDMI Adapter/Video Converter 1080p - VESA DisplayPort Certified - Passive DP 1.2 to HDMI Monitor/Display/Projector Cable Adapter (DP2HDMIADAP)
Key Features
- PERFORMANCE: This DisplayPort 1.2 to HDMI adapter connects a DP desktop or laptop to an HDMI display, projector, monitor or TV
- Supports HD 1920x1200 (1080p) video, 7.1ch Audio, HDCP 1.4
- VESA DisplayPort Certified
- HOST COMPATIBILITY: DisplayPort to HDMI adapter tested for compatibility with DP++ source; Passive converter supports DP++ source connector incl workstations, desktops (AMD/Nvidia video cards), laptops, small form factor computers & docking stations
- SMALL FORM FACTOR: With no attached cable and compact design, the adapter connects directly to your HDMI cable for a clean look
- Use to connect primary monitor or projector or add a secondary display
Description
Connect your HDMI® monitor or HDTV to a DisplayPort® equipped computer
The DP2HDMIADAP DisplayPort® to HDMI® Adapter provides a DisplayPort male and HDMI female connector, allowing you to keep your existing (HDMI) display while using a DisplayPort video card/source.
Supporting display resolutions of up to 1920x1200 (computer)/1080p (HDTV), this cost-effective solution maintains the incredible graphical performance offered by DisplayPort, while eliminating the cost of having to upgrade your HDMI-capable display to a display with built-in DisplayPort support.
DP2HDMIADAP is a passive adapter cable that requires a DP++ port (DisplayPort++), meaning that DVI and HDMI signals can also be passed through the port.
This adapter allows for audio pass-through if supported by the video source. Please review the video source manual to confirm support.
Backed by a StarTech.com 3-year warranty and free lifetime technical support.
The StarTech.com Advantage
Specifications
| Ports & interfaces |
|---|
| DisplayPort version |
1.2 |
| Connector 2 |
HDMI |
| Connector 1 |
DisplayPort |
| Connector 2 gender |
Female |
| Connector 1 gender |
Male |
| Connector 2 form factor |
Straight |
| Connector 1 form factor |
Straight |
| Performance |
|---|
| Converter type |
Passive video converter |
| Supported video modes |
1080p |
| Plug and Play |
Yes |
| Maximum resolution |
1920 x 1200 pixels |
| Product colour |
Black |
| Audio support |
Yes |
| DisplayPort version |
1.2 |
| Operational conditions |
|---|
| Storage temperature (T-T) |
-20 - 60 °C |
| Relative humidity |
0 - 65% |
| Operating temperature (T-T) |
5 - 35 °C |
| Certificates |
|---|
| Compliance certificates |
CE, RoHS |
| Weight & dimensions |
|---|
| Width |
0.709" (18 mm) |
| Weight |
0.564 oz (16 g) |
| Height |
0.354" (9 mm) |
| Depth |
2.17" (55 mm) |
| Packaging data |
|---|
| Package width |
3.54" (90 mm) |
| Package height |
0.433" (11 mm) |
| Package depth |
4.92" (125 mm) |
| Package weight |
0.635 oz (18 g) |
| Technical details |
|---|
| Plug and Play |
Yes |
| Maximum resolution |
1920 x 1200 pixels |
| Product colour |
Black |
| Compliance certificates |
CE, RoHS |
| Design |
|---|
| Product colour |
Black |
| Logistics data |
|---|
| Products per master (outer) case |
600 pc(s) |
| Master (outer) case width |
13.1" (332 mm) |
| Master (outer) case length |
19.6" (498 mm) |
| Master (outer) case height |
9.29" (236 mm) |
