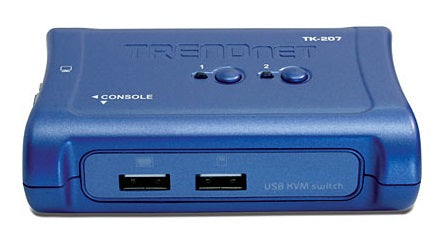

2-Port USB KVM Switch
Key Features
- 2-Port KVM switch with VGA and USB connections to computers
- Device monitoring with Auto-Scan and audible feedback
- High quality 2048 x 1536 resolution for a crisp display
- Supports most operating systems and advanced mouse designs
- Control two computers with one set of console controls
- Bus powered – No external power adapter required
- All required cabling included
- No CD installation required
- NDAA compliant
Description
The 2-Port USB KVM Switch lets you manage two PC’s with just one set of keyboard, monitor, and mouse. Switch between two PC’s with a simple press of a button! Separate sets of KVM cables are included with the KVM Switch, so users can start controlling 2 PC’s instantly. The KVM cables also provide power to the KVM Switch, eliminating the need for a power adapter. Hot Key operations provide immediate access to features such as computer switching, and auto-scanning. With its Hot-Plug, and Audible Feedback, the 2-Port USB KVM Switch is the perfect choice for managing multiple PC’s.
-Use one keyboard, monitor, and mouse to control two computers.
-USB Keyboard/Mouse emulation with 2-set of detachable KVM Cables.
-Supports Microsoft Intellimouse, Optical Mouse, Logitech Net Mouse and more.
-Supports super High Video Quality, up to 2048 x 1536 VGA resolution.
-Supports Windows 98/98SE/ME/2000/XP/2003 Server, Linux, and Mac OS.
-Multi-Platform support for PCs, Macintosh G3/G4, iMac and Mac Mini.
-Hot-Plug pluggable. Adds PC or removes the connected PCs for maintenance without powering down the KVM Switch or other PC’s.
-Switches PC by hot-keys, push button or windows-base client switch software.
-Auto-Scan & LED display for easy status monitoring.
-User definable hot-key (Windows Only).
-USB Interface Power method.
-2-year limited warranty.
Specifications
| Ports & interfaces |
|---|
| Number of computers controlled |
2 |
| Keyboard port type |
USB |
| Mouse port type |
USB |
| Video port type |
VGA |
| Audio connections |
No |
| Cable length |
47.2" (1.2 m) |
| Performance |
|---|
| Maximum resolution |
2048 x 1536 pixels |
| Scan interval |
10 s |
| Technical details |
|---|
| Product colour |
Blue |
| Scan interval |
10 s |
| Design |
|---|
| Product colour |
Blue |
| Cable length |
47.2" (1.2 m) |
| Certification |
CE, FCC. |
| Display |
|---|
| Built-in display |
No |
| Video |
|---|
| Maximum resolution |
2048 x 1536 pixels |
| Operational conditions |
|---|
| Operating temperature (T-T) |
0 - 40 °C |
| Storage temperature (T-T) |
-20 - 60 °C |
| Operating relative humidity (H-H) |
0 - 90% |
| Weight & dimensions |
|---|
| Weight |
3.49 oz (99 g) |
| Certificates |
|---|
| Certification |
CE, FCC. |
| Other features |
|---|
| Connectivity technology |
Wired |
| Power supply type |
USB |
| Ports quantity |
2 |
| Dimensions (WxDxH) |
3.86 x 2.76 x 1.1" (98 x 70 x 28 mm) |
| Compatible operating systems |
Windows 98/98SE/ME/2000/XP/2003 Server, Linux, & Mac OS. |
| Logistics data |
|---|
| Harmonized System (HS) code |
85176200 |
