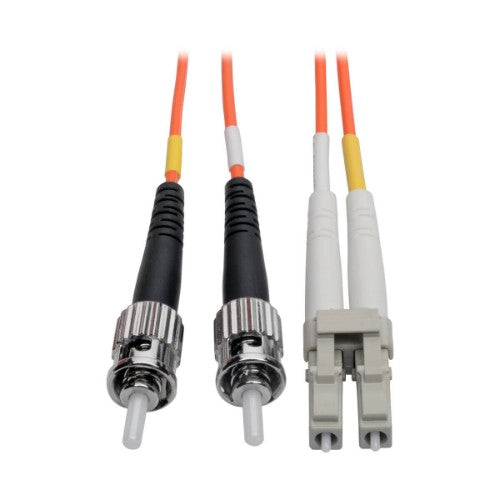

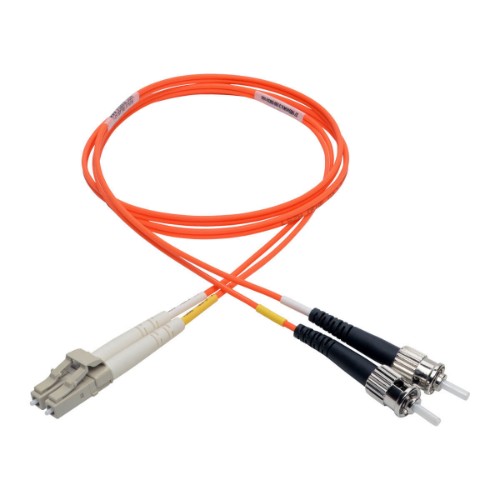

Duplex Multimode 62.5/125 Fiber Patch Cable (LC/ST), 1M (3 ft.)
Key Features
- Premium 62.5/125 duplex (zipcord) fiber patch cable
- Ideal for LAN applications
- Glass fiber composition
Description
Manufactured from 62.5/125 duplex (zipcord) fiber
PVC jacket

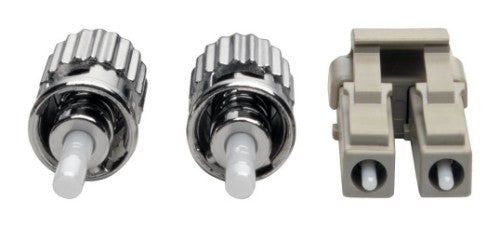

Length: 1-meter/Connectors: 2 ST/LC connectors on each end
Insertion loss testing performed on every connector (0.2db typical) and provided with cable
Beveled edge on ends of glass makes insertion of plug a breeze
Fiber made from glass (not a polymer)
Duplex multimode fiber is most commonly used in LAN applications where links are 10-ft. (3.05 m) or less
Fiber optic distributed data interface (FDDI) rated
OFNR (riser rated)
Specifications
| Features |
|---|
| Fibre optic type |
OM1 |
| Jacket material |
Polyvinyl chloride (PVC) |
| Fiber mode structure |
Multi-mode |
| Connector 1 |
LC |
| Connector 2 |
ST |
| Cable length |
39.4" (1 m) |
| Full duplex |
Yes |
| Core diameter |
62.5 µm |
| Cladding diameter |
125 µm |
| Insertion loss |
0.2 dB |
| Data transfer rate |
1 Gbit/s |
| Product colour |
Orange |
| Connector 2 gender |
Male |
| Connector 1 gender |
Male |
| Country of origin |
China |
| Harmonized System (HS) code |
8544.70.0000 |
| Certificates |
|---|
| Compliance certificates |
RoHS |
| Weight & dimensions |
|---|
| Weight |
1.41 oz (40 g) |
| Cable length |
39.4" (1 m) |
| Package width |
4.6" (116.8 mm) |
| Package depth |
5.8" (147.3 mm) |
| Package height |
0.252" (6.4 mm) |
| Package weight |
1.41 oz (40 g) |
| Packaging data |
|---|
| Package width |
4.6" (116.8 mm) |
| Package depth |
5.8" (147.3 mm) |
| Package height |
0.252" (6.4 mm) |
| Package weight |
1.41 oz (40 g) |
| Technical details |
|---|
| Jacket material |
Polyvinyl chloride (PVC) |
| Fiber mode structure |
Multi-mode |
| Connector 1 |
LC |
| Connector 2 |
ST |
| Cable length |
39.4" (1 m) |
| Full duplex |
Yes |
| Core diameter |
62.5 µm |
| Cladding diameter |
125 µm |
| Insertion loss |
0.2 dB |
| Master (outer) case GTIN (EAN/UPC) |
10037332117554 |
| Compliance certificates |
RoHS |
| Data transmission |
|---|
| Data transfer rate |
1 Gbit/s |
| Other features |
|---|
| Core / cladding diameter |
62.5/125 µm |
| Logistics data |
|---|
| Master (outer) case width |
5.9" (149.9 mm) |
| Master (outer) case length |
7.5" (190.5 mm) |
| Master (outer) case height |
4" (101.6 mm) |
| Master (outer) case gross weight |
12.7 oz (360 g) |
| Products per master (outer) case |
10 pc(s) |
| Country of origin |
China |
| Harmonized System (HS) code |
8544.70.0000 |
| Master (outer) case GTIN (EAN/UPC) |
10037332117554 |
