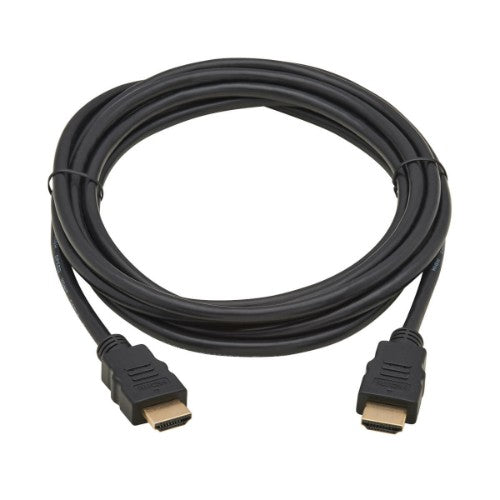

High-Speed HDMI Cable, Digital Video with Audio, UHD 4K (M/M), Black, 10 ft. (3.05 m)
Key Features
- Premium double-shielded digital audio/video cable
- Supports iPad2 Video Mirroring when used with Apple Digital AV Adapter
- Gold-plated connectors provide optimal signal transfer
- High Speed HDMI and HDCP compliant
- Supports Ultra High Definition (UHD) 4K video resolutions
Description
High Speed HDMI Gold Cable allows interconnection between digital display devices, such as HDTVs and projectors, to digital source devices, such as satellite/cable boxes, Blu-Ray players and AV receivers. Supports iPad2 Video Mirroring when used with Apple Digital AV Adapter. HDMI assures that the best audio/video signal is always sent from the source to the display by allowing uncompressed video and multi-channel audio data to be input to the display device through one single cable. An HDMI connection allows input at high rates of speed, up to 18 Gbps.
Specifications
| Features |
|---|
| Connector 1 form factor |
Straight |
| Connector 2 form factor |
Straight |
| Maximum refresh rate |
30 Hz |
| Product colour |
Black |
| Cable length |
120.1" (3.05 m) |
| Connector 1 |
HDMI Type A (Standard) |
| Connector 2 |
HDMI Type A (Standard) |
| Connector 1 gender |
Male |
| Connector 2 gender |
Male |
| Connector contacts plating |
Gold |
| Magnetically shielded |
Yes |
| 3D |
No |
| Maximum resolution |
3840 x 2160 pixels |
| Supported graphics resolutions |
3840 x 2160 |
| Supported video modes |
1080p |
| HDCP |
Yes |
| High Dynamic Range (HDR) supported |
No |
| Cable jacket material |
Polyvinyl chloride (PVC) |
| HDCP version |
1.3 |
| Unidirectional |
No |
| Colour sampling |
4:4:4 |
| Extended display identification data (EDID) |
Yes |
| Number of shielding layers |
2 |
| Bending radius (min) |
2.17" (5.5 cm) |
| Quantity per pack |
1 pc(s) |
| Operational conditions |
|---|
| Operating temperature (T-T) |
0 - 45 °C |
| Storage temperature (T-T) |
-40 - 80 °C |
| Operating relative humidity (H-H) |
10 - 85% |
| Storage relative humidity (H-H) |
5 - 90% |
| Certificates |
|---|
| Compliance certificates |
REACH, RoHS |
| Weight & dimensions |
|---|
| Cable diameter |
0.217" (5.5 mm) |
| Package width |
7" (177.8 mm) |
| Package depth |
0.5" (12.7 mm) |
| Package height |
9" (228.6 mm) |
| Package weight |
6 oz (170 g) |
| Packaging content |
|---|
| Quantity per pack |
1 pc(s) |
| Packaging data |
|---|
| Package width |
7" (177.8 mm) |
| Package depth |
0.5" (12.7 mm) |
| Package height |
9" (228.6 mm) |
| Package weight |
6 oz (170 g) |
| Quantity per pack |
1 pc(s) |
| Technical details |
|---|
| Country of origin |
Vietnam |
| Compliance certificates |
REACH, RoHS |
| Other features |
|---|
| Country of origin |
Vietnam |
| Connector(s) |
HDMI |
| Master (outer) case GTIN (EAN/UPC) |
10037332122923 |
| Logistics data |
|---|
| Country of origin |
Vietnam |
| Master (outer) case gross weight |
3.79 lbs (1.72 kg) |
| Products per master (outer) case |
10 pc(s) |
| Master (outer) case width |
13.8" (350.5 mm) |
| Master (outer) case length |
1" (25.4 mm) |
| Master (outer) case height |
15.7" (398.8 mm) |
| Master (outer) case GTIN (EAN/UPC) |
10037332122923 |
| Harmonized System (HS) code |
84733080 |
