2-Port USB HDMI/Audio KVMP™ Switch
Key Features
- 2-port HDMI USB 2.0 KVMP™ Switch

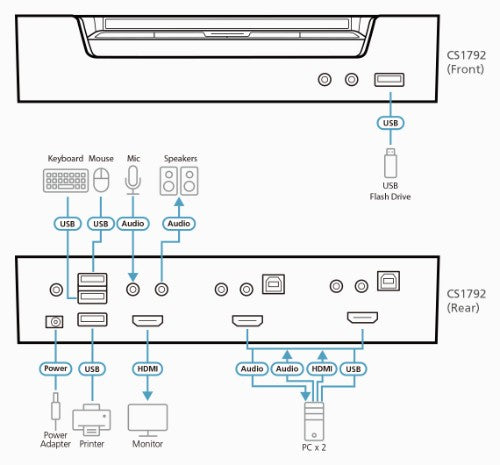

- One USB console controls two HDMI-interface computers and two additional USB devices
- 2-port USB 2.0 hub built in; fully compliant with the USB 2.0 specification

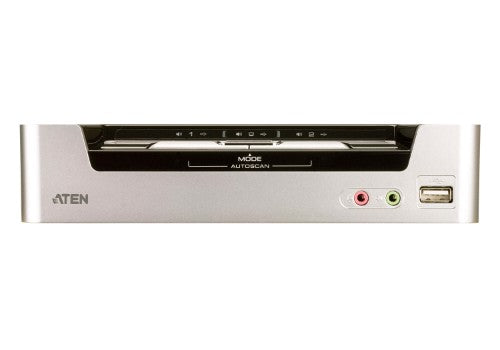

- Independent switching of KVM, USB peripheral, and audio focus via front panel pushbuttons and hotkeys
- HDMI digital monitor support - fully compliant with HDMI; also HDCP compliant
- Dolby True HD and DTS HD Master Audio support
- Superior video quality - supports 480i, 480p, 720p, 1080i, and 1080p(HDTV)/1920 x 1200(DVI)
- Power on detection - If one of the computers is powered off, the CS1792 will automatically switch to the next powered-on computer
- Supports widescreen resolutions
- Multiplatform support - Windows, Linux,and Mac
- Console mouse port emulation/bypass feature supports most mouse driver and multifunction mice
- Video DynaSync™ - stores the console monitor's EDID (Extended Display Identification Data) to optimize display resolution
- Complete keyboard emulation for error-free booting
- Mac keyboard support and emulation*
- Auto Scan Mode for monitoring all computers and HDMI devices
- Firmware Upgradable
- * 1. PC keyboard combinations emulate Mac Keyboards
- 2. Mac keyboards only work with their own computers
Description
With the unique design and innovative features, the CS1792 USB 2.0 HDMI KVMP™ Switch provides both style and functionality for today's multimedia SOHO environment.
Combining a 2-port switch with a 2-port USB 2.0 hub, the CS1792 provides seamless HDMI signal switching between 2 PCs or other HDMI-enabled devices, such as gaming consoles, and allows users to share USB peripherals from a single console. The CS1792 provides enhanced independent switching via front panel pushbuttons and keyboard hotkeys, and features Video DynaSync™ technology to ensure that HDMI display resolution is always optimized. With integrated digital audio, the CS1792 also allows users to experience high-definition sound, such as Dolby True HD and DTS HD Master Audio.
Ideal for multimedia applications in the office, the CS1792 offers the ultimate in space-saving, streamlined KVM technology for the desktop.
Specifications
| Ports & interfaces |
|---|
| Console USB ports quantity |
1 |

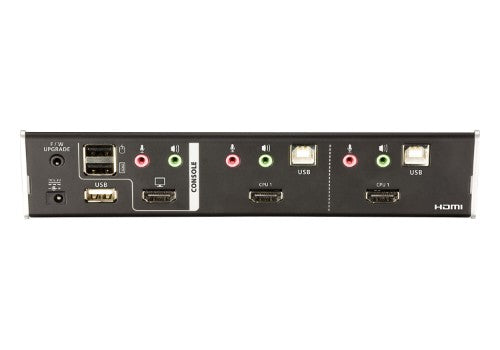

| Console ports |
3.5mm headphone, 3.5mm mic, HDMI, USB A |
| USB connector type |
USB Type-A |
| Number of microphone inputs |
1 |
| Number of computers controlled |
2 |
| Keyboard port type |
USB |
| Mouse port type |
USB |
| Video port type |
HDMI |
| Audio connections |
Yes |
| Headphone outputs |
2 |
| HDMI ports quantity |
3 |
| DC-in jack |
Yes |
| Performance |
|---|
| Firmware upgradeable |
Yes |
| HD type |
WUXGA |
| Maximum resolution |
1920 x 1200 pixels |
| Scan interval |
1,99 s |
| Technical details |
|---|
| Product colour |
Black, Silver |
| Rack mounting |
Yes |
| Scan interval |
1,99 s |
| Push button |
Yes |
| On Screen Display (OSD) |
No |
| LED indicators |
Yes |
| Hot keys |
Yes |
| Compliance certificates |
RoHS |
| Design |
|---|
| Product colour |
Black, Silver |
| Rack mounting |
Yes |
| Push button |
Yes |
| LED indicators |
Yes |
| Hot keys |
Yes |
| Rack capacity |
1U |
| Housing material |
Metal, Plastic |
| Display |
|---|
| Built-in display |
No |
| On Screen Display (OSD) |
No |
| Power |
|---|
| Power source |
AC |
| Power consumption (typical) |
3.2 W |
| Input voltage |
5.3 V |
| System requirements |
|---|
| Windows operating systems supported |
Yes |
| Linux operating systems supported |
Yes |
| Mac operating systems supported |
Yes |
| Other operating systems supported |
Yes |
| Video |
|---|
| HD type |
WUXGA |
| Maximum resolution |
1920 x 1200 pixels |
| Sustainability |
|---|
| Compliance certificates |
RoHS |
| Operational conditions |
|---|
| Operating temperature (T-T) |
0 - 50 °C |
| Storage temperature (T-T) |
-20 - 60 °C |
| Operating relative humidity (H-H) |
0 - 80% |
| Weight & dimensions |
|---|
| Width |
8.12" (206.3 mm) |
| Depth |
2.85" (72.4 mm) |
| Height |
1.73" (44 mm) |
| Weight |
14.8 oz (420 g) |
| Packaging content |
|---|
| Cables included |
KVM |
| Manual |
Yes |
| AC adapter included |
Yes |
| Other features |
|---|
| Push button |
Yes |
| Hot keys |
Yes |
| Logistics data |
|---|
| Harmonized System (HS) code |
85176200 |
