10 x NEMA 5-15R outlets, 1 x NEMA 5-15P, 120V, 15ft cord
Description

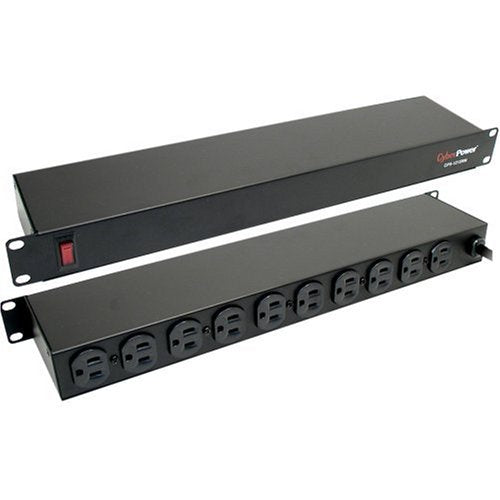

CyberPower Power Distribution Unit (PDU) provides additional outlets for managing your rackmount power needs.
This 10-outlet rack mount power distribution unit (PDU) provides 120V 15A output. It distributes power to 10 NEMA 5-15R receptacles from a single NEMA 5-15P input, with unfiltered electrical pass-through. Designed for datacenters and other electrically demanding applications, this unit has a durable metal housing and a 15-foot AC power cord. It can be mounted either horizontally or vertically, includes a cord retention tray and is ETL/RoHS certified. A 3-year warranty ensures that this PDU is free of defects in design, assembly, material or workmanship.
Specifications
| Design |
|---|
| Product colour |
Black |
| Certification |
UL, ROHS |
| Rack capacity |
1U |
| Ports & interfaces |
|---|
| Output connections |
10 x NEMA 5-15R |
| Input connection type |
NEMA 5-15P |
| I/O ports |
1 x NEMA 5-15P In
10 x NEMA 5-15R Out |
| Features |
|---|
| Cable length |
179.9" (4.57 m) |
| Certification |
UL, ROHS |
| Ergonomics |
|---|
| Cable length |
179.9" (4.57 m) |
| Power |
|---|
| Nominal input voltage |
120 V |
| Maximum current |
15 A |
| Certificates |
|---|
| Certification |
UL, ROHS |
| Operational conditions |
|---|
| Operating temperature (T-T) |
-20 - 46 °C |
| Storage temperature (T-T) |
-15 - 45 °C |
| Operating relative humidity (H-H) |
0 - 95% |
| Weight & dimensions |
|---|
| Weight |
5 lbs (2.27 kg) |
| Width |
17.2" (438.1 mm) |
| Depth |
4.75" (120.7 mm) |
| Height |
1.75" (44.5 mm) |
