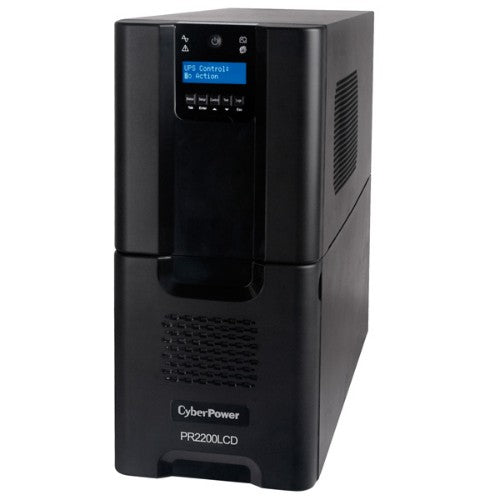

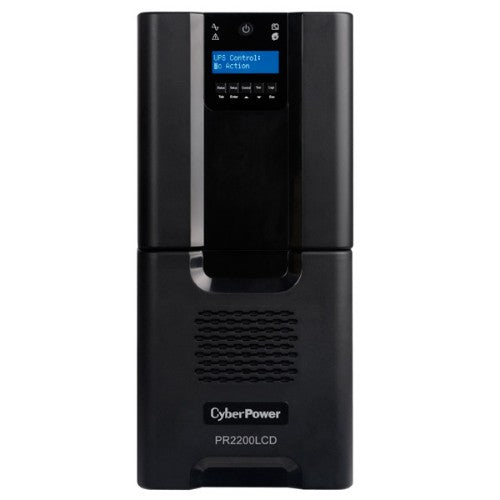

CyberPower PR2200LCD uninterruptible power supply (UPS) Line-Interactive 2.2 kVA 1980 W 10 AC outlet(s)

2200VA, 1980W, Line-Interactive, RB12170x4, 1030 Joules

Description

- 2200VA / 1980W Pure Sine Wave UPS
- Line-Interactive Topology
- Full AVR Buck/Boost & GreenPower UPS™
- Tower Form Factor
- LCD Control Panel
- Removable Display Option
- SNMP/HTTP Remote Management Option
- 10 Outlets / USB, Serial and EPO Ports
- EMI/RFI Filters
- PowerPanel Business Edition

Smart App UPS | Network and Servers

The CyberPower Smart App Sinewave PR2200LCD mini-tower uninterruptible power supply (UPS) with LCD control panel and pure sine wave output is Active PFC compatible for safeguarding mission-critical servers, telecom equipment, VoIP and internetworking hardware that require seamless pure sine wave power. Its full Automatic Voltage Regulation (AVR) boost/buck technology delivers a consistent and clean AC power, protecting connected equipment and preventing costly business interruptions. This UPS system is ENERGY STAR® qualified with patented GreenPower UPS™ Bypass circuitry to save on energy costs by reducing energy consumption and heat buildup.

The LCD control panel provides 41 different settings to check status and customize the operating settings for the PR2200LCD, plus it can be removed and mounted separately from the UPS for ease of use regardless of where the UPS is installed. Functions include menus for checking power status on (11) different parameters, (23) settings for setup and control of the UPS, (3) battery test & calibration options, and (4) selections in the Log menu. With its attached cable the LCD control panel can be removed from the UPS and relocated up to 4.5ft. away from the UPS for ease of viewing when installed in hard to reach locations.

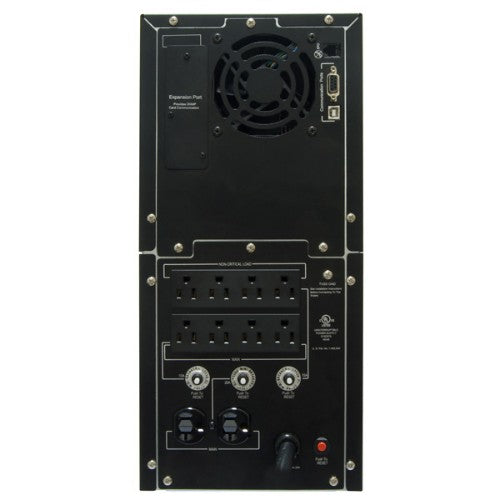

The PR2200LCD unit has a capacity of 2200VA/1980Watts, eight (8) NEMA 5-15R & (2) 5-20R receptacles and four (4) maintenance-free, user-replaceable 12V/17.0Ah batteries. This unit offers connectivity via one (1) HID USB, one (1) DB9 serial and one (1) emergency power off (EPO) port. EMI/RFI filters increase the immunity of the load to noise disturbances.

This UPS unit incorporates microprocessor-based fully digital control and includes PowerPanel® Business Edition providing the user unsurpassed flexibility and control. An optional SNMP / HTTP Remote Management adapter (RMCARD202) supports remote management and control of the PR2200LCD through a standard web browser. A Three-Year Warranty ensures that this UPS has passed our highest quality standards in design, assembly, material or workmanship and further protection is offered by a $375,000 Connected Equipment Guarantee.

Specifications

Power
Output power	1980 W
Input operation voltage (min)	75 V
Input operation voltage (max)	154 V
Output operation voltage (min)	120 V
Output operation voltage (max)	120 V
Surge energy rating	1030 J
Output power capacity	2.2 kVA
Input frequency	47/63 Hz
Battery
Battery type	RB12170
Battery technology	Sealed Lead Acid (VRLA)
Typical backup time at half load	26 min
Typical backup time at full load	8 min
Hot-swap battery	Yes
Performance
UPS topology	Line-Interactive
LED indicators	Yes
EMI/RFI noise filtering	Yes
Audible alarm(s)	Yes
Features
UPS topology	Line-Interactive
Output power	1980 W
Input operation voltage (min)	75 V
Input operation voltage (max)	154 V
Output operation voltage (min)	120 V
Output operation voltage (max)	120 V
Surge energy rating	1030 J
EMI/RFI noise filtering	Yes
Audible alarm(s)	Yes
Output power capacity	2.2 kVA
Input frequency	47/63 Hz
Ports & interfaces
AC outlets quantity	10 AC outlet(s)
AC outlet types	NEMA 5–15R, NEMA 5–20R
Power plug	NEMA L5-30P
Design
Form factor	Tower
LED indicators	Yes
Product colour	Black
Certification	UL1778, cUL CSA C22.2 No. 107.3, FCC DOC B
Display type	LCD
Operational conditions
Operating temperature (T-T)	0 - 40 °C
Operating relative humidity (H-H)	0 - 90%
Technical details
Sustainability certificates	ENERGY STAR
Certificates
Certification	UL1778, cUL CSA C22.2 No. 107.3, FCC DOC B
Sustainability
Sustainability certificates	ENERGY STAR
Other features
Battery type	RB12170
