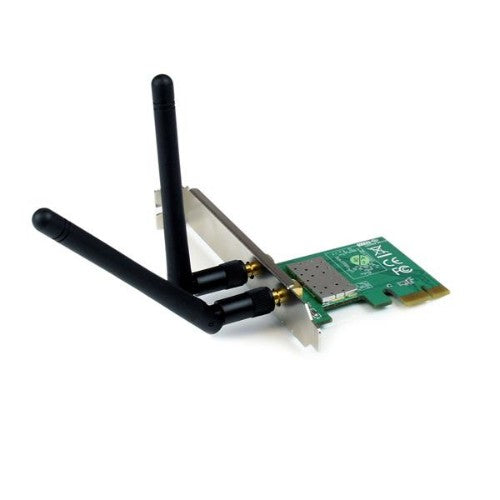

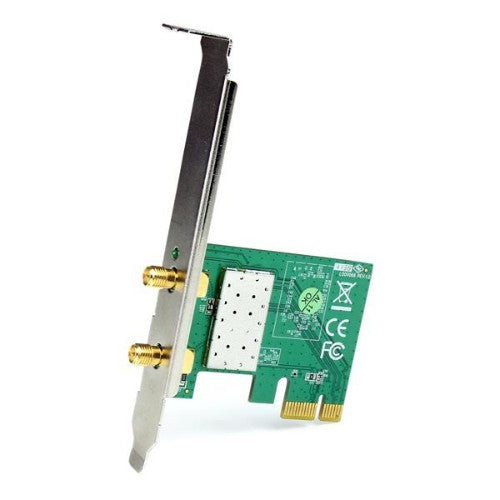

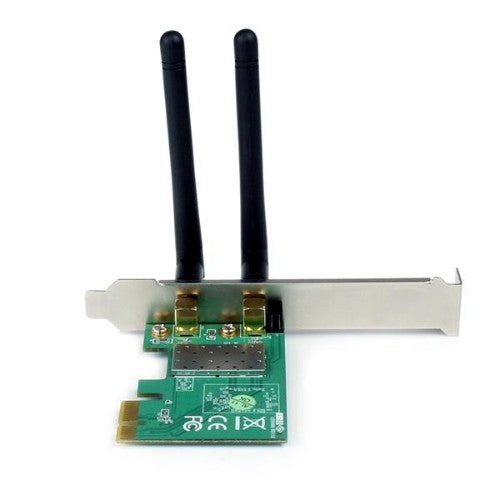

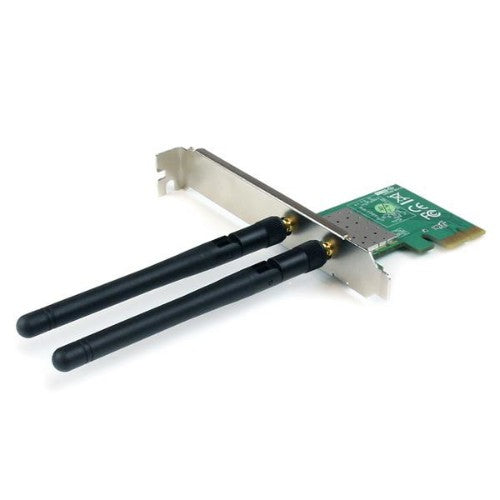

StarTech.com PEX300WN2X2 network card Internal WLAN 300 Mbit/s

StarTech.com PCI Express Wireless N Adapter - 300 Mbps PCIe 802.11 b/g/n Network Adapter Card – 2T2R 2.2 dBi - PCIe Wireless Desktop Card

Description

The PEX300WN2X2 PCI Express Wireless N Card (PCIe x1) adds high speed wireless network connectivity to almost any PCI Express-enabled desktop/workstation PC. Using a 2T2R (2 Transmitter/2 Receiver) design over the 2.4GHz frequency, this PCIe wireless card provides up to 300Mbps of data bandwidth over an 802.11n network, while improving signal reception and range.

Backward compatible with 802.11b/g networks (11/54Mbps), this WiFi N adapter offers a versatile wireless networking solution with support for standard and advanced security options such as WEP, WPA and WPA2, along with wireless Quality of Service (QoS) support and quick and easy setup through WPS.

This easy-to-install PCI Express 2.0 card is backed by StarTech.com's 2-year warranty and free lifetime technical support, making for an excellent wireless upgrade or first-time setup option.

The StarTech.com Advantage
- PCI Express 2.0 and 802.11n compliance ensure a fast, reliable wireless-N network connection, while still being able to connect to older wireless b/g networks
- Support for the latest wireless network security protocols and QoS, ensures a safe and efficient network experience

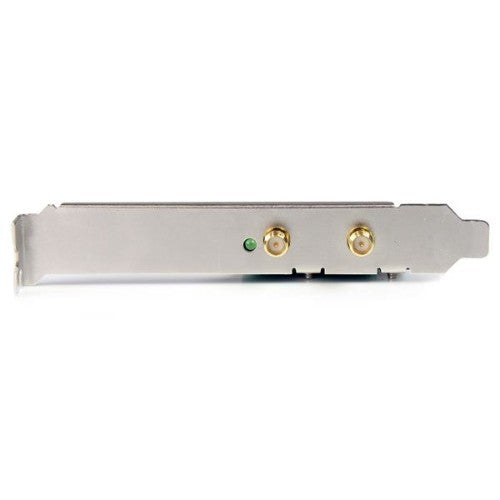

- Includes both a full and low profile/half-height bracket for installation into any sized desktop computer

Specifications

Ports & interfaces
Internal	Yes
Interface	WLAN
Host interface	PCI Express
Connectivity technology	Wireless
Bandwidth
Bandwidth note	20/40 MHz
Full duplex	Yes
Maximum data transfer rate	300 Mbit/s
Wireless LAN features
Wi-Fi band	Single-band (2.4 GHz)
Top Wi-Fi standard	Wi-Fi 4 (802.11n)
Wi-Fi standards	Wi-Fi 4 (802.11n)
Wi-Fi	Yes
WLAN data transfer rates supported	300 Mbit/s
Network
Chipset	Ralink - RT5392
Wi-Fi band	Single-band (2.4 GHz)
Top Wi-Fi standard	Wi-Fi 4 (802.11n)
Wi-Fi standards	Wi-Fi 4 (802.11n)
Wi-Fi	Yes
Security algorithms	AES, TKIP, WEP, WPA, WPA2-PSK
Networking standards	IEEE 802.11b, IEEE 802.11g, IEEE 802.11n
Modulation	CCK, DBPSK, DQPSK, DSSS, OFDM
WLAN data transfer rates supported	300 Mbit/s
Supported network protocols	CSMA/CA
Full duplex	Yes
Frequency range	2.4 - 2.484 GHz
Maximum data transfer rate	300 Mbit/s
Gain	2.2 dBi
Antenna
Antennas quantity	2
Antenna	Yes
Gain	2.2 dBi
Frequency range	2.4 - 2.484 GHz
Antenna connector type	RP-SMA
Technical details
Channel bandwidth	40 MHz
Quantity per pack	1 pc(s)
Compliance certificates	RoHS
Design
Chipset	Ralink - RT5392
Antenna	Yes
Certification	CE, FCC, REACH, TAA
Internal	Yes
LED indicators	Activity, Link
Antenna connector type	RP-SMA
Antenna design	External
Antennas quantity	2
Software
Windows operating systems supported	Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 Pro, Windows 10 Pro x64, Windows 7 Enterprise, Windows 7 Enterprise x64, Windows 7 Home Basic, Windows 7 Home Basic x64, Windows 7 Home Premium, Windows 7 Home Premium x64, Windows 7 Professional, Windows 7 Professional x64, Windows 7 Starter, Windows 7 Starter x64, Windows 7 Ultimate, Windows 7 Ultimate x64, Windows 8, Windows 8 Enterprise, Windows 8 Enterprise x64, Windows 8 Pro, Windows 8 Pro x64, Windows 8 x64, Windows 8.1, Windows 8.1 Enterprise, Windows 8.1 Enterprise x64, Windows 8.1 Pro, Windows 8.1 Pro x64, Windows 8.1 x64, Windows Vista Business, Windows Vista Business x64, Windows Vista Enterprise, Windows Vista Enterprise x64, Windows Vista Home Basic, Windows Vista Home Basic x64, Windows Vista Home Premium, Windows Vista Home Premium x64, Windows Vista Ultimate, Windows Vista Ultimate x64, Windows XP Home, Windows XP Home x64, Windows XP Professional, Windows XP Professional x64
Mac operating systems supported	Yes
Linux operating systems supported	Yes
Indication
LED indicators	Activity, Link
System requirements
Server operating systems supported	Windows Server 2003, Windows Server 2008 R2
Windows operating systems supported	Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 Pro, Windows 10 Pro x64, Windows 7 Enterprise, Windows 7 Enterprise x64, Windows 7 Home Basic, Windows 7 Home Basic x64, Windows 7 Home Premium, Windows 7 Home Premium x64, Windows 7 Professional, Windows 7 Professional x64, Windows 7 Starter, Windows 7 Starter x64, Windows 7 Ultimate, Windows 7 Ultimate x64, Windows 8, Windows 8 Enterprise, Windows 8 Enterprise x64, Windows 8 Pro, Windows 8 Pro x64, Windows 8 x64, Windows 8.1, Windows 8.1 Enterprise, Windows 8.1 Enterprise x64, Windows 8.1 Pro, Windows 8.1 Pro x64, Windows 8.1 x64, Windows Vista Business, Windows Vista Business x64, Windows Vista Enterprise, Windows Vista Enterprise x64, Windows Vista Home Basic, Windows Vista Home Basic x64, Windows Vista Home Premium, Windows Vista Home Premium x64, Windows Vista Ultimate, Windows Vista Ultimate x64, Windows XP Home, Windows XP Home x64, Windows XP Professional, Windows XP Professional x64
Mac operating systems supported	Yes
Linux operating systems supported	Yes
Operational conditions
Operating temperature (T-T)	-10 - 70 °C
Storage temperature (T-T)	-20 - 70 °C
Operating relative humidity (H-H)	5 - 95%
Weight & dimensions
Width	1.93" (49 mm)
Depth	2.95" (75 mm)
Height	0.709" (18 mm)
Weight	1.34 oz (38 g)
Package width	5.51" (140 mm)
Package depth	6.5" (165 mm)
Package height	1.38" (35 mm)
Package weight	5.57 oz (158 g)
Security
Security algorithms	AES, TKIP, WEP, WPA, WPA2-PSK
Protocols
Supported network protocols	CSMA/CA
Packaging data
Drivers included	Yes
Low-profile bracket	Yes
Package width	5.51" (140 mm)
Package depth	6.5" (165 mm)
Package height	1.38" (35 mm)
Package weight	5.57 oz (158 g)
Quantity per pack	1 pc(s)
Mounting brackets included	Yes
Manual	Yes

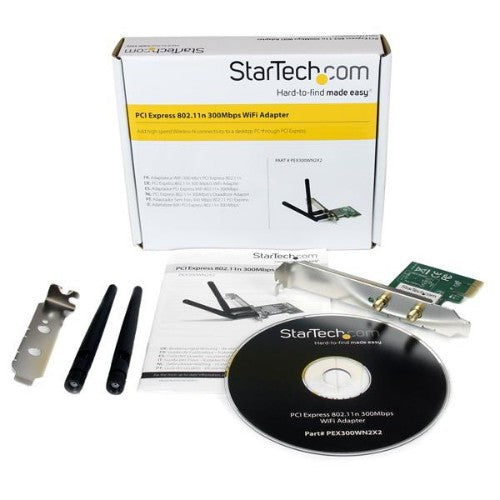

Packaging content
Mounting brackets included	Yes
Manual	Yes
Drivers included	Yes
Low-profile bracket	Yes
Performance
Server operating systems supported	Windows Server 2003, Windows Server 2008 R2
Security algorithms	AES, TKIP, WEP, WPA, WPA2-PSK
Windows operating systems supported	Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 Pro, Windows 10 Pro x64, Windows 7 Enterprise, Windows 7 Enterprise x64, Windows 7 Home Basic, Windows 7 Home Basic x64, Windows 7 Home Premium, Windows 7 Home Premium x64, Windows 7 Professional, Windows 7 Professional x64, Windows 7 Starter, Windows 7 Starter x64, Windows 7 Ultimate, Windows 7 Ultimate x64, Windows 8, Windows 8 Enterprise, Windows 8 Enterprise x64, Windows 8 Pro, Windows 8 Pro x64, Windows 8 x64, Windows 8.1, Windows 8.1 Enterprise, Windows 8.1 Enterprise x64, Windows 8.1 Pro, Windows 8.1 Pro x64, Windows 8.1 x64, Windows Vista Business, Windows Vista Business x64, Windows Vista Enterprise, Windows Vista Enterprise x64, Windows Vista Home Basic, Windows Vista Home Basic x64, Windows Vista Home Premium, Windows Vista Home Premium x64, Windows Vista Ultimate, Windows Vista Ultimate x64, Windows XP Home, Windows XP Home x64, Windows XP Professional, Windows XP Professional x64
Mac operating systems supported	Yes
Linux operating systems supported	Yes
Channel bandwidth	40 MHz
Certificates
Certification	CE, FCC, REACH, TAA
Other features
Chipset	Ralink - RT5392
Manual	Yes
Antennas quantity	2
Bandwidth note	20/40 MHz
Gain	2.2 dBi
Channel bandwidth	40 MHz
Quantity per pack	1 pc(s)
