Smart App Online, LCD, 1kVA, 0.9kW, 100-125V, 40/70Hz, 8 outlets, 2U, 50dBA, 10ft, 18kg, Black
Description

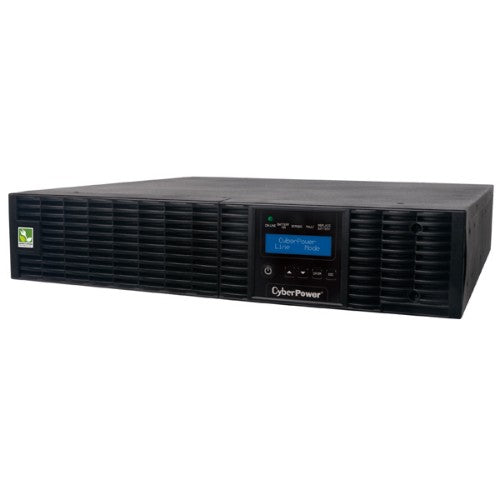

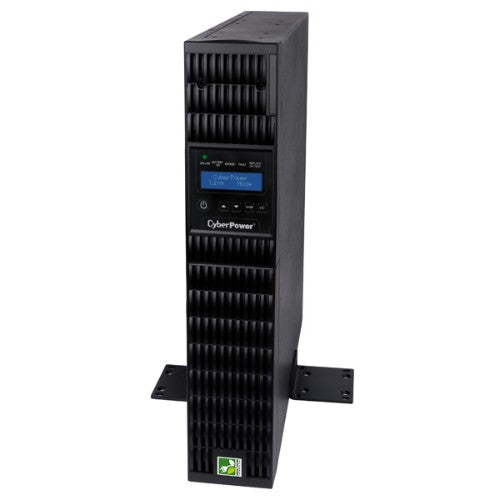

Smart App Online UPS | Network, Servers and DatacenterThe CyberPower Smart App Online OL1000RTXL2U rack/tower uninterruptible power supply (UPS) with LCD control panel and pure sine wave output safeguards mission-critical servers, data center and telecom equipment, VoIP and internetworking hardware that require seamless power correction. Its Double-Conversion topology is generator compatible and delivers consistent and clean AC power with zero transfer time, protecting connected equipment and preventing costly business interruptions. Auto-bypass insures connected equipment continues to operate seamlessly when an overload or internal fault is detected.
Configurable GreenPower UPS™ ECO Mode improves UPS efficiency to 93% and reduces electrical and cooling costs. Smart Battery Management (SBM) uses a 3 cycle charging mode to improve battery life while reducing heat being generated.
The LCD control panel provides 43 different settings to check status and customize the operating parameters for the OL1000RTXL2U, plus it can be removed and mounted separately from the UPS for ease of use regardless of where the UPS is installed. Functions include menus for checking power status on (19) different parameters, (23) settings for setup, control and testing of the UPS and (1) selection for event logging. With a DB26 cable (sold separately) the LCD control panel can be removed from the UPS and relocated up to 10ft. away from the UPS for ease of viewing when installed in hard to reach locations.
The UPS incorporates microprocessor-based fully digital control and includes PowerPanel® Business Edition providing the user unsurpassed flexibility and control. An optional SNMP/HTTP Remote Management adapter (RMCARD302) supports remote management and control of the OL1000RTXL2U through a standard web browser.

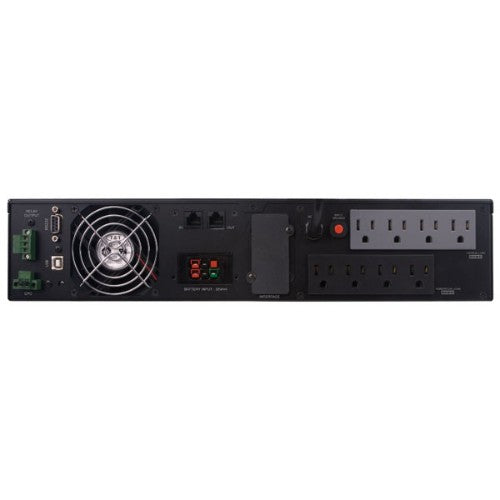

The OL1000RTXL2U unit has a capacity of 1,000VA/900Watts (0.9 power factor) that can be configured for an output of 100V, 110V, 115V, 120V and 125V +/- 2%. It features eight (8) outlets with NEMA 5-15R receptacles and maintenance-free, hot swappable, user-replaceable batteries. This unit offers connectivity via one (1) HID USB, one (1) DB9 serial and one (1) emergency power off (EPO) port. Network grade surge suppression and EMI/RFI filters increase the immunity of the load to noise disturbances. The runtimes are expandable by adding a hot swappable, user replaceable BP36V60ART2U Extended Battery Module (EBM).
Specifications
| Power |
|---|
| Output power |
900 W |
| Input operation voltage (min) |
100 V |
| Input operation voltage (max) |
125 V |
| Output operation voltage (min) |
100 V |
| Output operation voltage (max) |
125 V |
| Efficiency |
93% |
| Power factor |
0.9 |
| Output voltage Total Harmonic Distortion (THD) |
3% |
| Crest factor |
3:1 |
| Output power capacity |
1 kVA |
| Input frequency |
40/70 Hz |
| Ports & interfaces |
|---|
| Cable length |
120.1" (3.05 m) |
| AC outlets quantity |
8 AC outlet(s) |
| AC outlet types |
NEMA 5–15R |
| Power plug |
NEMA 1-15P |
| USB 2.0 ports quantity |
1 |
| Serial ports quantity |
1 |
| Modem (RJ-11) ports |
2 |
| Ethernet LAN (RJ-45) ports |
2 |
| Battery |
|---|
| Battery type |
12V/9Ah |
| Battery technology |
Sealed Lead Acid (VRLA) |
| Number of battery cells |
3 |
| Battery recharge time |
5 h |
| Typical backup time at half load |
18 min |
| Typical backup time at full load |
6 min |
| Hot-swap battery |
Yes |
| Replacement battery cartridge |
RB1290X3 |
| Performance |
|---|
| UPS topology |
Double-conversion (Online) |
| Response time |
0 ms |
| EMI/RFI noise filtering |
Yes |
| Surge protection |
Yes |
| Surge protection features |
Network |
| Power protection features |
Overload |
| Noise level |
50 dB |
| Features |
|---|
| UPS topology |
Double-conversion (Online) |
| Response time |
0 ms |
| Output power |
900 W |
| Input operation voltage (min) |
100 V |
| Input operation voltage (max) |
125 V |
| Output operation voltage (min) |
100 V |
| Output operation voltage (max) |
125 V |
| Efficiency |
93% |
| EMI/RFI noise filtering |
Yes |
| Surge protection |
Yes |
| Surge protection features |
Network |
| Power protection features |
Overload |
| Power factor |
0.9 |
| Output voltage Total Harmonic Distortion (THD) |
3% |
| Noise level |
50 dB |
| Crest factor |
3:1 |
| Output power capacity |
1 kVA |
| Input frequency |
40/70 Hz |
| Design |
|---|
| Rack capacity |
2U |
| Form factor |
Rackmount/Tower |
| Product colour |
Black |
| Certification |
UL1778, CSA C22.2 NO.107.3-05, FCC DOC A |
| Cable length |
120.1" (3.05 m) |
| Housing material |
Steel |
| Display type |
LCD |
| Operational conditions |
|---|
| Operating temperature (T-T) |
0 - 40 °C |
| Storage temperature (T-T) |
-15 - 45 °C |
| Operating relative humidity (H-H) |
0 - 90% |
| Non-operating altitude |
0 - 590551.2" (0 - 15000 m) |
| Technical details |
|---|
| Compliance certificates |
RoHS |
| Packaging data |
|---|
| Package dimensions (WxDxH) |
21.7 x 23.2 x 9.45" (550 x 590 x 240 mm) |
| Package weight |
53.8 lbs (24.4 kg) |
| Certificates |
|---|
| Certification |
UL1778, CSA C22.2 NO.107.3-05, FCC DOC A |
| Compliance certificates |
RoHS |
| Weight & dimensions |
|---|
| Weight |
39.7 lbs (18 kg) |
| Width |
17" (433 mm) |
| Package weight |
53.8 lbs (24.4 kg) |
| Height |
3.46" (88 mm) |
| Depth |
16.9" (430 mm) |
| Other features |
|---|
| Battery type |
12V/9Ah |
| Package dimensions (WxDxH) |
21.7 x 23.2 x 9.45" (550 x 590 x 240 mm) |
