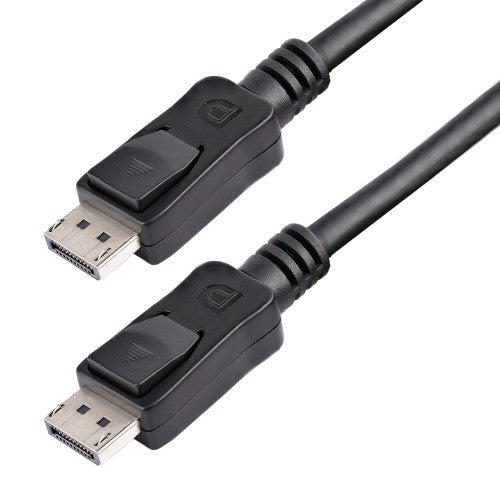

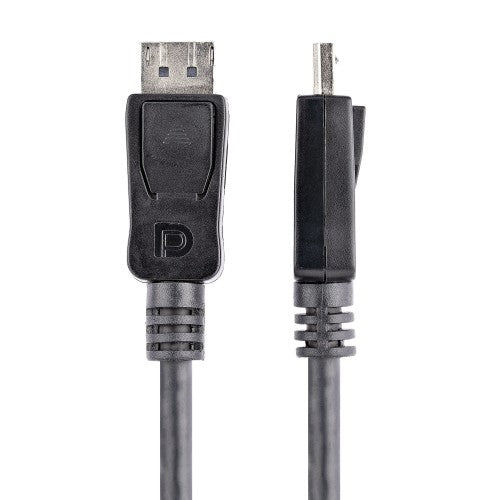

StarTech.com 10ft (3m) DisplayPort 1.2 Cable - 4K x 2K Ultra HD VESA Certified DisplayPort Cable - DP to DP Cable for Monitor - DP Video/Display Cord - Latching DP Connectors (DISPLPORT10L)
Key Features
- HIGH PERFORMANCE CABLE: This 10ft (3m) VESA Certified DisplayPort v1.2 cable supports 4K x 2K (3840x2400p 60Hz), 21.6 Gbps bandwidth, HBR2, 8Ch Audio, Multi-Stream Transport (MST), GTC for precise audio channel timing & 3D Stereo (2560x1600p 120Hz)

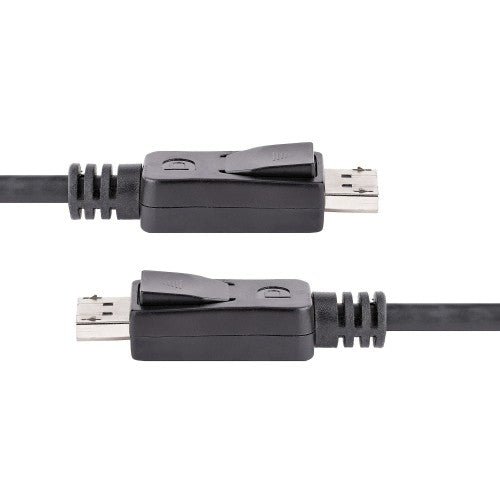

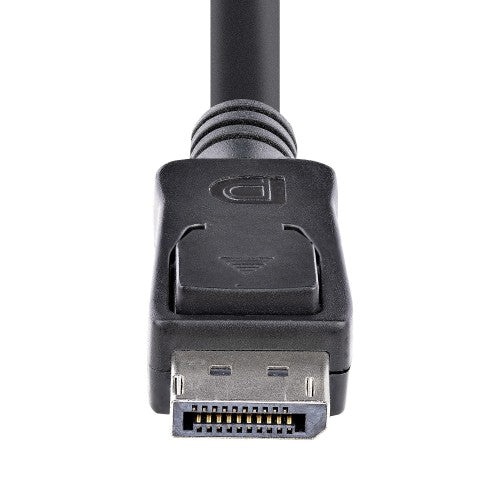

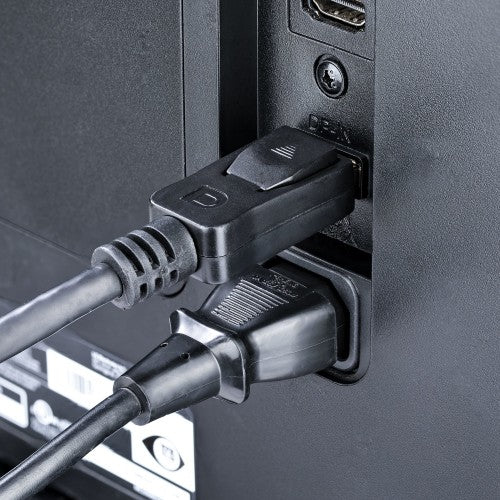

- RELIABLE DESIGN: Durable ABS connectors with flexible PVC strain relief & jacket prevents fraying/damage due to bending or rough usage; Metal connector sub-structure provides EMI shielding; Latching DP connectors prevent accidental disconnection
- QUALITY CONSTRUCTION: 28AWG wire with gold-plated connectors for improved signal integrity and reliability; Superior EMI shielding with Al-Mylar foil and copper braid provides higher quality video and audio; Backwards compatible with DP 1.1
- APPLICATIONS: Ideal for home/offices/boardrooms/conference rooms/classrooms; works with your professional workstations with FirePro™ S9000/7000, W8100/7100/5100 or R5000 graphic cards; Use with 1080p/UHD/4K monitors, projector or large display
- SPECS: 10 ft (3 m) / Black / DisplayPort v1.2 / DP Latching Male to Male / 28 AWG / PVC cable jacket, ABS connector shell / Shield: Al-Mylar foil with Braid / Protocols: HBR 2, MST, GTC / Lifetime Warranty
Description
Create high-resolution 4K x 2K connections with HBR2 support between your DisplayPort equipped devices
This DisplayPort cable provides a secure connection between your DisplayPort equipped devices and is capable of providing higher performance than either HDMI® or dual-link DVI.
The DP cable supports high resolutions of up to 4K x 2K (4096 x 2160, 60Hz) with a maximum HBR2 bandwidth of 21.6Gbps, as well as optional audio support. The cable also supports Multi-Stream Transport (MST) for daisy chaining multiple monitors.
The 10-foot cable is DisplayPort (VESA) certified to support DP 1.2 specifications and ensure a high-quality, reliable connection for all of your DisplayPort devices.
The DISPLPORT10L is backed by a StarTech.com lifetime warranty for guaranteed reliability and ensures that digitally protected content is displayed properly, with both HDCP and DPCP capability.
The StarTech.com Advantage
Specifications
| Features |
|---|
| Cable shielding |
Aluminum mylar foil |
| Latching connectors |
Yes |
| Cable rating |
CMG (CM) |
| Number of conductors |
19 |
| DisplayPort Content Protection (DPCP) |
Yes |
| Product colour |
Black |
| Cable length |
118.1" (3 m) |
| Connector 1 |
DisplayPort |
| Connector 2 |
DisplayPort |
| Connector 1 gender |
Male |
| Connector 2 gender |
Male |
| Connector contacts plating |
Nickel |
| Jacket material |
Polyvinyl chloride (PVC) |
| AWG wire size |
28 |
| DisplayPort version |
1.2 |
| Bandwidth |
21600 MB/s |
| Maximum resolution |
3840 x 2400 pixels |
| Supported graphics resolutions |
3840 x 2400, 2560 x 1600 (WQXGA) |
| HDCP |
Yes |
| Plug and Play |
Yes |
| Maximum refresh rate |
120 Hz |
| Multi-Stream Transport (MST) |
Yes |
| Connector 1 form factor |
Straight |
| Connector 2 form factor |
Straight |
| Certificates |
|---|
| Compliance certificates |
RoHS |
| Weight & dimensions |
|---|
| Cable diameter |
0.287" (7.3 mm) |
| Weight |
7.41 oz (210 g) |
| Package width |
7.87" (200 mm) |
| Package depth |
8.66" (220 mm) |
| Package height |
1.34" (34 mm) |
| Package weight |
7.58 oz (215 g) |
| Packaging data |
|---|
| Cable diameter |
0.287" (7.3 mm) |
| Weight |
7.41 oz (210 g) |
| Package width |
7.87" (200 mm) |
| Package depth |
8.66" (220 mm) |
| Package height |
1.34" (34 mm) |
| Package weight |
7.58 oz (215 g) |
| Quantity per pack |
1 pc(s) |
| Packaging content |
|---|
| Quantity per pack |
1 pc(s) |
| Technical details |
|---|
| Harmonized System (HS) code |
84733080 |
| Compliance certificates |
RoHS |
| Logistics data |
|---|
| Products per master (outer) case |
50 pc(s) |
| Master (outer) case width |
13" (330 mm) |
| Master (outer) case length |
19.7" (500 mm) |
| Master (outer) case height |
11" (280 mm) |
| Harmonized System (HS) code |
84733080 |
