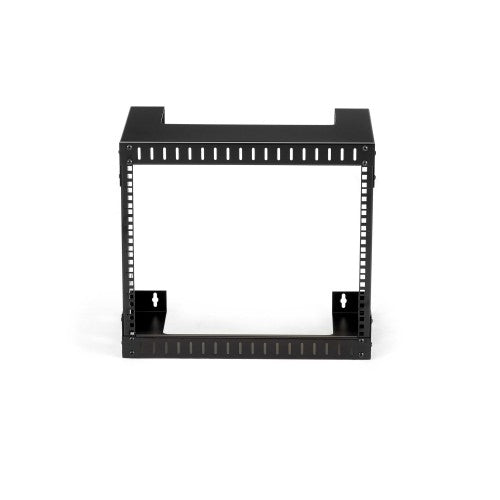

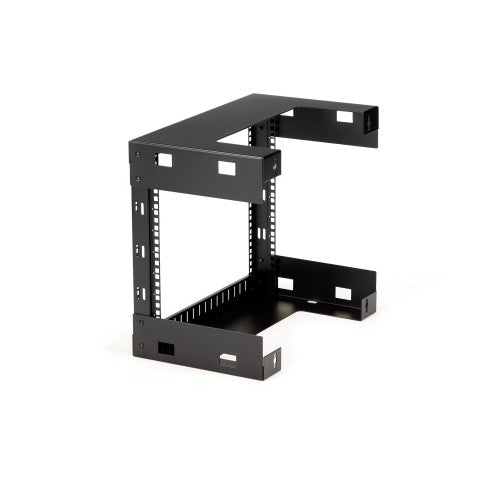

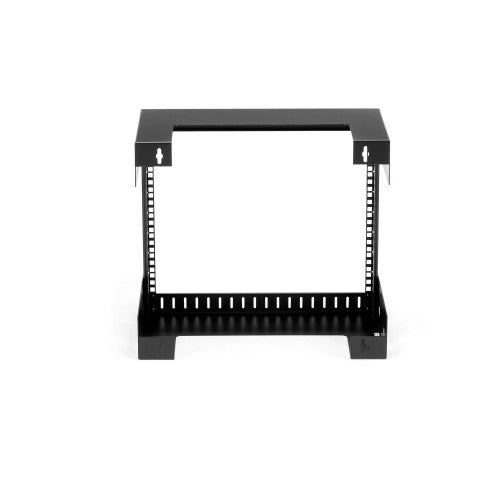

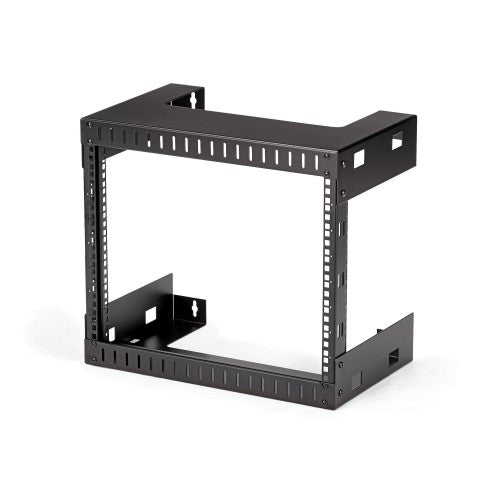

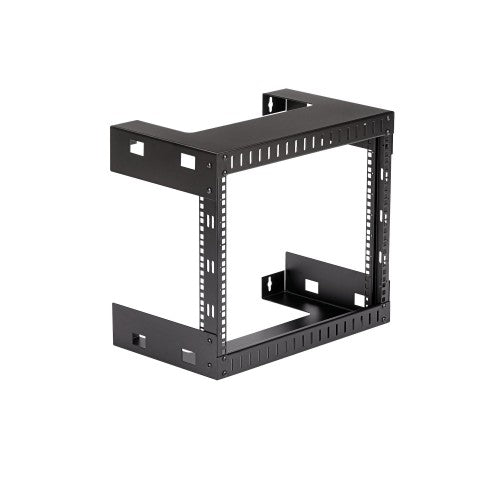

StarTech.com 8U 19" Wall Mount Network Rack - 12" Deep 2 Post Open Frame Server Room Rack for Data/AV/IT/Computer Equipment/Patch Panel with Cage Nuts & Screws 135lb Capacity, Black (RK812WALLO)
Key Features
- STURDY & CONVENIENT: 8U 19" Open Frame wall mount network rack with 12" mounting depth is EIA/ECA-310 compatible & supports like patch panels, shelves and unmanaged switches
- HEAVY DUTY: This heavy duty 2 post open frame rack supports unobstructed airflow & is easy to install with a durable design made from SPCC cold-rolled steel with support for up to 135lbs of equipment
- EASY ASSEMBLY: The rack ships flat packed with ISTA-6 certified packaging to ensure complete and undamaged delivery and also features comprehensive assembly instructions

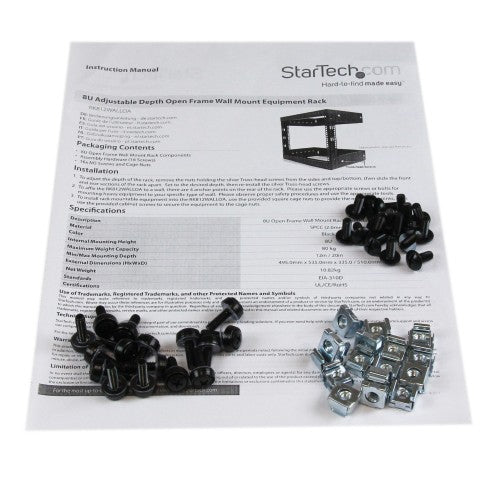

- ACCESSORIES INCLUDED: The wall mount server room/ computer/communication/AV/IT equipment rack includes a complete set of screws and cage nuts to securely mount all of your equipment in the rack
- STARTECH.COM ADVANTAGE: IT professionals’ choice for over 30 years; our 2-post wall mount network racks backed for life by StarTech.com, including free 24/5 North America based multi-lingual tech support
Description

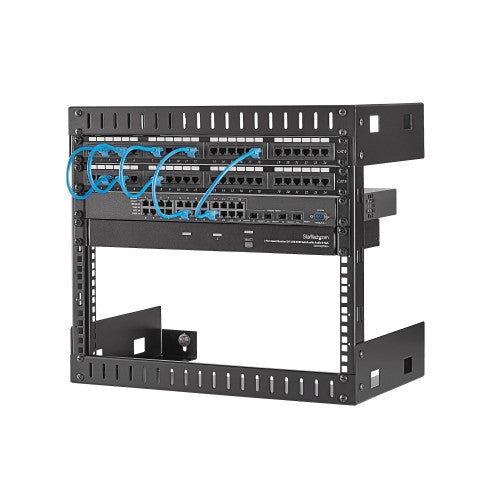

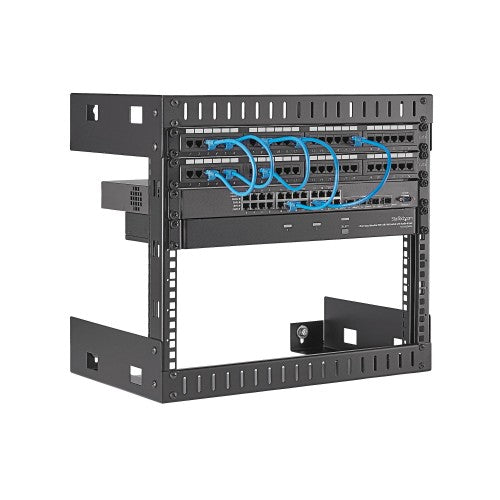

Mount your server or networking equipment using this 8U wall mount rack
The RK812WALLO 8U Open Frame Wall Mount Equipment Rack (12in Depth) is a high quality, low cost relay rack that is easy to assemble and install into any environment. The rack can be wallmounted or installed as a free standing storage solution. This TAA compliant product adheres to the requirements of the US Federal Trade Agreements Act (TAA), allowing government GSA Schedule purchases.
Able to accommodate common networking, audio-video and telecom equipment, the open rack offers a depth of 12in; the wall mounts are positioned 16in apart (center to center), making it suitable for mounting on virtually any wall surface, based on North American wall frame stud spacing standards.
This 8U rack can be mounted to the wall in a server room, office, or above a doorway, expanding your workspace and keeping your equipment easily accessible.
Backed by a StarTech.com lifetime warranty.
The StarTech.com Advantage
Specifications
| Weight & dimensions |
|---|
| Package depth |
25.6" (650 mm) |
| Package width |
21.8" (554 mm) |
| Package height |
4.09" (104 mm) |
| Package weight |
18.1 lbs (8.2 kg) |
| Inner width |
19.7" (50 cm) |
| Inner depth |
11.7" (29.8 cm) |
| Inner height |
14.1" (35.7 cm) |
| Mounting depth (max) |
12" (30.5 cm) |
| Width |
19.8" (503 mm) |
| Depth |
11.9" (303 mm) |
| Height |
17.8" (451 mm) |
| Weight |
15.9 lbs (7.2 kg) |
| Maximum weight capacity |
176.4 lbs (80 kg) |
| Packaging content |
|---|
| Manual |
Yes |
| Mounting kit |
Yes |
| Nuts included |
Yes |
| Number of nuts |
32 |
| Screws included |
Yes |
| Number of screws |
48 |
| Features |
|---|
| Number of fans |
0 fan(s) |
| Frame type |
Open |
| Product design |
2-post |
| Rack capacity |
8U |
| Castor wheels |
No |
| Adjustable mounting rails |
No |
| Cable management |
No |
| Mounting hole shape |
Square |
| Type |
Wall mounted rack |
| Maximum weight capacity |
176.4 lbs (80 kg) |
| Material |
Steel |
| Product colour |
Black |
| Certification |
RoHS, CE, UL |
| Packaging data |
|---|
| Manual |
Yes |
| Mounting kit |
Yes |
| Nuts included |
Yes |
| Number of nuts |
32 |
| Package depth |
25.6" (650 mm) |
| Package width |
21.8" (554 mm) |
| Package height |
4.09" (104 mm) |
| Package weight |
18.1 lbs (8.2 kg) |
| Screws included |
Yes |
| Number of screws |
48 |
| Technical details |
|---|
| Package width |
21.8" (554 mm) |
| Package height |
4.09" (104 mm) |
| Type |
Wall mounted rack |
| Compliance industry standards |
EIA-310-D, EIA RS310-C |
| Harmonized System (HS) code |
85381000 |
| Rack capacity |
8U |
| Colour |
|---|
| Product colour |
Black |
| Certificates |
|---|
| Certification |
RoHS, CE, UL |
| Material |
|---|
| Material |
Steel |
| Logistics data |
|---|
| Master (outer) case width |
21.8" (554 mm) |
| Master (outer) case length |
25.6" (650 mm) |
| Master (outer) case height |
4.09" (104 mm) |
| Products per master (outer) case |
1 pc(s) |
| Harmonized System (HS) code |
85381000 |
| Other features |
|---|
| Compliance industry standards |
EIA-310-D, EIA RS310-C |
