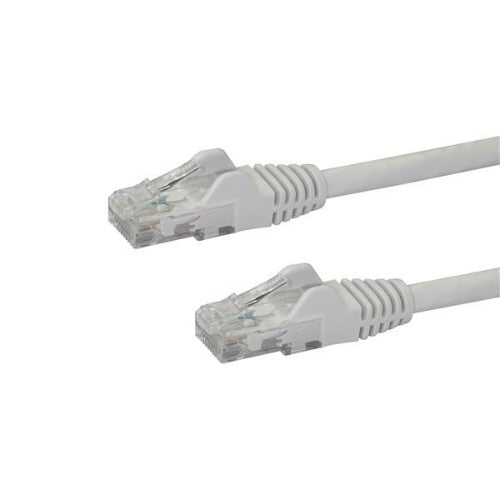

StarTech 100ft CAT6 Ethernet Cable - White CAT 6 Gigabit Ethernet Wire -250Mhz 100W PoE++ RJ45 UTP Category 6 Network Patch Cord Snagless (N6PATCH100WH)
Key Features
- Colored hoods for departmental color coding
- Molded strain relief prevents the cable from being bent at sharp angles at the RJ45 connector, to minimize the stress at the plug termination point
- HIGH PERFORMANCE CAT6 ETHERNET CABLE: 100% copper for error-free Multi Gigabit 1/2.5/5Gbps connections; 10Gbps up to 160'; Individually Tested to comply w/ANSI/TIA-568-2.D Category 6
- POE SUPPORT: 24 AWG stranded copper conductors & UL Rated Wiring (E132276-A) supports up to 100W for PoE devices like VOIP phone & security systems; IEEE 802.3bt & DTE power compliance reduces cable heating
- QUALITY CONSTRUCTION: UL certified wire; 50-micron gold-plated connectors prevent rust/corrosion to avoid costly network downtime; High quality PVC jacket resists bending or fraying damage
- EASY INSTALLATION: 100 foot snagless patch cord for easy installation & flexible disconnection in wiring conduits; Compatible w/Cat5e & earlier standards; Molded boots available for constrained spaces
- SPECS: Length: 100ft (30.5m) / Color: White / 250 MHz Rated / Structure: 4 Pair UTP / RJ45 / Jacket: PVC / Wire Gauge: 24 AWG Copper / Wiring: ANSI/T568B/ Warranty: Lifetime
Description
Make Power-over-Ethernet-capable Gigabit network connections
This 100-foot Cat6 cable meets or exceeds all Category 6 cable specifications to ensure reliable Gigabit network connections. Plus, the cable features a durable white PVC jacket that enables you to color code your network cable runs as needed.

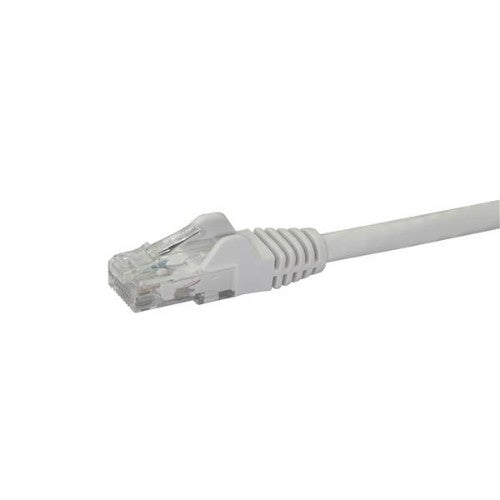

Snagless RJ45 clips help protect your network connections
For easier cable runs, the snagless connectors protect the cable’s RJ45 clips during installation, making them less likely to snag or break. This ensures a sturdy connection by preventing the cable from becoming loose from the port.
The cable features molded boots that offer connector strain relief, by stopping the RJ45 connector termination points from bending at sharp angles, and reducing the risk of damage to the cable, which could decrease network performance.
100% copper for outstanding value
Get the highest value for your cable investment with our Cat 6 cables, each one manufactured using high-quality copper conductors.
24-gauge wire for high-performance network connection
Ensure high-performance capability for your demanding Ethernet applications, such as Power-over-Ethernet, using cables that include 24 AWG copper.
50-micron gold connectors provide peak conductivity
Rely on our RJ45 connectors to deliver optimum conductivity while eliminating signal loss due to oxidation or corrosion.
The N6PATCH100WH is backed by StarTech.com’s lifetime warranty for guaranteed reliability.
Specifications
| Features |
|---|
| Product colour |
White |
| Cable rating |
CMG (CM) |
| Snagless cable boot |
Yes |
| Conductor material |
Copper |
| Frequency |
650 MHz |
| AWG wire size |
24 |
| Plug and Play |
Yes |
| Cable standard |
Cat6 |
| Cable shielding |
U/UTP (UTP) |
| Connector 1 |
RJ-45 |
| Connector 2 |
RJ-45 |
| Connector contacts plating |
Gold |
| Cabling technology |
10/100/1000Base-T(X) |
| Data transfer rate |
1000 Mbit/s |
| Jacket material |
Polyvinyl chloride (PVC) |
| Conductor type |
Stranded |
| Cable length |
1200.8" (30.5 m) |
| Ethernet interface type |
Gigabit Ethernet |
| Power over Ethernet (PoE) |
Yes |
| Connector 2 gender |
Male |
| Connector 1 gender |
Male |
| Harmonized System (HS) code |
84733080 |
| Certificates |
|---|
| Compliance certificates |
RoHS |
| Weight & dimensions |
|---|
| Weight |
2.87 lbs (1.3 kg) |
| Packaging content |
|---|
| Quantity per pack |
1 pc(s) |
| Packaging data |
|---|
| Package width |
10" (255 mm) |
| Package depth |
13" (330 mm) |
| Package height |
1.89" (48 mm) |
| Package weight |
2.87 lbs (1.3 kg) |
| Quantity per pack |
1 pc(s) |
| Technical details |
|---|
| Product colour |
White |
| Plug and Play |
Yes |
| Cable standard |
Cat6 |
| Cable shielding |
U/UTP (UTP) |
| Connector 1 |
RJ-45 |
| Connector 2 |
RJ-45 |
| Connector contacts plating |
Gold |
| Cabling technology |
10/100/1000Base-T(X) |
| Data transfer rate |
1000 Mbit/s |
| Jacket material |
Polyvinyl chloride (PVC) |
| Conductor type |
Stranded |
| Cable length |
1200.8" (30.5 m) |
| Cable rating |
CMG (CM) |
| Compliance certificates |
RoHS |
| Logistics data |
|---|
| Products per master (outer) case |
16 pc(s) |
| Master (outer) case width |
14.9" (378 mm) |
| Master (outer) case length |
17.1" (434 mm) |
| Master (outer) case height |
10.6" (270 mm) |
| Harmonized System (HS) code |
84733080 |
