StarTech.com 4 Port DisplayPort KVM Switch w/ Audio - USB, Keyboard, Video, Mouse, Computer Switch Box for 2560x1600 DP Monitor (SV431DPUA)
Description
Share keyboard, mouse, and DisplayPort display between four HD multimedia systems
The SV431DPUA 4 Port USB DisplayPort KVM Switch with Audio combines next generation display standards with seamless KVM control of up to 4 connected PC or Mac computers.
Featuring DisplayPort resolutions of 2560x1600 @60Hz, as well as offering both 7.1 HD digital audio (with supporting displays and sources) and separate 3.5mm stereo audio support. An integrated USB 2.0 hub allows you to share 2 additional peripherals among attached computers as if they were directly connected.
Suitable for high quality static imaging applications such as health care (MRI, X-ray diagnostics, etc.), a maximum resolution of 3840x2400 is supported at reduced refresh rates.

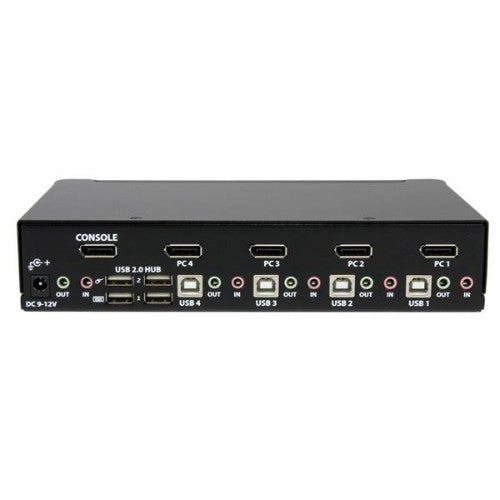

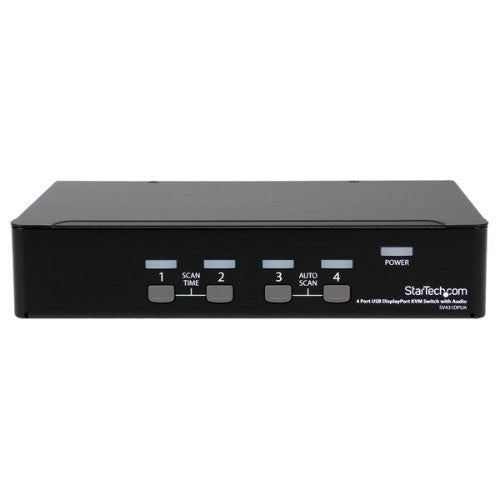

A simple yet comprehensive solution, the 4-port KVM features both front-panel push-button and hotkey switching, and offers a small form factor with rear connection ports, to minimize workspace disruptions.
Backed by a StarTech.com 3-year warranty and free lifetime technical support.
Rackmount your KVM switch
If you’d like to mount this KVM switch to your server rack, StarTech.com offers a 1U Rackmount Bracket (sold separately) that turns this KVM into a rackmountable KVM.
The StarTech.com Advantage
- USB peripheral sharing using the integrated hub eliminates the expense of duplicate devices (printers, scanners, etc.)
- Compatible with Mini-DisplayPort adapters, making it suitable for Apple Macbook connectivity
- Support for digital DisplayPort 7.1 HD audio or separate 3.5mm analog audio connections for added versatility
Specifications

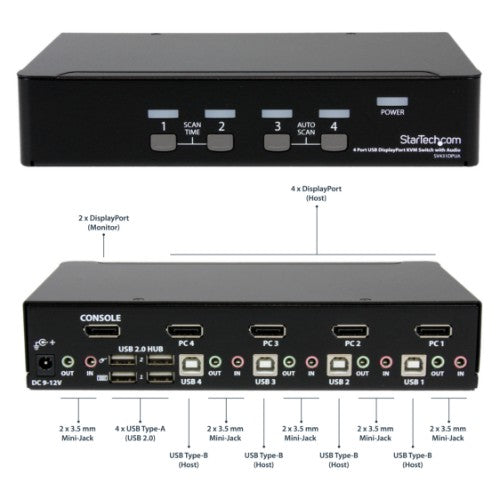

| Ports & interfaces |
|---|
| Console USB ports quantity |
4 |
| Console ports |
DisplayPort, 3.5mm headphone, 3.5mm mic, USB A |
| Number of microphone inputs |
5 |
| Number of computers controlled |
4 |
| Keyboard port type |
USB |
| Mouse port type |
USB |
| Video port type |
DisplayPort |
| Audio connections |
Yes |
| Headphone outputs |
5 |
| DC-in jack |
Yes |
| USB hub |
Yes |
| Performance |
|---|
| DDC2B support |
Yes |
| Daisy chain |
No |
| Hot-Plug support |
Yes |
| Plug and Play |
Yes |
| Maximum resolution |
3840 x 2400 pixels |
| Number of users |
1 user(s) |
| Maximum digital resolution |
2560 x 1600 pixels |
| Audio channels |
7.1 |
| Technical details |
|---|
| Product colour |
Black |
| Hot-Plug support |
Yes |
| Plug and Play |
Yes |
| Push button |
Yes |
| On Screen Display (OSD) |
No |
| Number of users |
1 user(s) |
| LED indicators |
Yes |
| Hot keys |
Yes |
| IP control |
No |
| Audio support |
Yes |
| USB hub |
Yes |
| Compliance certificates |
RoHS |
| Design |
|---|
| Mean time between failures (MTBF) |
136000 h |
| Product colour |
Black |
| Push button |
Yes |
| LED indicators |
Yes |
| Hot keys |
Yes |
| Certification |
CE, FCC, UL, TAA, REACH |
| Housing material |
Steel |
| Display |
|---|
| Built-in display |
No |
| On Screen Display (OSD) |
No |
| Power |
|---|
| Input current |
0.8 A |
| Output current |
1.5 A |
| Power plug type |
Type M |
| Compatible power plug types |
AU, EU, UK, US |
| Output voltage |
12 V |
| External power adapter |
Yes |
| Input voltage |
100 - 240 V |
| Video |
|---|
| Maximum resolution |
3840 x 2400 pixels |
| Maximum digital resolution |
2560 x 1600 pixels |
| Sustainability |
|---|
| Compliance certificates |
RoHS |
| Operational conditions |
|---|
| Operating temperature (T-T) |
0 - 40 °C |
| Storage temperature (T-T) |
-20 - 60 °C |
| Operating relative humidity (H-H) |
0 - 80% |

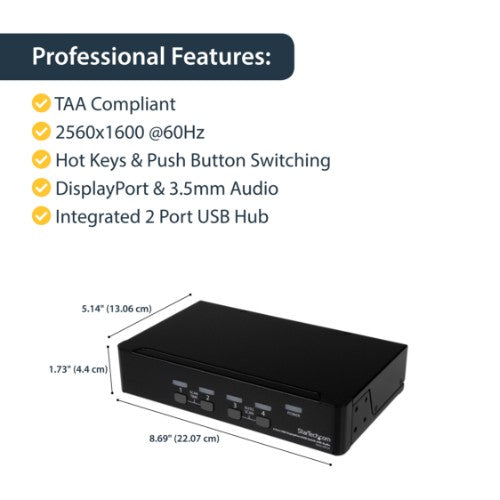

| Weight & dimensions |
|---|
| Width |
8.7" (221 mm) |
| Depth |
5.14" (130.6 mm) |
| Height |
1.73" (44 mm) |
| Weight |
2.2 lbs (1 kg) |
| Package width |
8.43" (214 mm) |
| Package depth |
16.2" (411 mm) |
| Package height |
3.43" (87 mm) |
| Package weight |
3.53 lbs (1.6 kg) |
| Packaging data |
|---|
| Package width |
8.43" (214 mm) |
| Package depth |
16.2" (411 mm) |
| Package height |
3.43" (87 mm) |
| Package weight |
3.53 lbs (1.6 kg) |

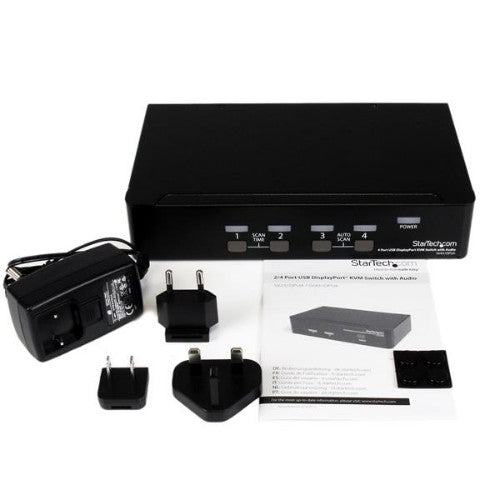

| Packaging content |
|---|
| Rubber feet |
Yes |
| Manual |
Yes |
| AC adapter included |
Yes |
| Certificates |
|---|
| Certification |
CE, FCC, UL, TAA, REACH |
| Other features |
|---|
| IP control |
No |
| Audio support |
Yes |
| Push button |
Yes |
| Hot keys |
Yes |
| Logistics data |
|---|
| Harmonized System (HS) code |
85176200 |
